MSTP Sample Configurations
The running-configurations support the topology shown in the following illustration.
The configurations are from Dell Networking OS systems.

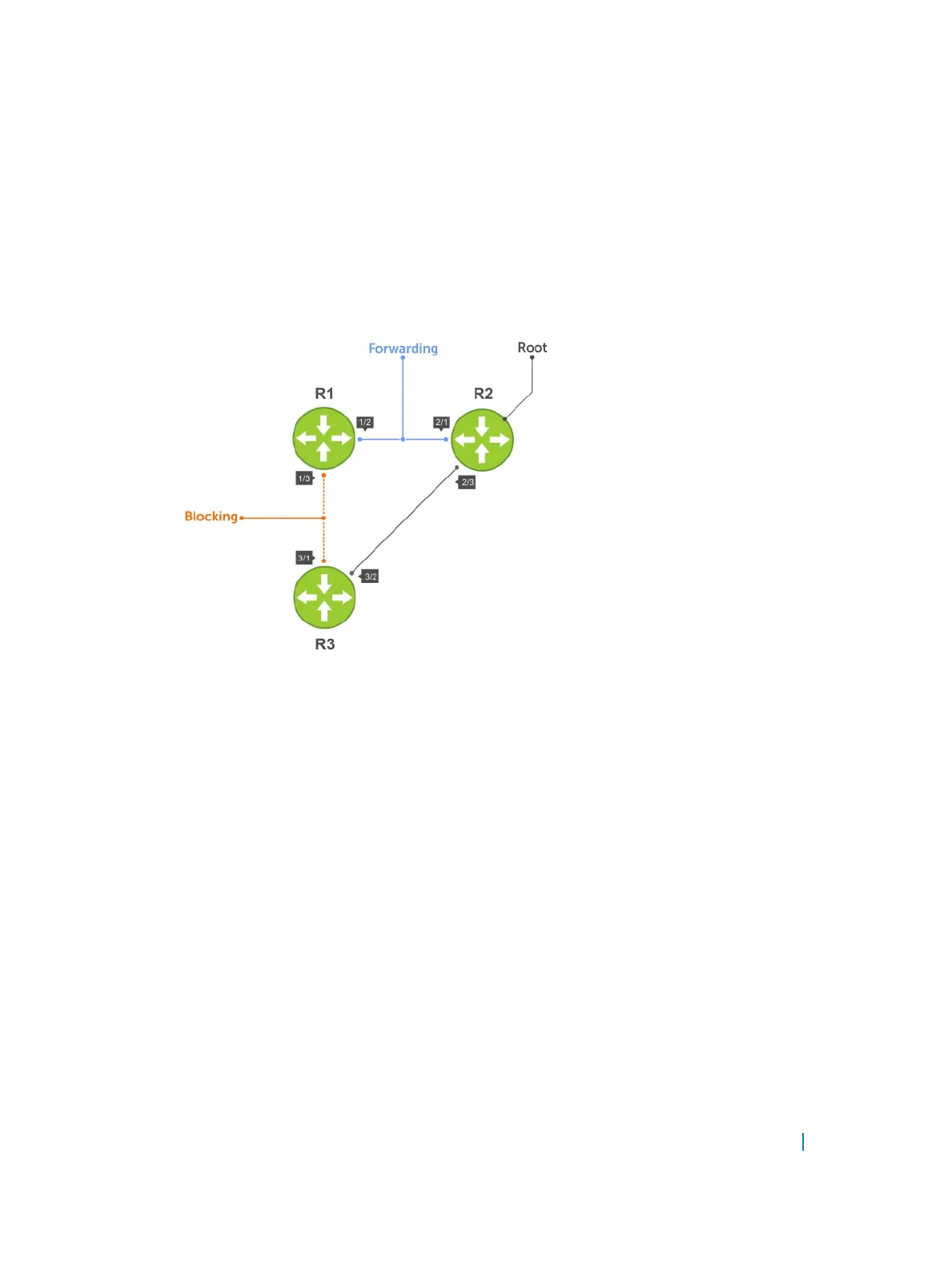

Figure 96. MSTP with Three VLANs Mapped to Two Spanning Tree Instances
Router 1 Running-Configuration
This example uses the following steps:
1 Enable MSTP globally and set the region name and revision map MSTP instances to the VLANs.
2 Assign Layer-2 interfaces to the MSTP topology.
3 Create VLANs mapped to MSTP instances tag interfaces to the VLANs.
(Step 1)
protocol spanning-tree mstp
no disable
name Tahiti
revision 123
MSTI 1 VLAN 100
MSTI 2 VLAN 200,300
!
(Step 2)
interface TenGigabitEthernet 1/21
no ip address
switchport
no shutdown
!
