Influencing PVST+ Root Selection
As shown in the previous per-VLAN spanning tree illustration, all VLANs use the same forwarding topology
because R2 is elected the root, and all TenGigabitEthernet ports have the same cost.
The following per-VLAN spanning tree illustration changes the bridge priority of each bridge so that a
different forwarding topology is generated for each VLAN. This behavior demonstrates how you can use PVST
+ to achieve load balancing.

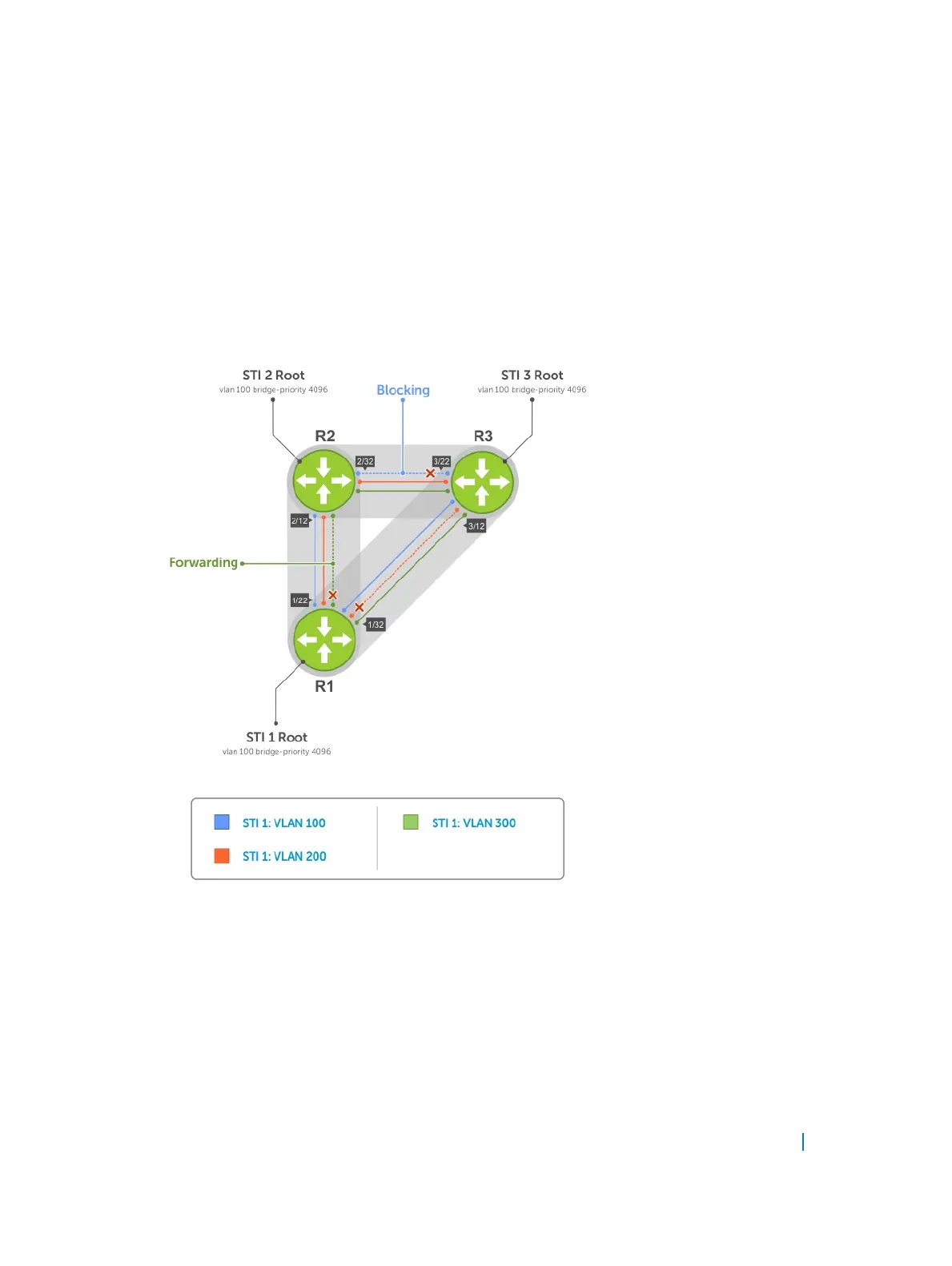

Figure 110. Load Balancing with PVST+
The bridge with the bridge value for bridge priority is elected root. Because all bridges use the default priority
(until configured otherwise), the lowest MAC address is used as a tie-breaker. To increase the likelihood that a
bridge is selected as the STP root, assign bridges a low non-default value for bridge priority.
To assign a bridge priority, use the following command.
• Assign a bridge priority.
PROTOCOL PVST mode
Per-VLAN Spanning Tree Plus (PVST+) 824
