FRRP groups. Switch R3 has two instances of FRRP running on it: one for each ring. The example topology
that follows shows R3 assuming the role of a Transit node for both FRRP 101 and FRRP 202.

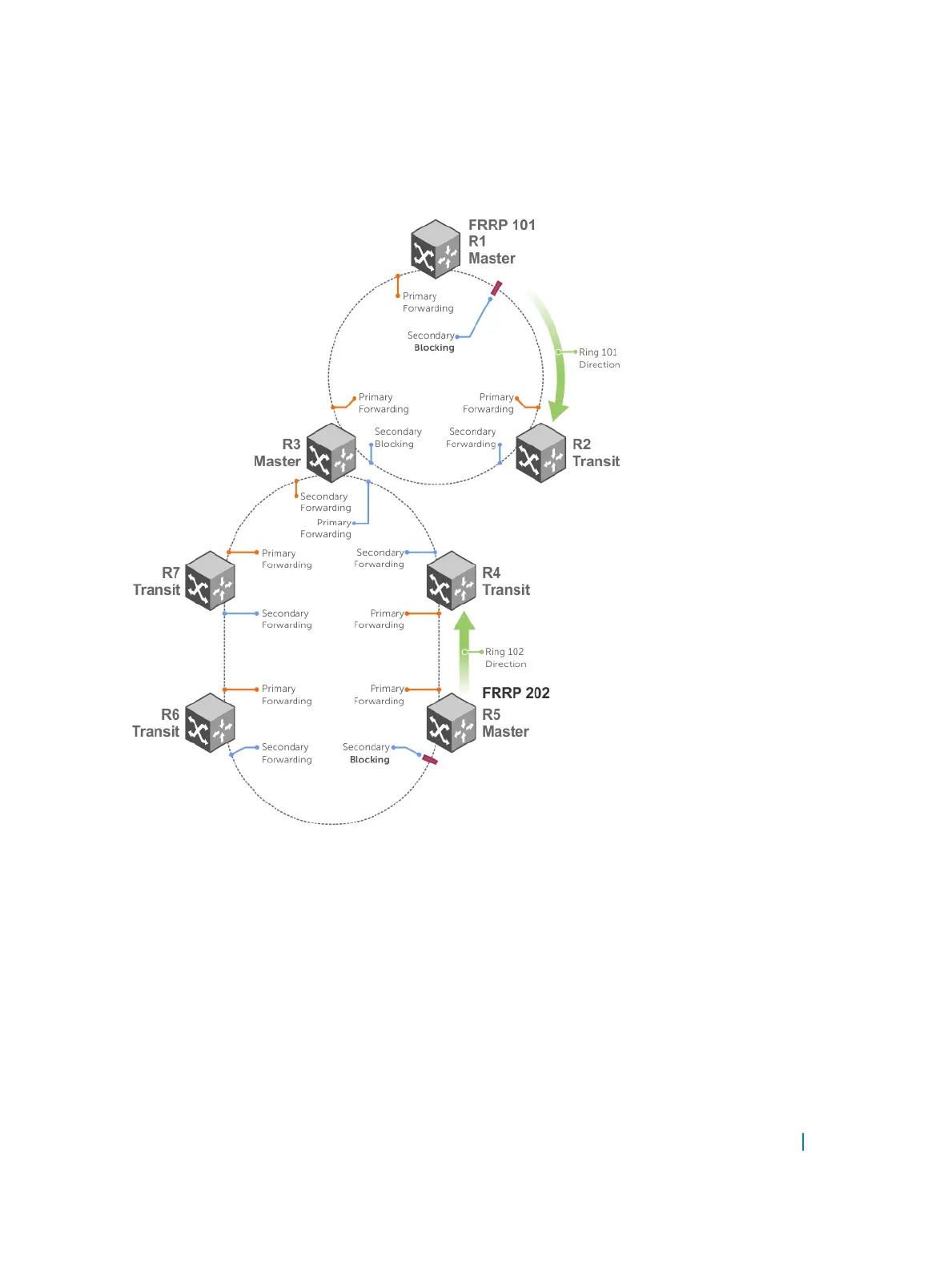

Figure 45. Example of Multiple Rings Connected by Single Switch
Important FRRP Points
FRRP provides a convergence time that can generally range between 150ms and 1500ms for Layer 2
networks.
The Master node originates a high-speed frame that circulates around the ring. This frame, appropriately, sets
up or breaks down the ring.
• The Master node transmits ring status check frames at specified intervals.
• You can run multiple physical rings on the same switch.
Force10 Resilient Ring Protocol (FRRP) 402

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
