Data Center Bridging in a Traffic Flow

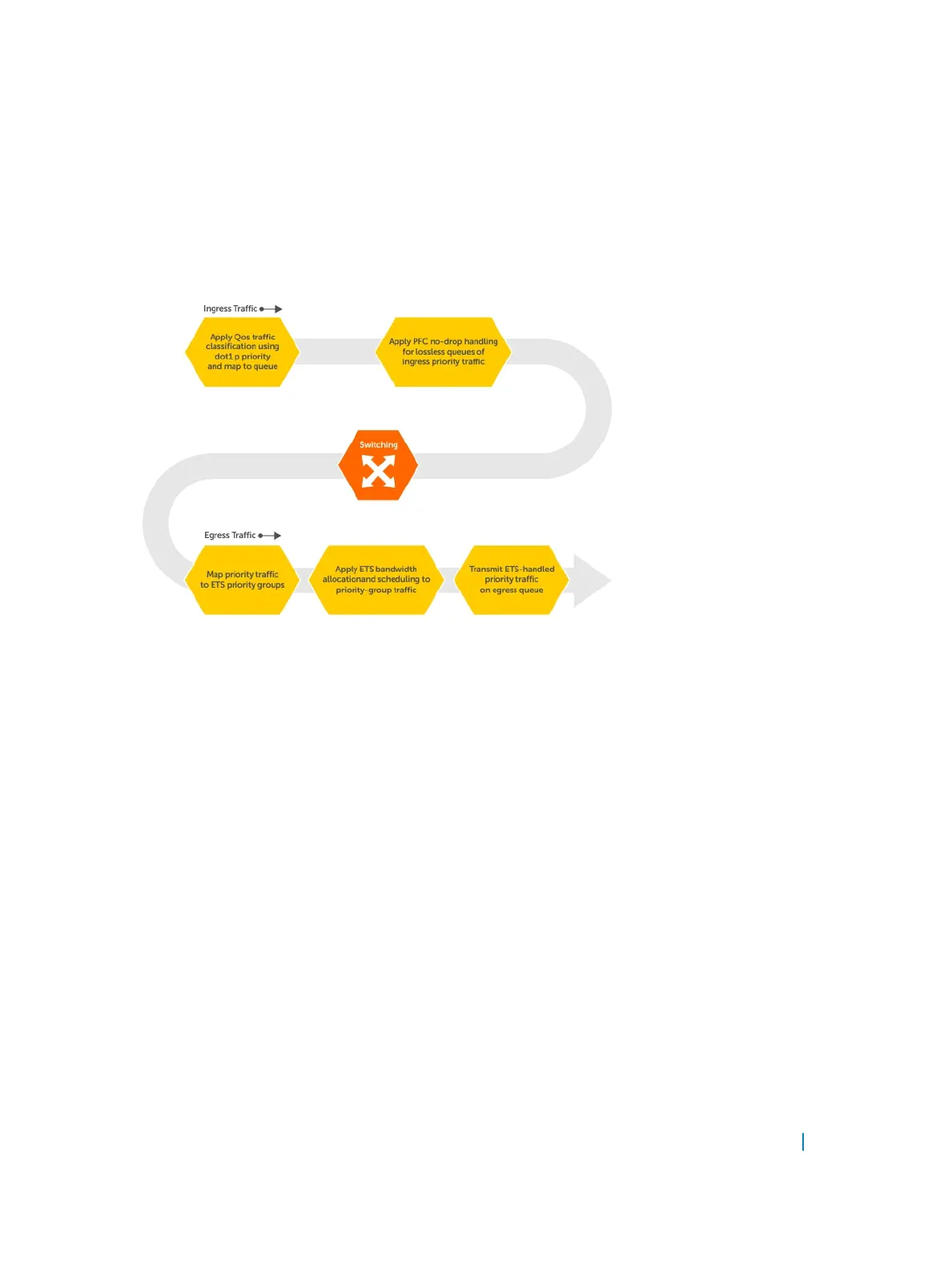

The following figure shows how DCB handles a traffic flow on an interface.
Figure 34. DCB PFC and ETS Traffic Handling
Enabling Data Center Bridging
DCB is automatically configured when you configure FCoE or iSCSI optimization.
Data center bridging supports converged enhanced Ethernet (CEE) in a data center network. DCB is disabled
by default. It must be enabled to support CEE.
• Priority-based flow control
• Enhanced transmission selection
• Data center bridging exchange protocol
• FCoE initialization protocol (FIP) snooping
DCB processes virtual local area network (VLAN)-tagged packets and dot1p priority values. Untagged packets
are treated with a dot1p priority of 0.
For DCB to operate effectively, you can classify ingress traffic according to its dot1p priority so that it maps to
different data queues. The dot1p-queue assignments used are shown in the following table.
To enable DCB, enable either the iSCSI optimization configuration or the FCoE configuration.
Data Center Bridging (DCB) 298

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
