Dell(conf-if-te-1/1)#rate shape 500 50
Dell(conf-if-te-1/1)#end
Policy-Based QoS Configurations
Policy-based QoS configurations consist of the components shown in the following example.

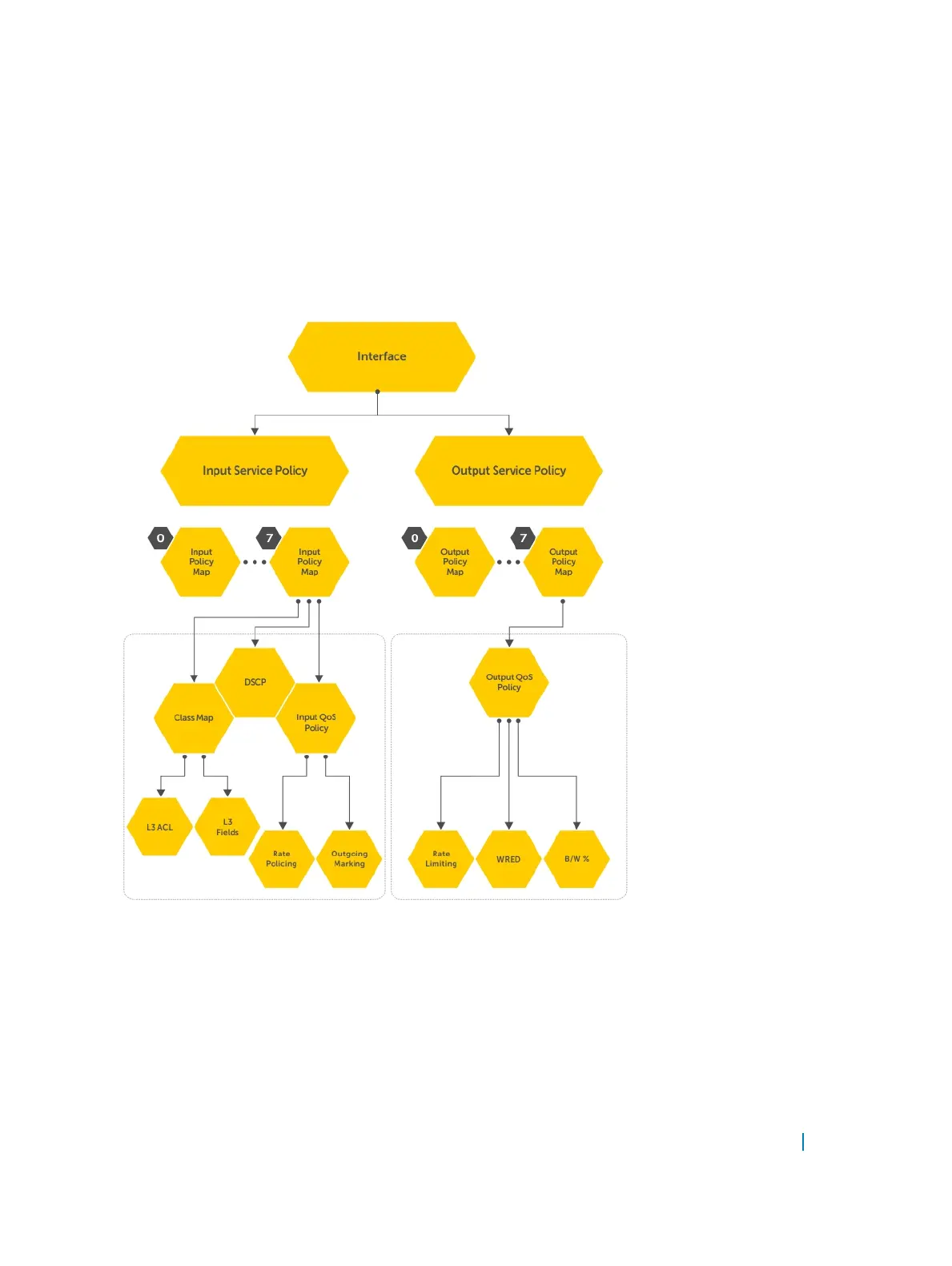

Figure 113. Constructing Policy-Based QoS Configurations
Classify Traffic
Class maps differentiate traffic so that you can apply separate quality of service policies to different types of
traffic.
For both class maps, Layer 2 and Layer 3, Dell Networking OS matches packets against match criteria in the
order that you configure them.
Quality of Service (QoS) 838

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
