tunneled NA packet is processed in such a way so that the ingress port is marked as the link from Node B to
Unit 2 rather than pointing to ICL link through which tunneled NA arrived.

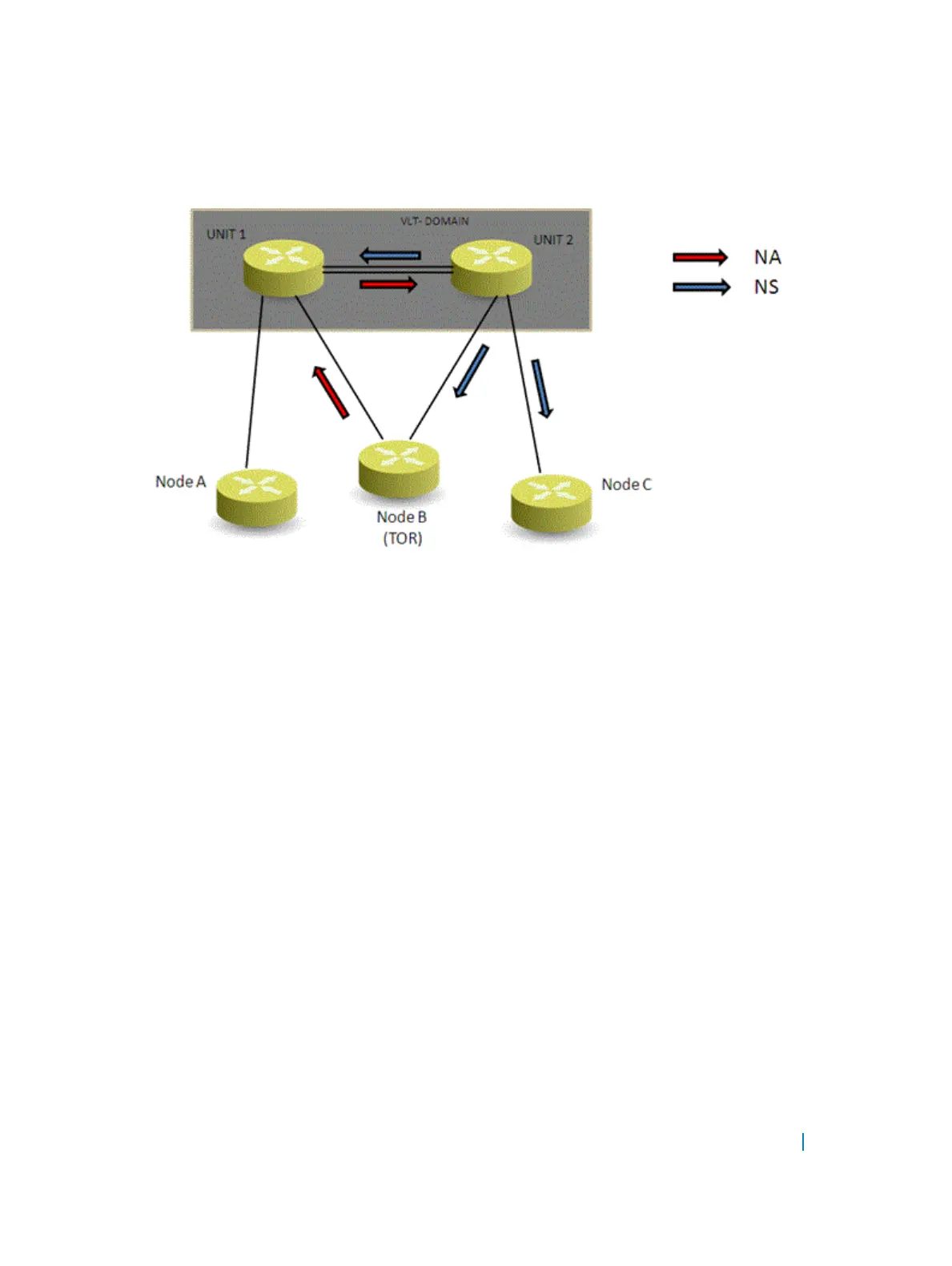

Figure 143. Sample Configuration of IPv6 Peer Routing in a VLT Domain
Sample Configuration of IPv6 Peer Routing in a
VLT Domain
Consider a sample scenario as shown in the following figure in which two VLT nodes, Unit1 and Unit2, are
connected in a VLT domain using an ICL or VLTi link. To the south of the VLT domain, Unit1 and Unit2 are
connected to a ToR switch named Node B. Also, Unit1 is connected to another node, Node A, and Unit2 is
linked to a node, Node C. The network between the ToR and the VLT nodes is Layer 2. Servers or hosts that
Virtual Link Trunking (VLT) 1170
