Dell(conf)#monitor session 1
Dell(conf-mon-sess-1)#source vl 40 dest ten 1/3 dir rx
Dell(conf-mon-sess-1)#flow-based enable
Dell(conf-mon-sess-1)#exit
Dell(conf)#do show monitor session
SessID Source Destination Dir Mode Source IP Dest IP
------ ------ ----------- --- ---- --------- --------
0 Te 1/1 Te 1/2 rx Port N/A N/A
0 Po 10 Te 1/2 rx Port N/A N/A
1 Vl 40 Te 1/3 rx Flow N/A N/A
NOTE: Source as VLAN is achieved via Flow based mirroring. Please refer section
Enabling Flow-Based Monitoring.

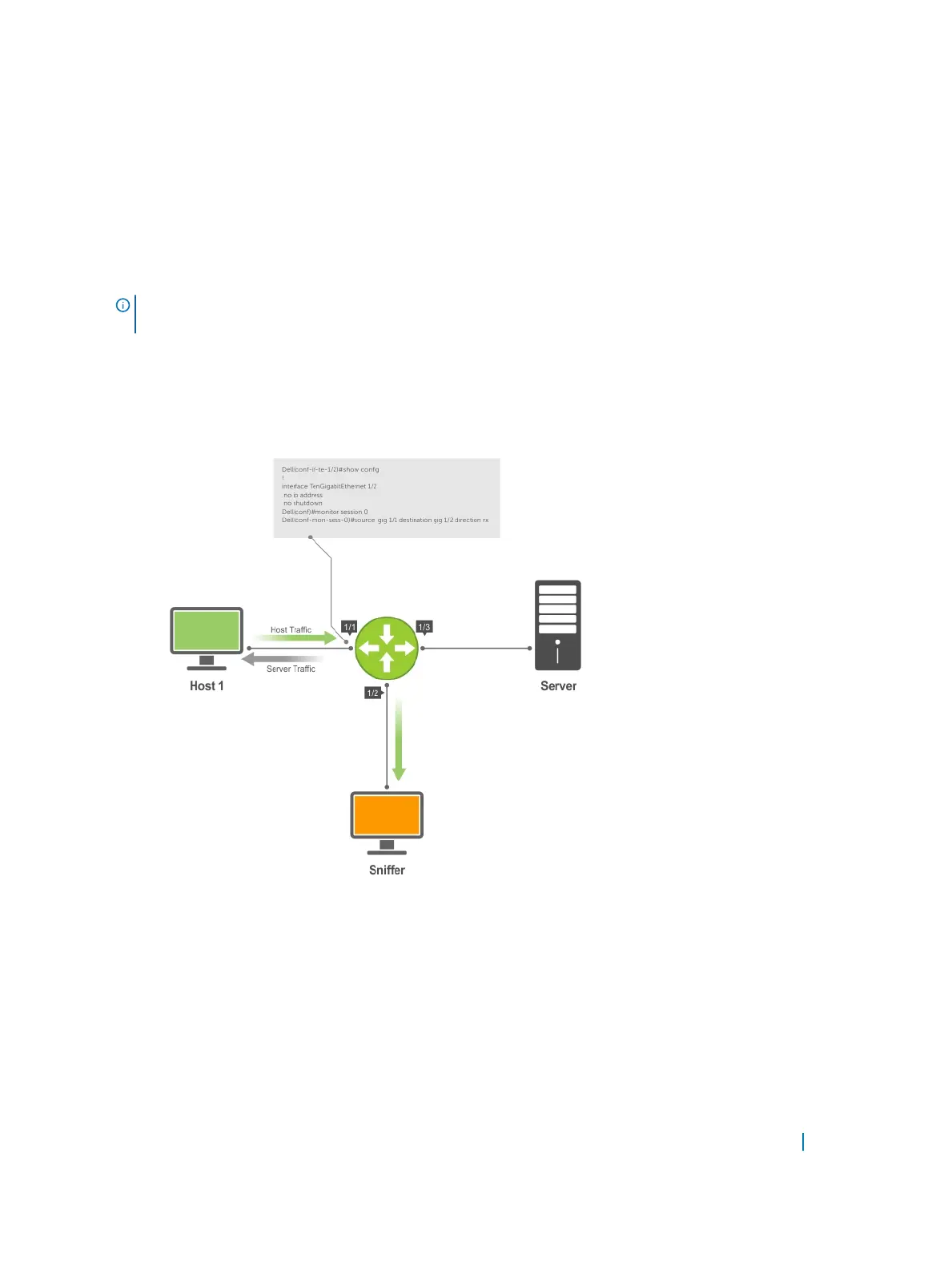

In the following example, the host and server are exchanging traffic which passes through the uplink interface
1/1. Port 1/1 is the monitored port and port 1/42 is the destination port, which is configured to only monitor
traffic received on tengigabitethernet 1/1 (host-originated traffic).
Figure 105. Port Monitoring Example
Configuring Monitor Multicast Queue
To configure monitor QoS multicast queue ID, use the following commands.
1 Configure monitor QoS multicast queue ID.
Port Monitoring 795
