Dell S4048T - Configuring Anycast RP

To Next Page

To Previous Page

3 RPs use MSDP to peer with each other using a unique address.

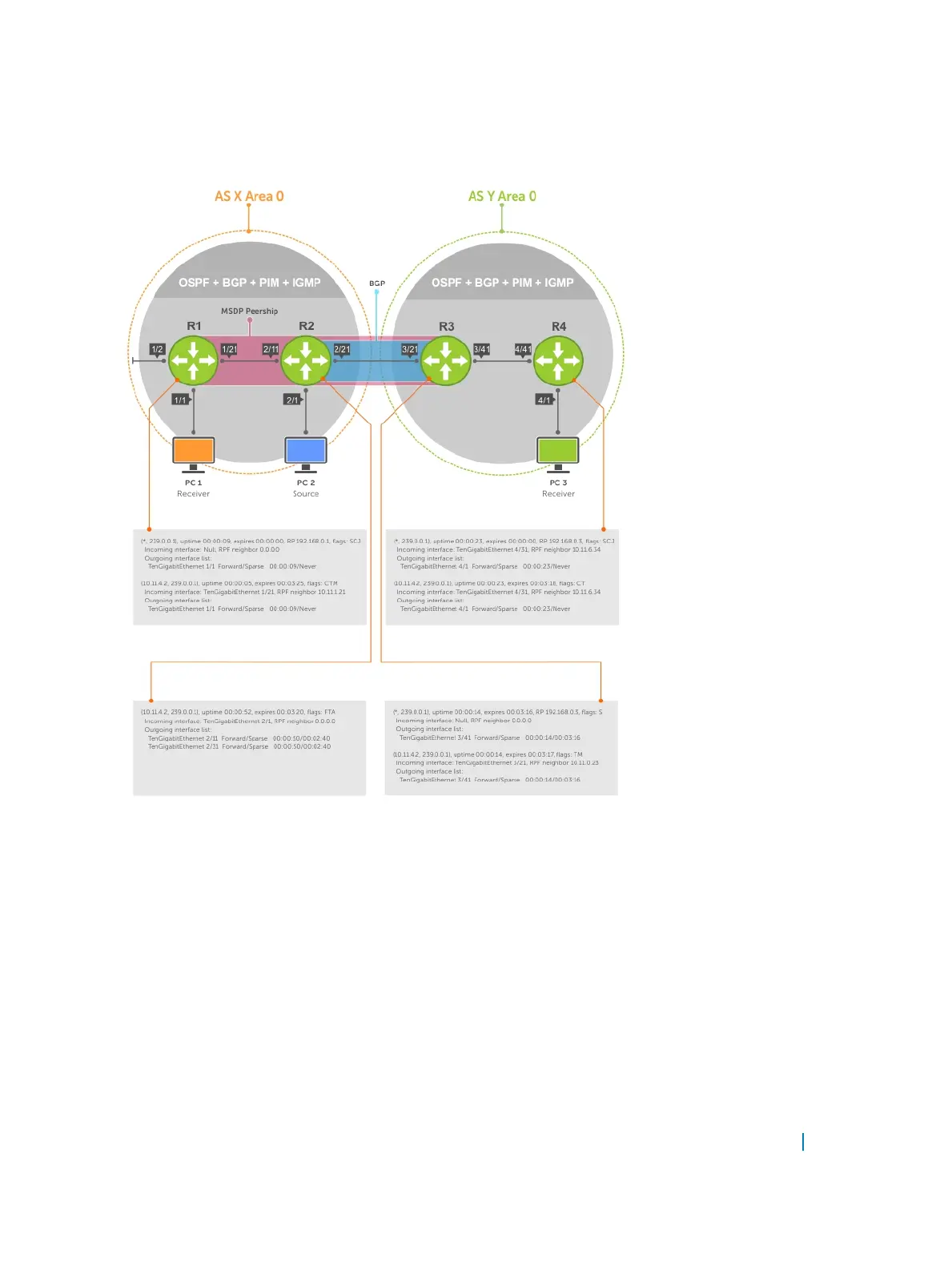

Figure 94. MSDP with Anycast RP

Configuring Anycast RP

To configure anycast RP, use the following commands.

1 In each routing domain that has multiple RPs serving a group, create a Loopback interface on each RP

serving the group with the same IP address.

CONFIGURATION mode

interface loopback

2 Make this address the RP for the group.

Multicast Source Discovery Protocol (MSDP) 662
