2 Create Service Node
To create service node, the required fields are the IP address and SSL certificate of the server. The
Service node is responsible for broadcast/unknown unicast/multicast traffic replication. The following is
the snapshot of the user interface for the creation of service node:

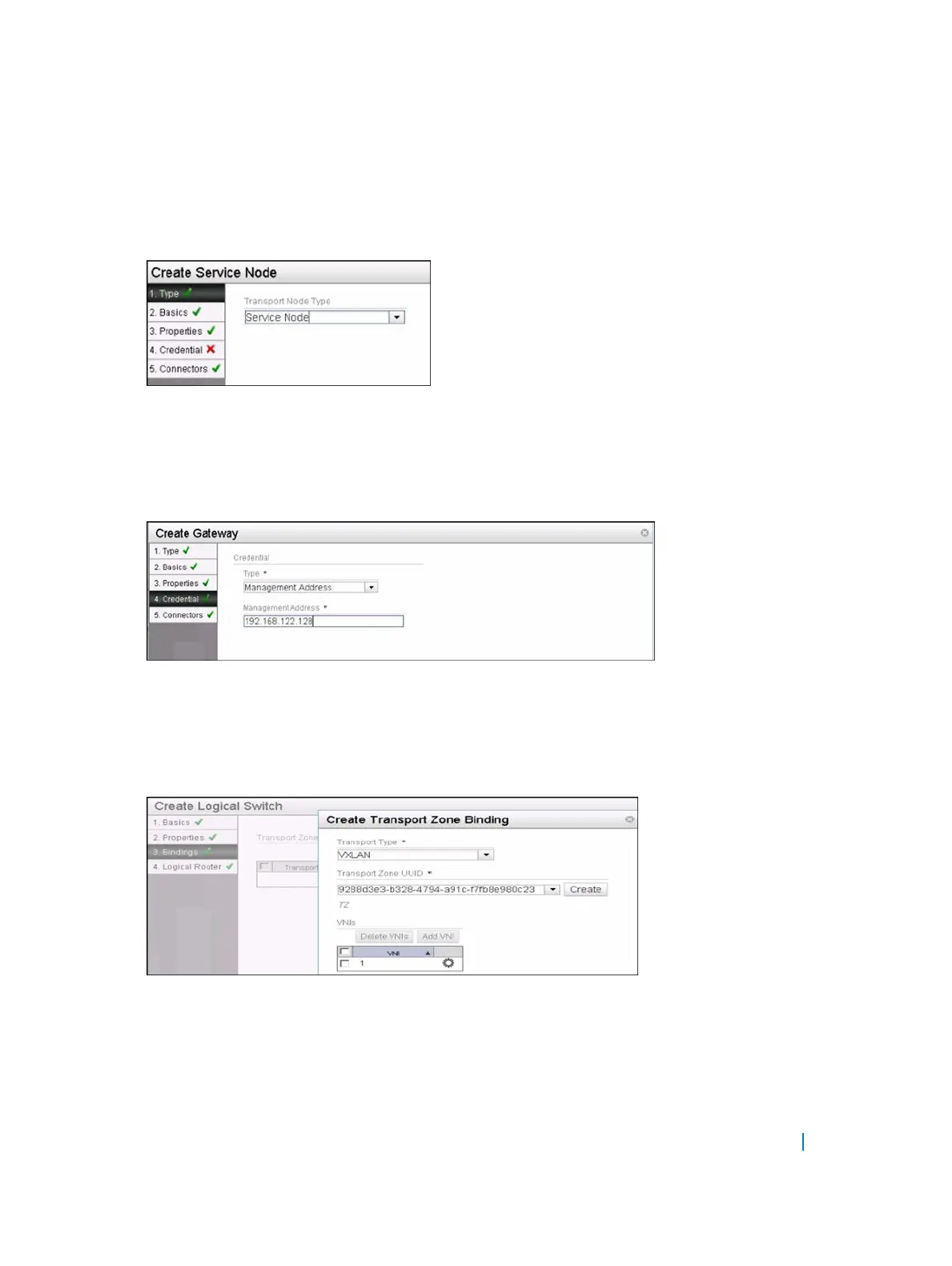

Figure 150. Create Service Node
3 Create VXLAN Gateway
To create a VXLAN L2 Gateway, the IP address of the Gateway is mandatory. The following is the
snapshot of the user interface in creating a VXLAN Gateway
Figure 151. Create Gateway
4 Create Logical Switch
You can create a logical network by creating a logical switch. The logical network acts as the forwarding
domain for workloads on the physical as well as virtual infrastructure.
Figure 152. Create Logical Switch
5 Create Logical Switch Port
Virtual Extensible LAN (VXLAN) 1180
