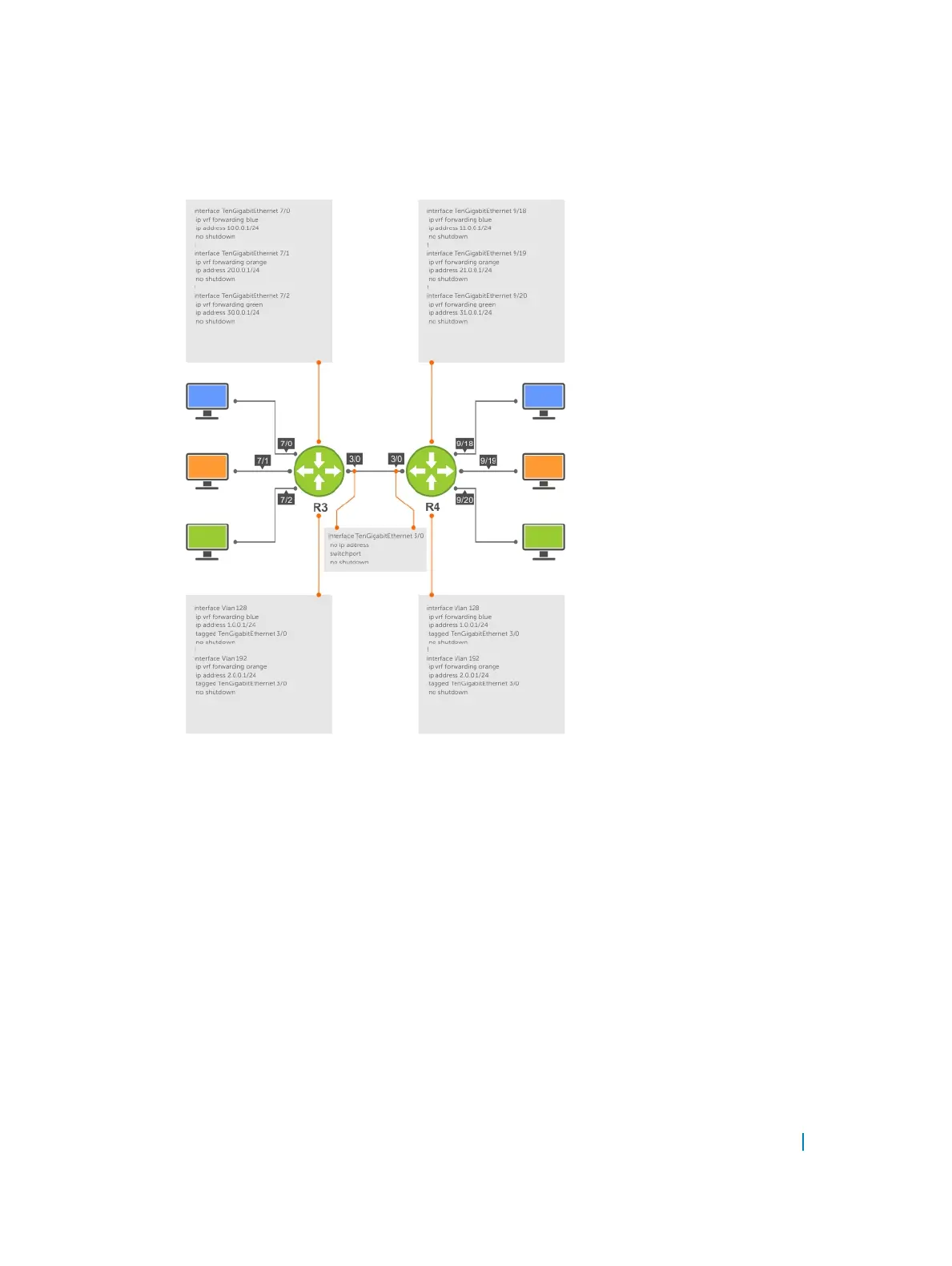

Figure 156. Setup VRF Interfaces

The following example relates to the configuration shown in the above illustrations.

Router 1

ip vrf blue 1

ip vrf orange 2

ip vrf green 3

interface TenGigabitEthernet 3/1

no ip address

switchport

no shutdown

interface TenGigabitEthernet 1/1

ip vrf forwarding blue

ip address 10.0.0.1/24

no shutdown

Virtual Routing and Forwarding (VRF) 1196
