Dell S4048T User Manual

specify the parameters that they require, and the server sends only those parameters. Some common options
are shown in the following illustration.

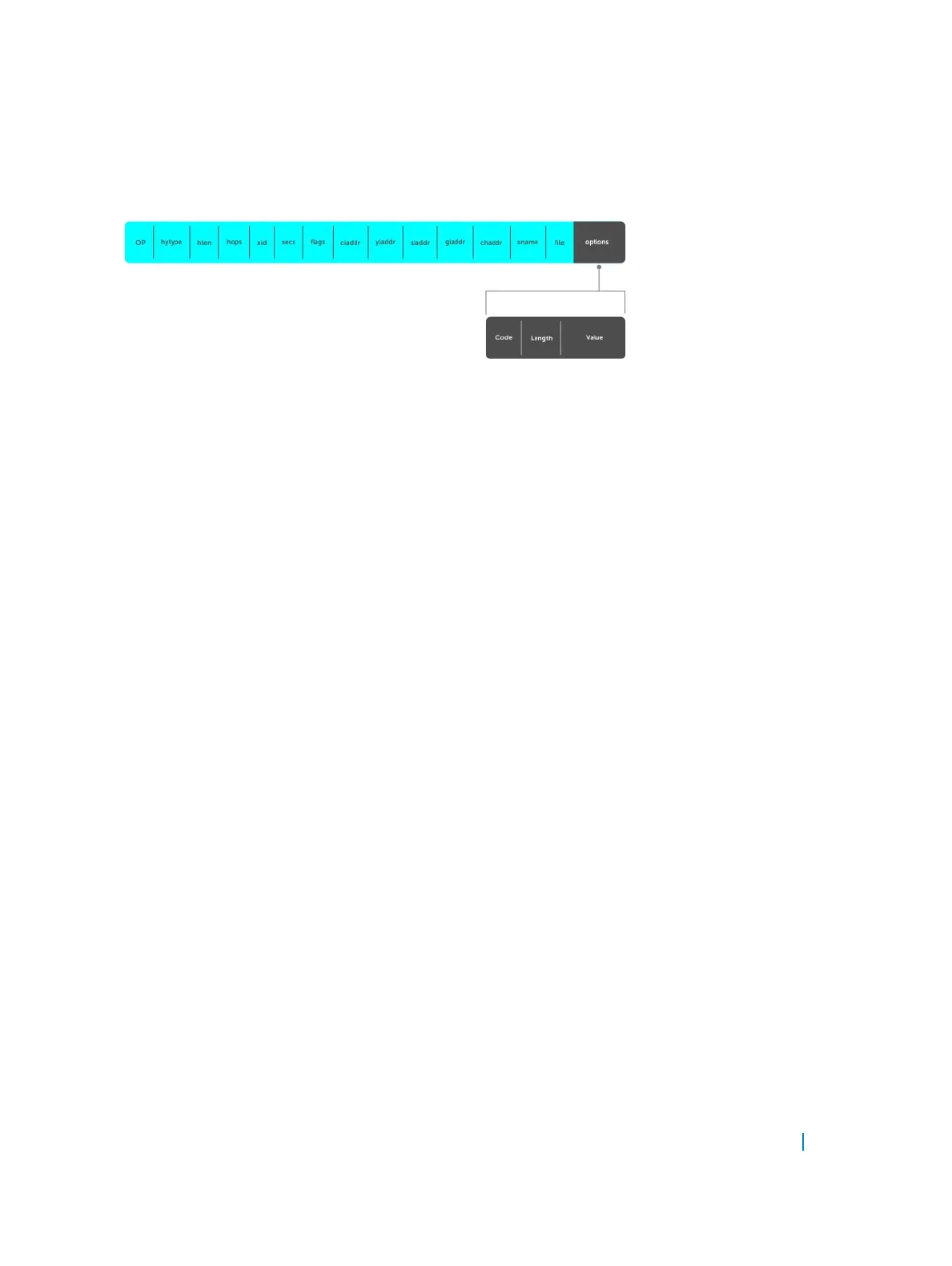

Figure 37. DHCP packet Format
The following table lists common DHCP options.
Option Number and Description
Subnet Mask Option 1
Specifies the client’s subnet mask.
Router Option 3
Specifies the router IP addresses that may serve as the client’s default gateway.
Domain Name
Server
Option 6
Specifies the domain name servers (DNSs) that are available to the client.
Domain Name Option 15
Specifies the domain name that clients should use when resolving hostnames via DNS.
IP Address Lease
Time
Option 51
Specifies the amount of time that the client is allowed to use an assigned IP address.
DHCP Message
Type
Option 53
• 1: DHCPDISCOVER
• 2: DHCPOFFER
• 3: DHCPREQUEST
• 4: DHCPDECLINE
• 5: DHCPACK
• 6: DHCPNACK
• 7: DHCPRELEASE
• 8: DHCPINFORM
Parameter Request
List
Option 55
Dynamic Host Configuration Protocol (DHCP) 344

Dell S4048T Specifications

General

Switching Capacity	1.44 Tbps
Rack Units	1U
Form Factor	Rack-mountable
Power Device	Internal power supply
Power Redundancy	Optional
Product Type	Switch
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, VRRP, PIM-SM, IGMP
Remote Management Protocol	SNMP, RMON, Telnet, SSH
Features	Quality of Service (QoS), Jumbo Frames Support, Virtual Route Redundancy Protocol (VRRP), VLAN support, sFlow, Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae
Dimensions (W x D x H)	17.3 in x 16 in x 1.7 in
Operating Temperature	0°C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
