limiting Receiver 1, so both IGMP reports are accepted and two corresponding entries are created in the
routing table.

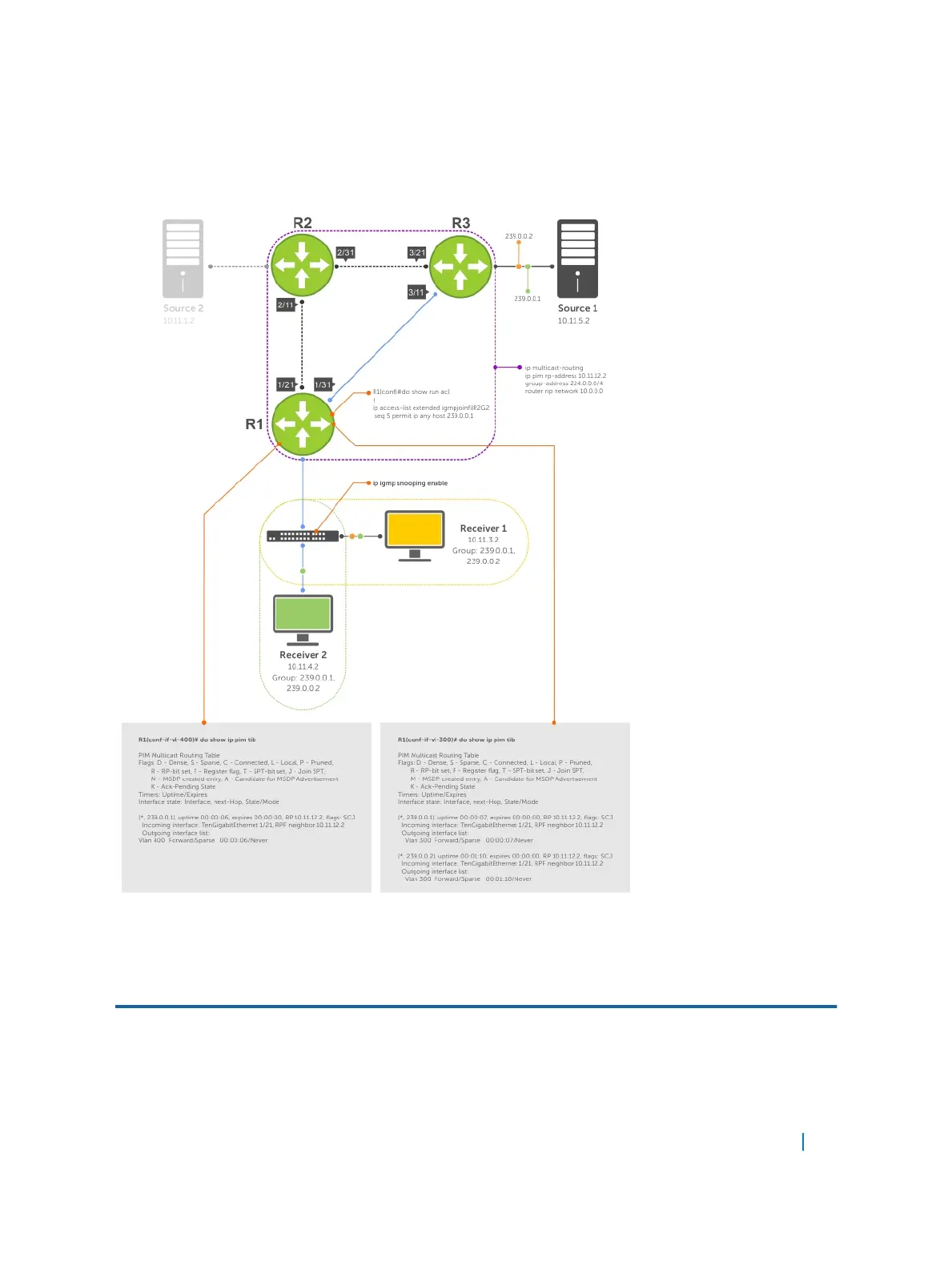

Figure 97. Preventing a Host from Joining a Group
The following table lists the location and description shown in the previous illustration.
Table 63. Preventing a Host from Joining a Group — Description
Location Description
1/21
Interface TenGigabitEthernet 1/21
ip pim sparse-mode
ip address 10.11.12.1/24
Multicast Features 689
