examples to your CLI. Make the necessary changes to support your own IP addresses, interfaces, names, and
so on.

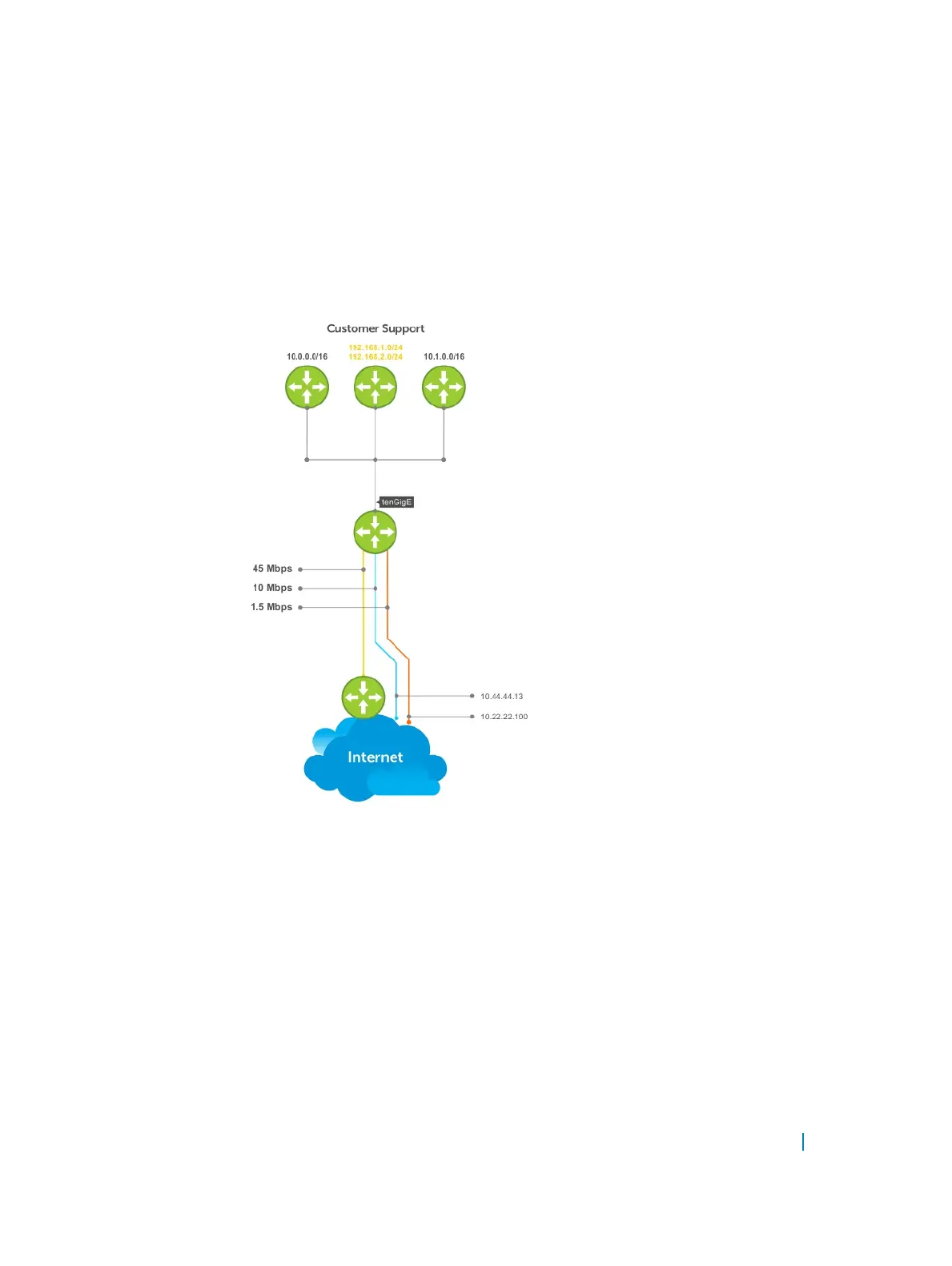

The Redirect-List GOLD defined in this example creates the following rules:
• description Route Gold traffic to the DS3
• seq 5 redirect 10.99.99.254 ip 192.168.1.0/24 any “ Redirect to next-hop router IP 10.99.99.254 any
traffic originating in 192.168.1.0/24”
• seq 10 redirect 10.99.99.254 ip 192.168.2.0/24 any “ Redirect to next-hop router IP 10.99.99.254 any
traffic originating in 192.168.2.0/24”
• seq 15 permit ip any
Create the Redirect-List GOLD
EDGE_ROUTER(conf-if-Te-2/23)#ip redirect-list GOLD
EDGE_ROUTER(conf-redirect-list)#description Route GOLD traffic to ISP_GOLD.
EDGE_ROUTER(conf-redirect-list)#direct 10.99.99.254 ip 192.168.1.0/24 any
EDGE_ROUTER(conf-redirect-list)#redirect 10.99.99.254 ip 192.168.2.0/24 any
EDGE_ROUTER(conf-redirect-list)# seq 15 permit ip any any
EDGE_ROUTER(conf-redirect-list)#show config
!
ip redirect-list GOLD
description Route GOLD traffic to ISP_GOLD.
seq 5 redirect 10.99.99.254 ip 192.168.1.0/24 any
seq 10 redirect 10.99.99.254 ip 192.168.2.0/24 any
seq 15 permit ip any any
