0 Te 1/13 Te 2/1 rx interface Port-based
10 Te 1/14 Te 2/2 rx interface Port-based
20 Te 1/15 Te 2/3 rx interface Port-based
30 Te 1/16 Te 2/7 rx interface Port-based
300 Te 1/17 Te 1/1 tx interface Port-based
Dell(conf-mon-sess-300)#
Example of Configuring Another Monitoring Session with a Previously Used Destination Port
Dell(conf)#mon ses 300
Dell(conf-mon-sess-300)#source TenGig 1/17 destination TenGig 1/4 direction tx
% Error: Exceeding max MG ports for this MD port pipe.
Dell(conf-mon-sess-300)#
Dell(conf-mon-sess-300)#source TenGig 1/17 destination TenGig 1/1 direction tx
Dell(conf-mon-sess-300)#do show mon session
SessionID Source Destination Direction Mode Type
--------- ------ ----------- --------- ---- ----
0 Te 1/13 Te 1/1 rx interface Port-based
10 Te 1/14 Te 1/2 rx interface Port-based
20 Te 1/15 Te 1/3 rx interface Port-based
30 Te 1/16 Te 1/7 rx interface Port-based
300 Te 1/17 Te 1/1 tx interface Port-based
Example of Viewing a Monitoring Session
In the example below, 0/25 and 0/26 belong to Port-pipe 1. This port-pipe has the same restriction of only
four destination ports, new or used.
Dell(conf-mon-sess-300)#do show mon session
SessionID Source Destination Direction Mode Type
--------- ------ ----------- --------- ---- ----
0 Te 1/13 Te 1/1 rx interface Port-based
10 Te 1/14 Te 1/2 rx interface Port-based
20 Te 1/15 Te 1/3 rx interface Port-based
30 Te 1/16 Te 1/37 rx interface Port-based
100 Te 1/25 Te 1/38 tx interface Port-based
110 Te 1/26 Te 1/39 tx interface Port-based
300 Te 1/17 Te 1/1 tx interface Port-based
Dell(conf-mon-sess-300)#

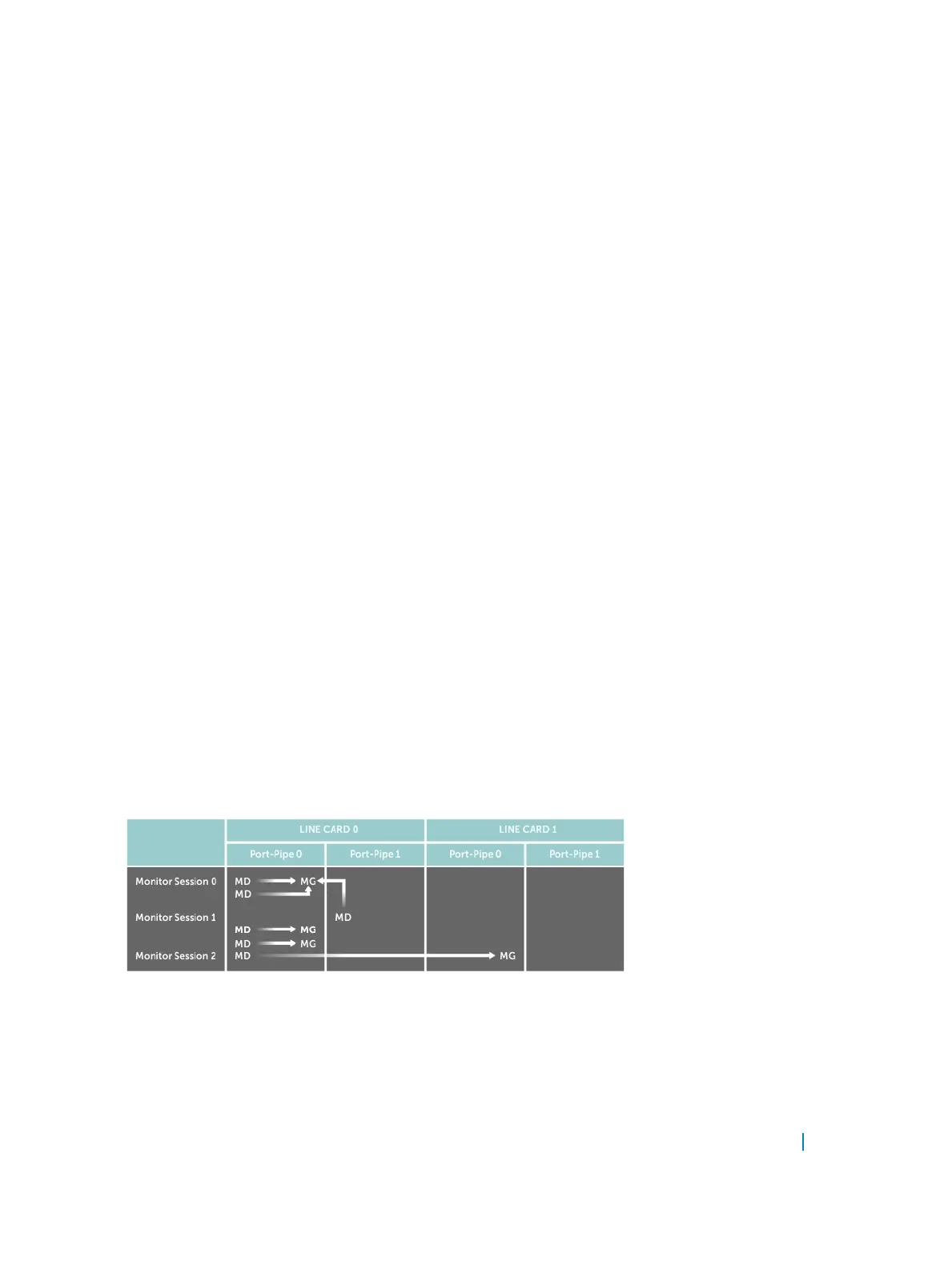

Given these parameters, the following illustration shows the possible port monitoring configurations.
Figure 104. Port Monitoring Configurations
Dell Networking OS Behavior: All monitored frames are tagged if the configured monitoring direction is
egress (TX), regardless of whether the monitored port (MD) is a Layer 2 or Layer 3 port. If the MD port is a
Layer 2 port, the frames are tagged with the VLAN ID of the VLAN to which the MD belongs. If the MD port is
a Layer 3 port, the frames are tagged with VLAN ID 4095. If the MD port is in a Layer 3 VLAN, the frames are
Port Monitoring 793
