Chapter 6: Overview- 2 Main Windows
GRAPH Window (cont.)

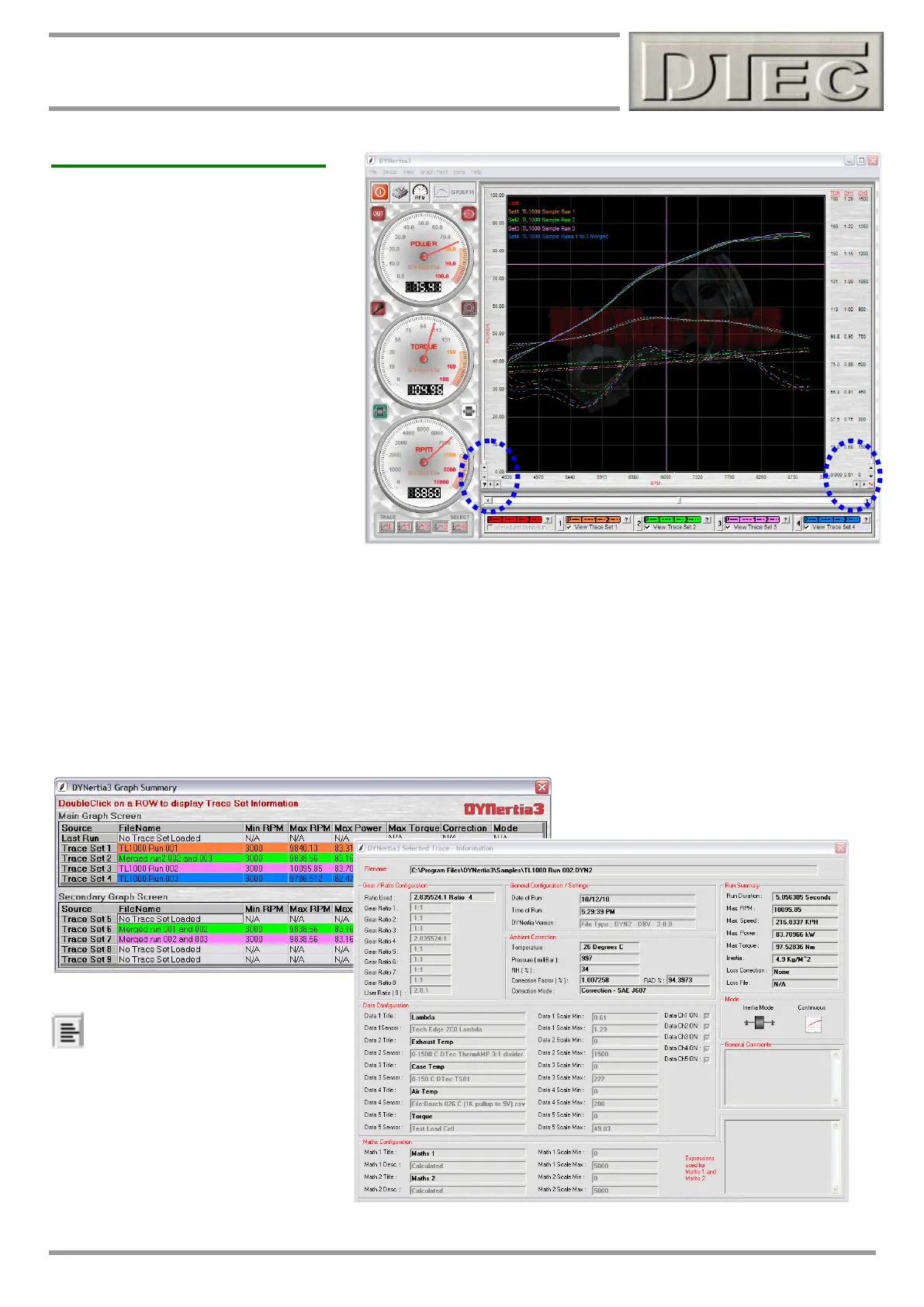

Graph controls
The horizontal graphs X-scale is either
RPM or speed depending on the operating
mode set by the ‘mode’ button (icon of
‘gauge’, Top Left of screen).
Based on whichever data trace you have
selected (buttons under RPM/speed dial)
you can Click on the screen to produce a
measurement cursor (‘cross hairs’) that
can be moved to any spot by Clicking or
dragging the ‘Slide control’ at the bottom of
the screen. The relevant measurement
information will be displayed on the dial
gauges.
“” buttons (lower Left & Right corners)
allows the trimming (or ‘zooming in’ ) of the
trace image by moving the graph start and
finish points, this can also remove any
unwanted trace sections, particularly useful for ensuring the printed image appears as you wish.
Tip- To permanently trim Run traces there is a function under the menu choice “File/Trim Runs”.
“” buttons (lower Left & Right corners) allows the trimming (or ‘zooming in’ ) of the trace image by altering the graph
Power and Torque scales, this can also remove any unwanted trace sections, particularly useful for ensuring the printed
image appears as you wish.
Tip- The scales will initially be selected from the graph scale settings you have chosen (start and finish RPM/speed).
“?” button (lower Left corner) will open a panel that shows key summary data for all of the loaded traces. Operating
“Mode” (Inertia or Brake) that the dyno was set in during testing is also shown here.
Tip- ‘Double clicking’ on any row will bring
up a full information screen on that trace
The “Comments” button in lower
Right corner opens the recorded
notes that can be viewed and
edited for the selected trace, chosen
using the ‘Trace Select’ buttons in lower
LH corner of the GRAPH screen.
