Chapter 9: Trim, Merge & Join runs

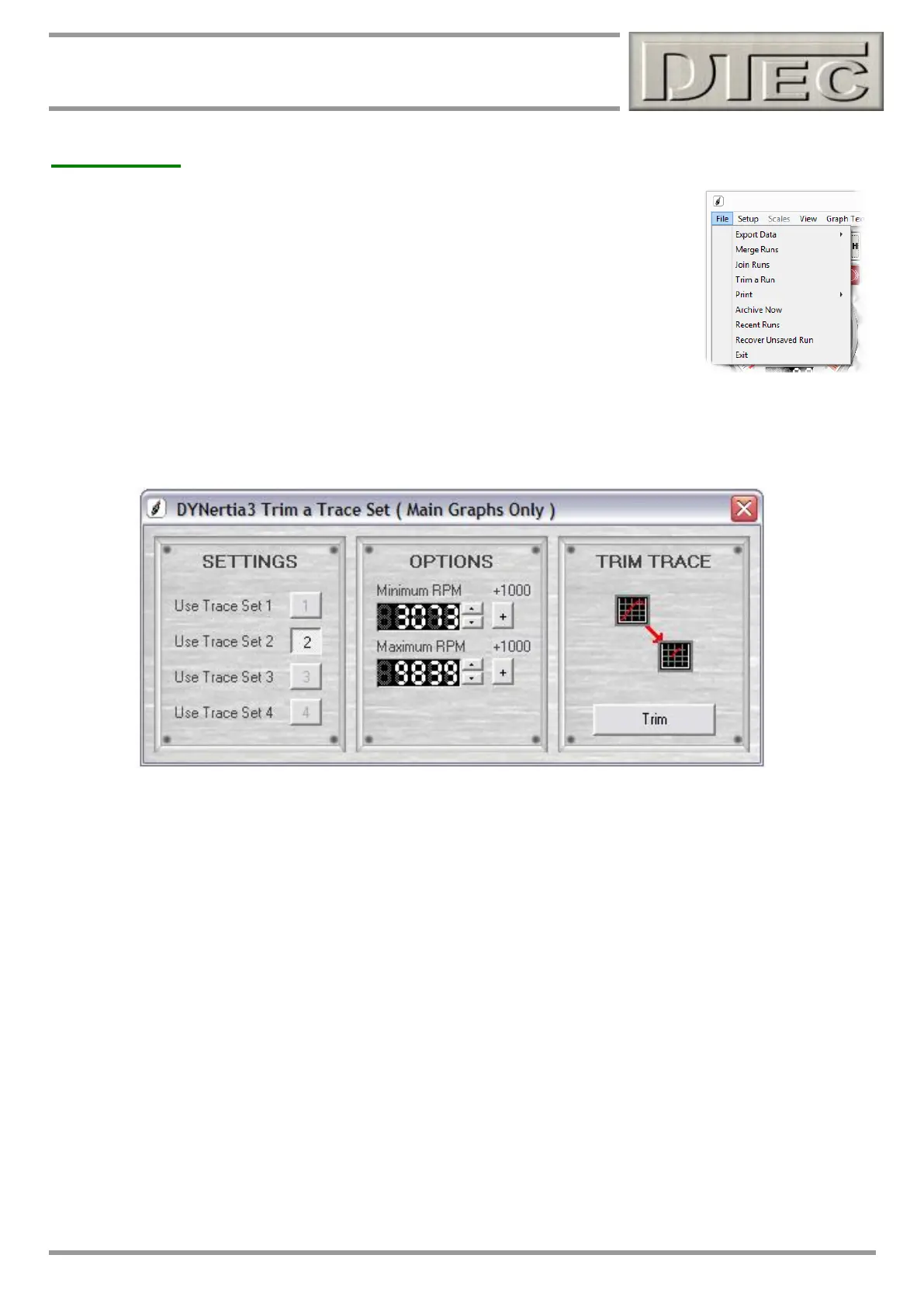

Trim a Run
Trimming a Run cuts off any RPM points above and below the RPM range selected. This is
used to remove permanently any sections of your Run trace you do not wish to have,
particularly if your RPM start and finish points where not set ideally and you have a ‘messy’
looking trace or have a large part of the RPM scale not used.
The new trimmed Run trace will be saved under a name of your choice as a whole new file!
1. Choose the trace number set you wish to trim with the selection buttons
2. Set the Min and Max RPM you wish to have remaining in your data
3. Press the “Trim” button and you will be prompted to name the file and choose a location to save.
Tip- For fast setting of the RPM points use the “+1000” buttons, this will increment the adjustments by 1000 RPM at a
time.
