Chapter 8: Loading / Viewing Files
Loading of files into ‘GRAPH’ Window
Previewing (DYNertia3 File Explorer) and Selecting Files

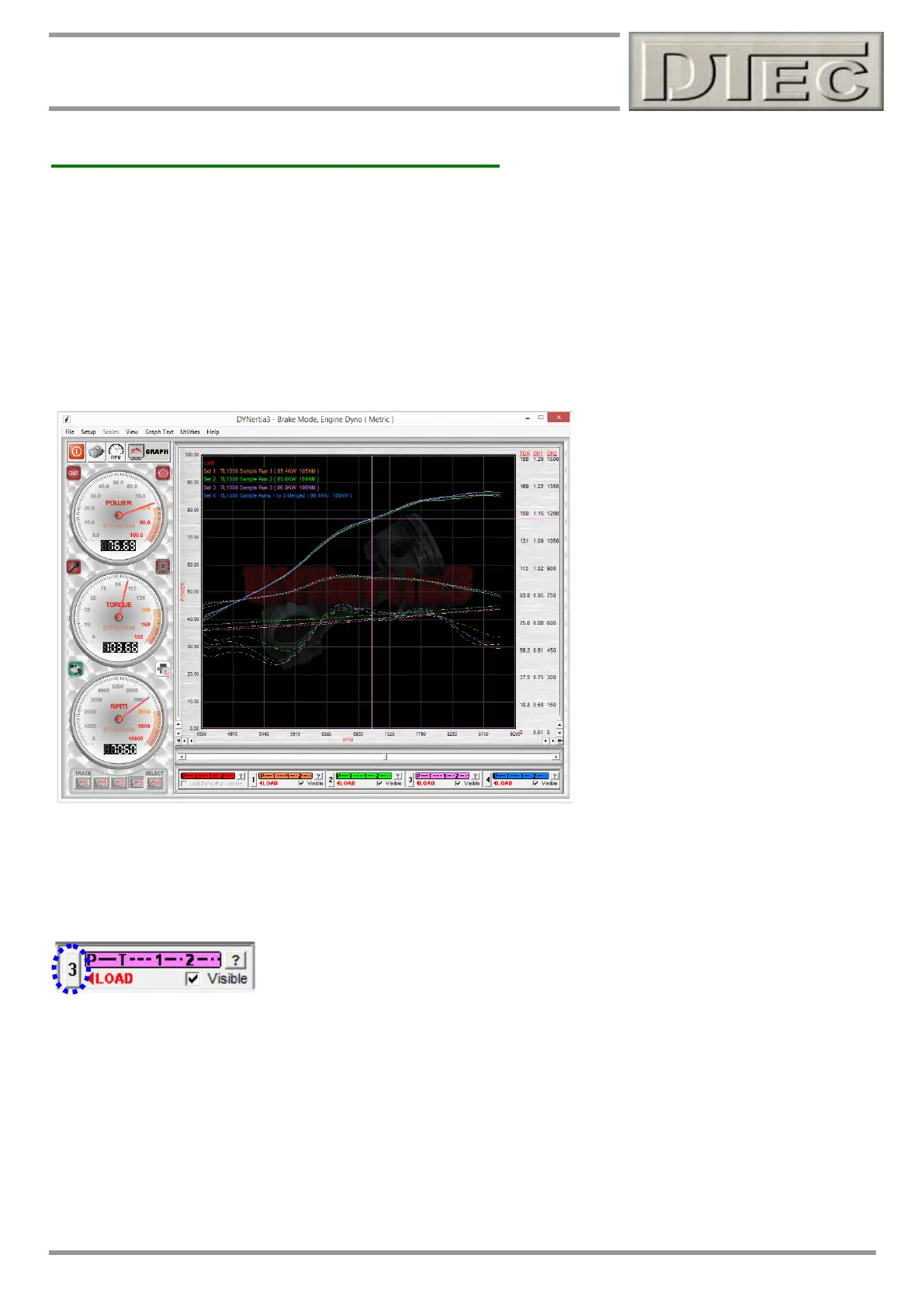

Loading files into the GRAPH Window is a key function. It is only loaded files that can be then selected and anaylised in
the other Windows of DYNertia3. The Main GRAPH Window is itself also a convenient screen to overlay and compare
test results.
If you have just performed a test then this ‘Graph’ Window will appear automatically if menu ‘Setup/Software’ “Auto
display of last run” is selected (default setting). The last test Run you did will appear as a red trace (not shown here) and
any others already ‘loaded’ will be shown as various alternate coloured traces.
Tip- DYNertia3 already has some test Runs in a folder called ‘Samples’, use these to practice loading and viewing files
and to learn the software operation.
NOTE: It is only ‘loaded’ files that can be then selected and analysed in the other screens of DYNertia3
‘DYNertia3 File Explorer’ is used to pick a storage Folder of choice and when each file within it is selected (one Left
‘Click’) its data table, general notes, key data and preview graph are shown.
Traces to view and analyse are ‘loaded’ onto the Graph screen by using the coloured
boxes beneath the graph. There is one for each of the 5 traces (10 counting secondary
screen traces) that can be viewed.
To load a new trace into the graph for viewing or to change an existing one ‘Click’ on a trace number (button numbered
“3” in this example above), this will open our ‘DYNertia3 File Explorer’ screen where we can select a run to be shown as
trace ‘3’.
Single ‘Right Click’ on a file of interest and it will be loaded as the new ‘trace set’ back in the main graph screen! (Left
Click first to highlight, shown next page)
‘DYNertia3 File explorer’ can also be opened from the ‘DYNO’ screen (button as shown to right), from the menu option
‘View/DYNertia File Explorer’ or by pressing ‘ctrl + F’ buttons as a shortcut.
