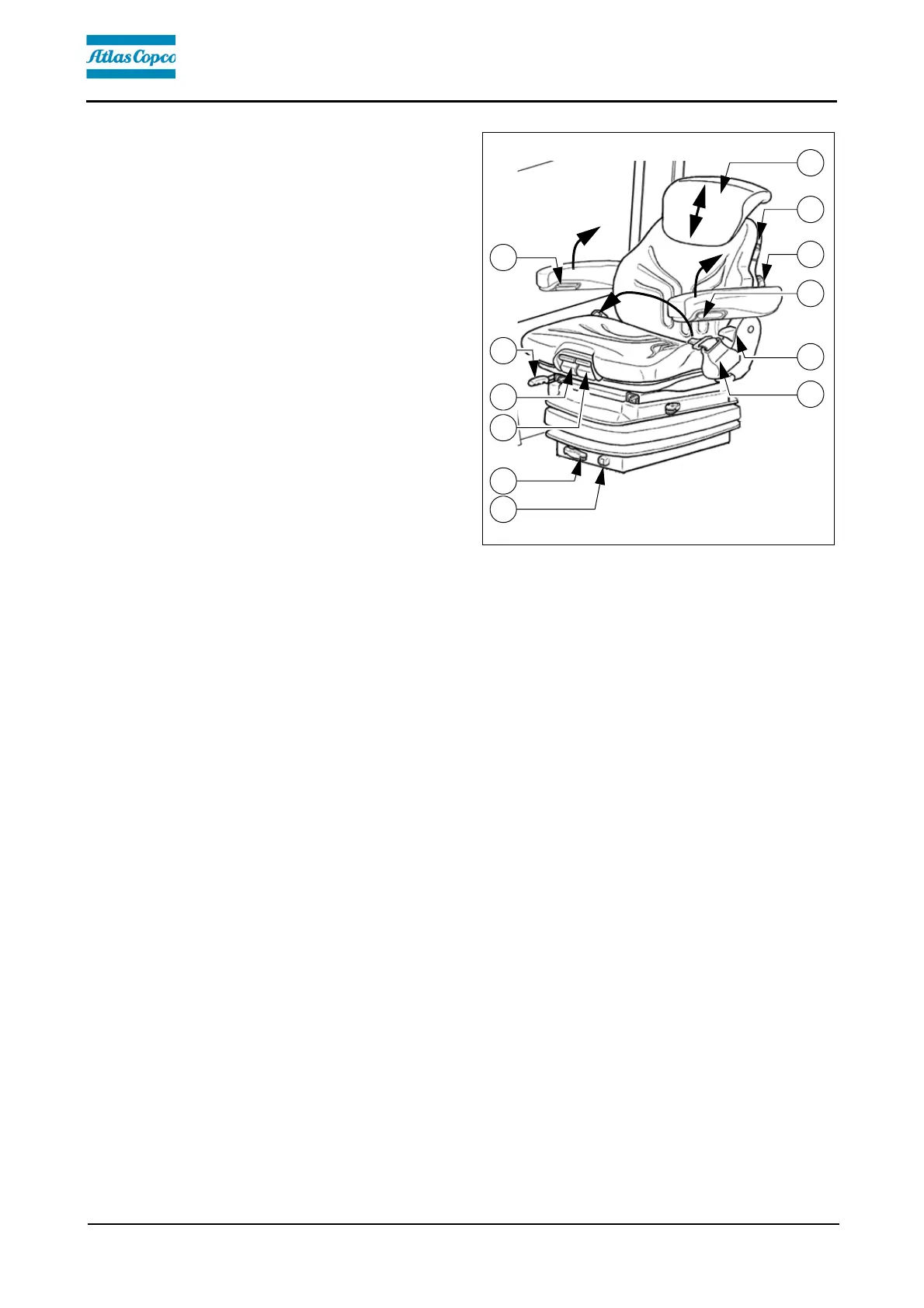

Driver's seat, type I
f
To avoid damage to health, the individu-
al seat settings should be checked and
adjusted before starting the vehicle.
f
After locking the individual elements, it
must no longer be possible to shift then
to another position.
- Weight setting (1): The relevant driv-
er's weight should be set by turning
the weight adjustment lever when the
driver's seat is unoccupied.
- Weight indicator (2): The set driver's
weight can be read off at the viewing
window.
- Longitudinal adjustment (3): Longi-
tudinal adjustment is released by actu-
ating the locking lever.
The locking lever must engage in the desired position.
- Seat depth adjustment (4): The seat depth can be individually adjusted. Raise the
button to adjust the seat depth. The desired position is set by simultaneously sliding
the seat surface forwards or backwards.
- Seat inclination adjustment (5): The seat surface's longitudinal inclination can be
individually adjusted. Raise the button to adjust the inclination. The seat surface in-
clines to the desired position by simultaneously loading or relieving it.
- Armrest inclination (6): The armrest's longitudinal inclination can be adjusted by
turning the hand wheel. Turning outwards raises the front of the armrest; turning
inwards lowers it at the front.
In addition, the armrests can be folded up fully.
- Lumbar support (7): Both the height and the extent of the convexity in the backrest
padding can be individually adjusted by turning the hand wheel to the left or right.
- Backrest adjustment (8): The backrest is adjusted via the locking lever. The lock-
ing lever must engage in the desired position.
- Back extension (9): By pulling out via perceptible detents, the height can be indi-
vidually adjusted up to a limit stop. To remove the back extension, the limit stop is
overcome with a jolt.
- Seat heating ON/OFF (10): The seat heating is switched on and off by actuating
the switch.
- Seat belt (11): The seat belt must be applied before starting up the vehicle.
f
The seat belts must be replaced following an accident.
