Dynapac SD2500C User Manual

E 10 32

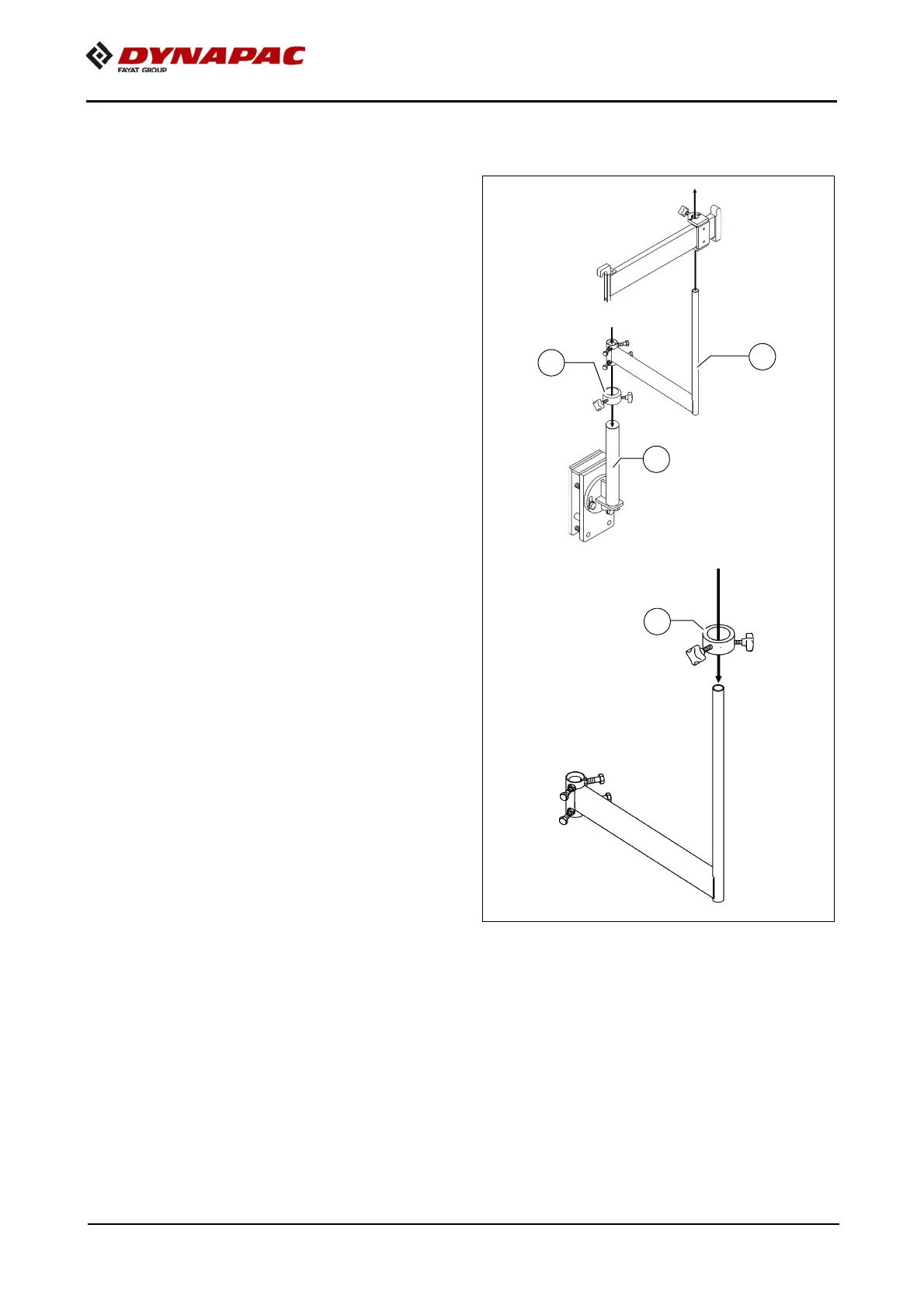

Mounting the swivel arms
- Slide a fixing ring (1) over the tube of
the big ski bracket (2).
A
The fixing ring's 45° chamfer must point
upwards.
- Then slide the two swivel arms (3)
onto the tube of the big ski bracket.
A
The rear swivel arm is positioned, rotat-
ed by 180°, on the big ski bracket.
- Slide a fixing ring (4) (flat version) onto
the front swivel arm and secure with
the relevant star handle bolt.
1
3
4
2
MBS3a.bmp/MBS3c.bmp
