F 73 10
Rollers (3)
m
Rollers with damaged surfaces or which
are leaking should be replaced immedi-
ately!
- Relieving the caterpillar chain:
- Raise the track chassis using suitable
lifting equipment and remove adhering
dirt.
f
Observe the safety measures when rais-
ing and securing loads!

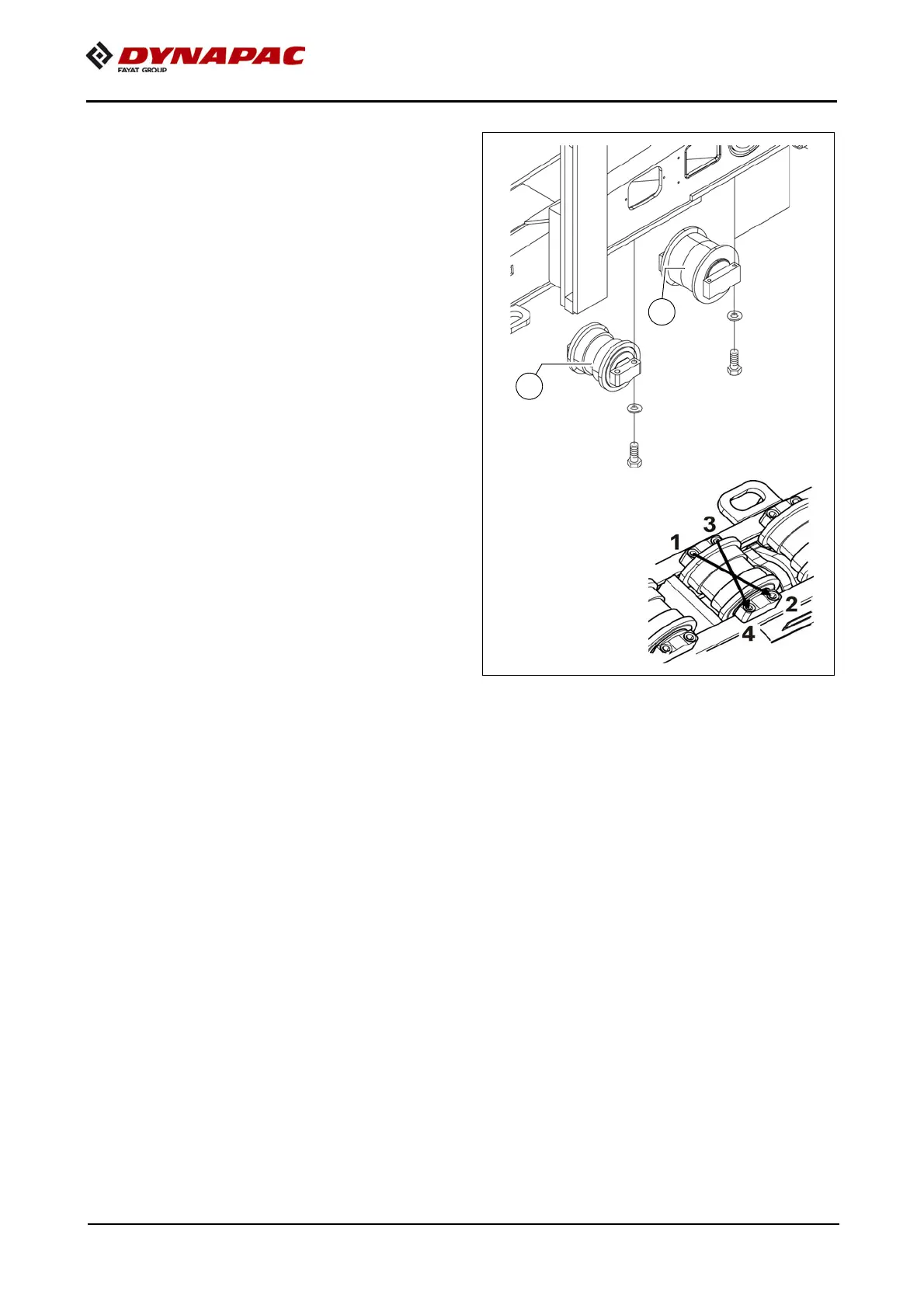

- Remove the defective roller.
- Install the new roller using new as-
sembly parts.
- Tighten the bolts without applying sig-
nificant torque.
- Tighten the bolts diagonally to the re-
quired torque.
- Tighten to the following torques:
- Small rollers (A): 220 Nm
- Large rollers (B): 87 Nm
m
Check that each bolt has attained the full tightening torque!
- Lower the track chassis and tension the caterpillar chain properly.
