Drive chains of the
augers (3)

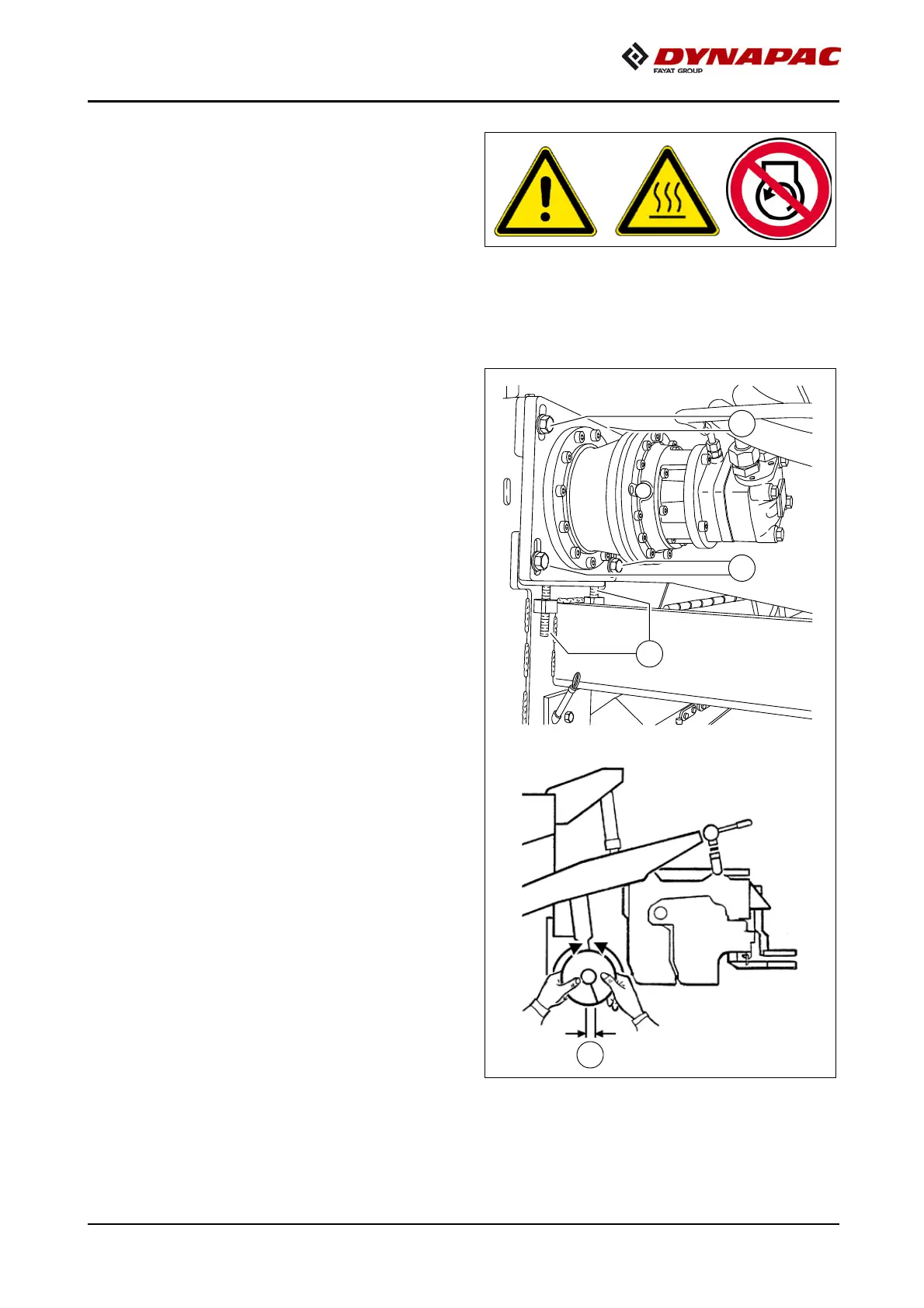

To check the chain tension:
- Manually turn both augers to the right
and left. In this case, movement clearance (C) at the augers' outer circumference
should be 10 mm.
f
Risk of injury due to sharp-edged parts!
To re-tension the chains
- Release the mounting screws (A).
- Set the chain tension correctly using
the threaded pins (B):
- Tighten the threaded pins to 20 Nm
using a torque wrench.
- Subsequently loosen the threaded
pins again by one full revolution.
- Retighten the bolts (A).
