3.7 Crossbeam guide

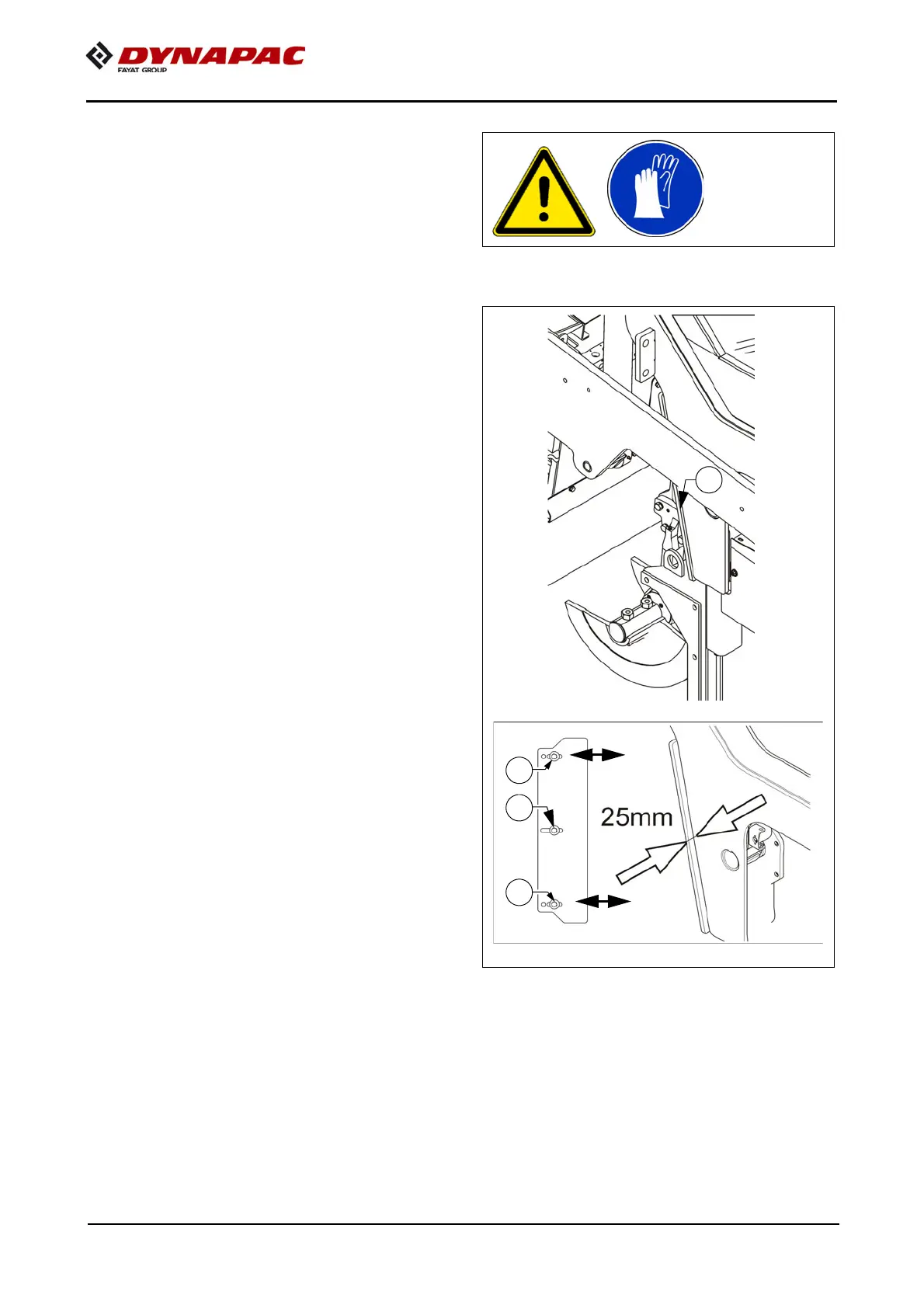

To warrant correct guidance of the
crossbeams, the guide plates (1) at both
sides of the vehicle must be adjusted to
the prevailing paving conditions (e.g.
positive or negative crowning, etc.).
- Loosen screw (2) and remove
screws (3).
- Adjust guide plate to the required size
(basic setting 25mm).
- Retighten the mounting screws (2), (3)
properly.
f
Risk of injury due to sharp-edged parts!
Wear suitable safety gloves to protect
your hands!
1
2
3
3
