Dynapac SD2500C - Gearbox bolts Check tightening (6)

F 40 10
Gearbox bolts
Check tightening (6)
m
Following the running-in period, the
tightening torques of the outer gearbox
bolts must be checked.
A

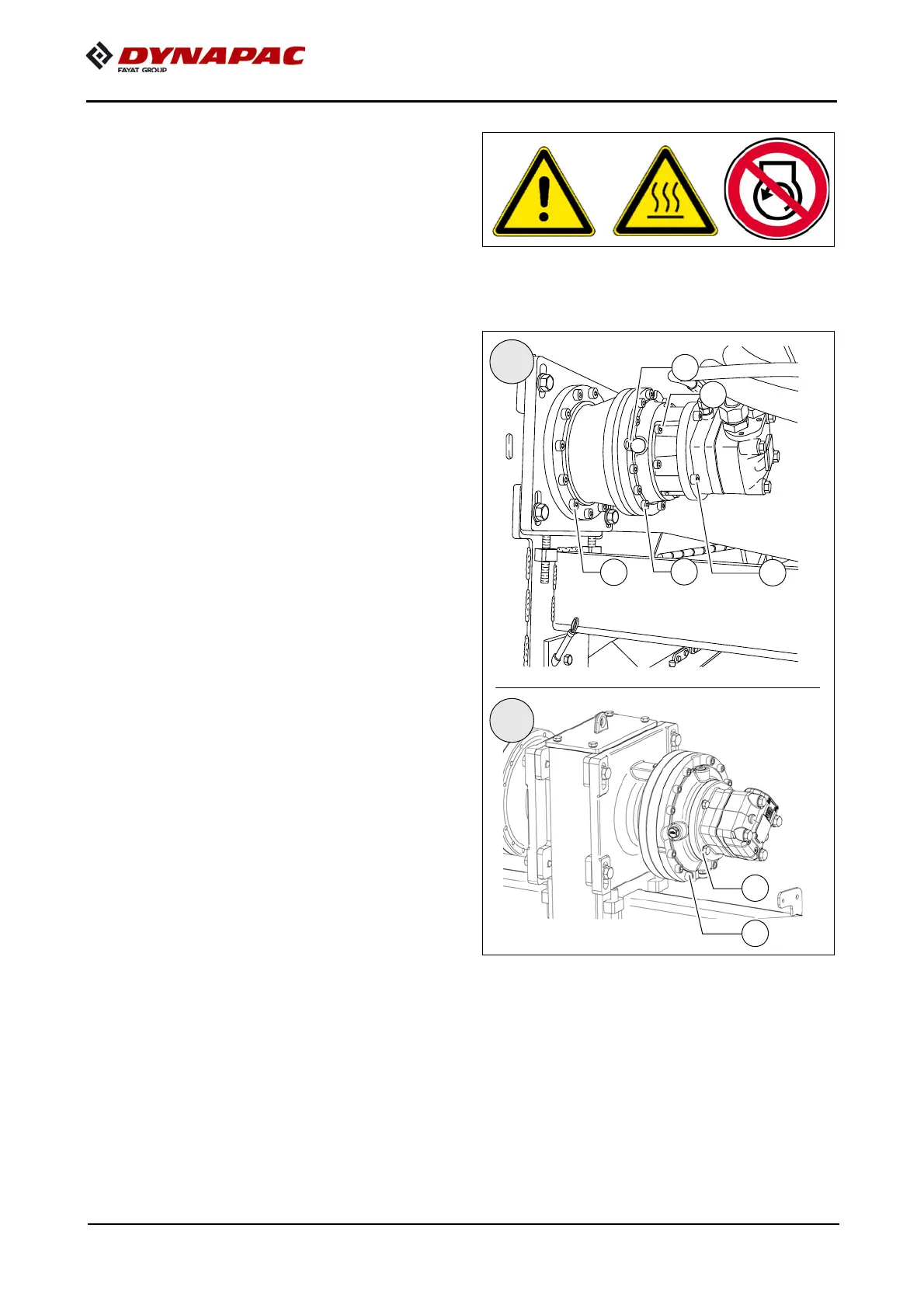

Please check which gear version is used in your vehicle.
- Tighten to the following torques if nec-
essary:
-(A): 86 Nm
-(B): 83 Nm
- (C): 49 Nm
- (D): 49 Nm
-(E): 86 Nm
m
Check that each bolt has attained the full
tightening torque and note the corre-
sponding tightening pattern whilst doing
so!
A
E
B
C
D
E
B
I
II
