Rotary beacon (o)
m
The function of the rotary beacon must
be checked daily before starting work.

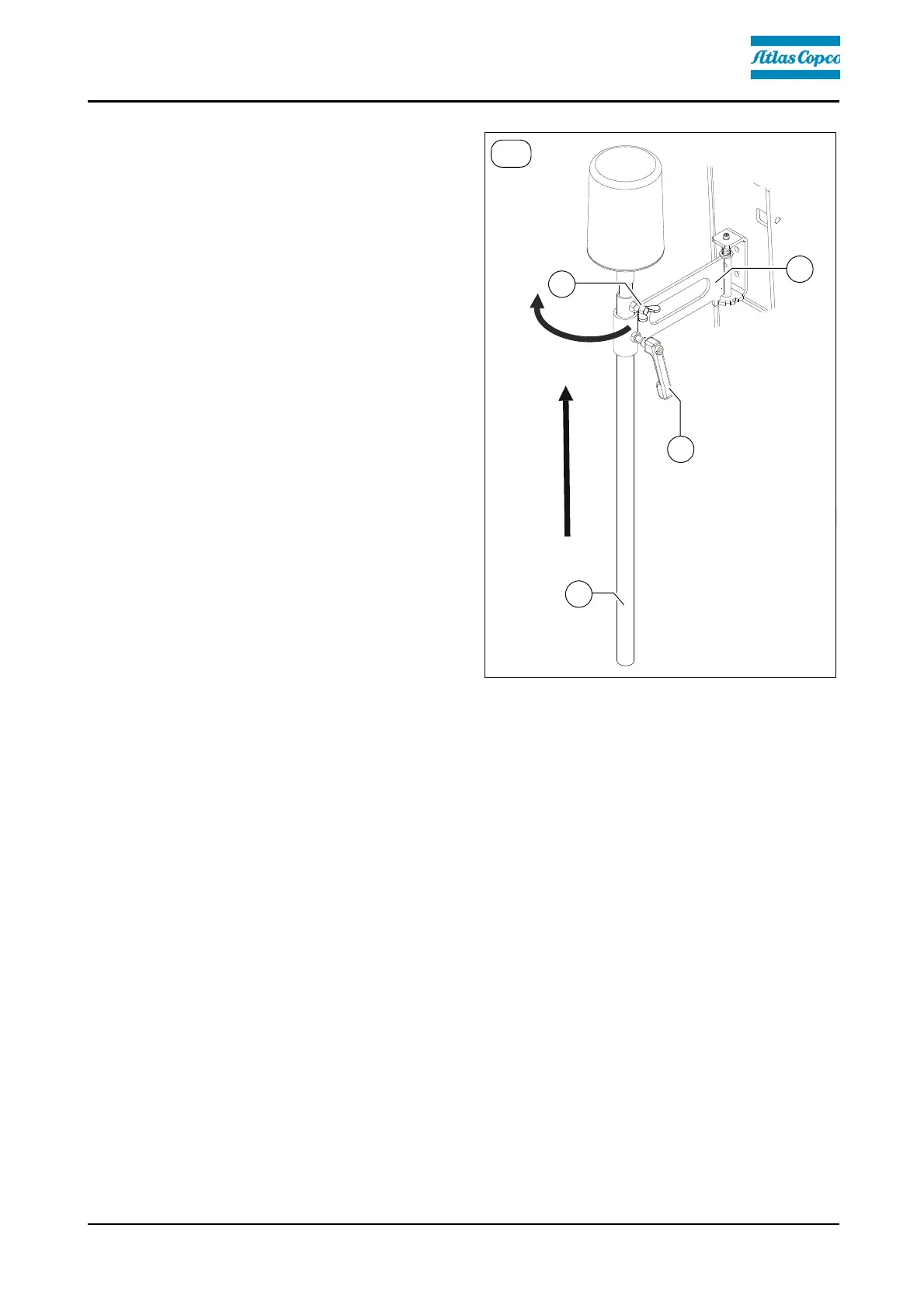

- Place the rotary beacon onto the plug-
in contact and secure with a wing
bolt (1).
- Raise the bracket (2), swivel to the
outer position and allow to engage
there
- Slide the rotary beacon with tube (3) to
the desired height and secure with the
clamping bolt (4).
- Activate the function on the operating
panel as necessary.
A
The rotary beacon is easy to remove and
should be stored securely at the end of
work.
