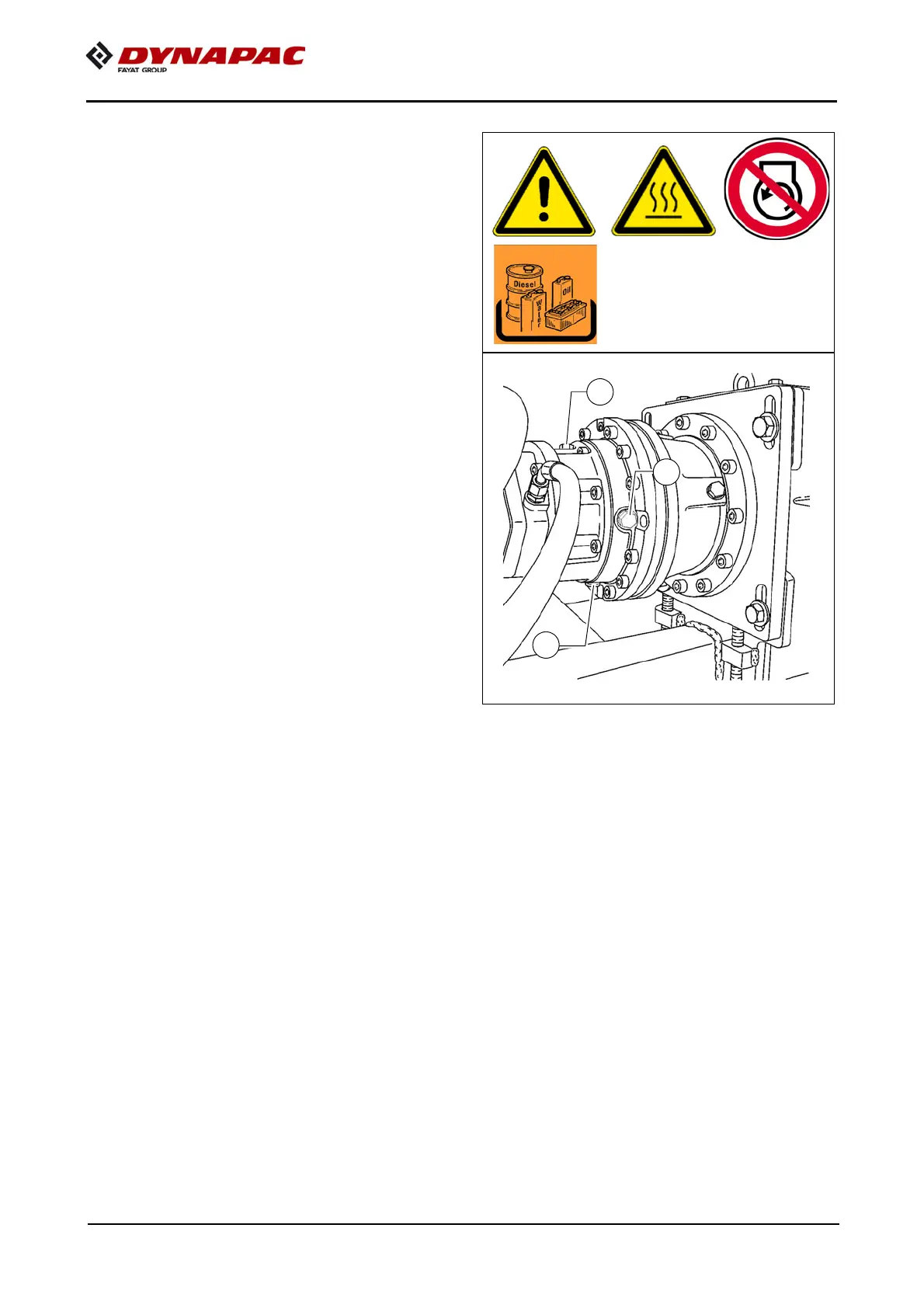

Auger planetary gear (2)
-For oil level check unscrew and re-
move the inspection bolt (A).
A
When oil level is correct, the oil comes
up to the lower edge of the inspection
bore or a small amount of oil escapes
through the aperture.
For filling in the oil:
- Unscrew inspection screw (A) and fill-
er screw (B).
- Fill in the specified oil into the filler
bore at (B) until the oil level has
reached the lower edge of the inspec-
tion bore (A).
- Screw the filler (B) and inspection
screws (A) back in.
To change oil:
A
The oil should be changed when at oper-
ating temperature.
- Unscrew the filler screw (B) and drain
plug (C).
- Drain the oil.
- Screw the drain plug (C) back in.
- Unscrew the inspection screw (A).
- Fill the specified oil into the filler bore at (B) until the oil level has reached the lower
edge of the inspection bore (A).
- Screw the filler (B) and inspection screws (A) back in.
