Dynapac SD2500C - 5 Levelling; 5.1 Slope controller

E 10 26
5 Levelling
5.1 Slope controller
m
During operation, no work may be car-
ried out on the slope control linkage or
the slope controller!

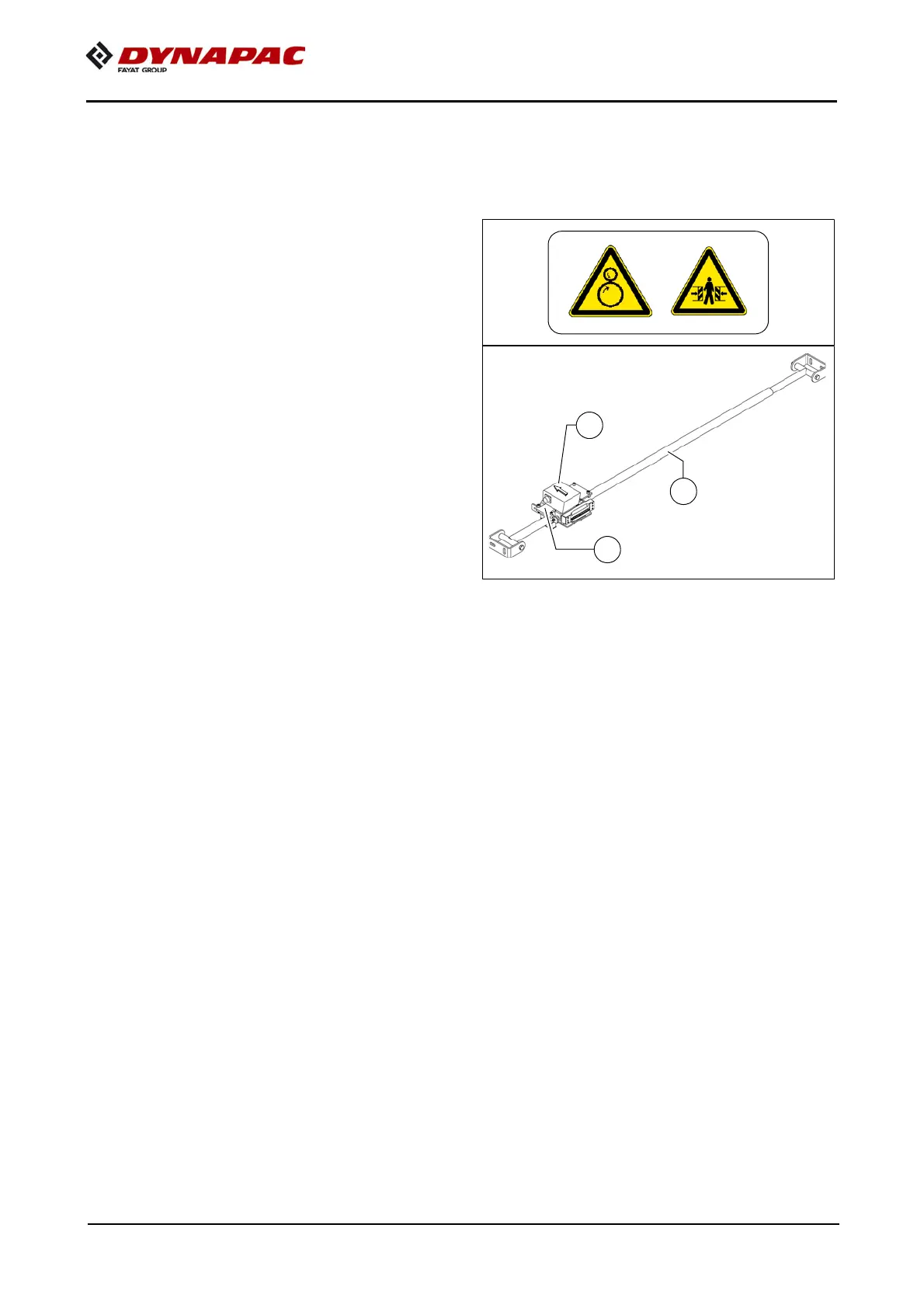

- Mount the slope control linkage (1) in
the intended position between the two
crossbeams.
- Mount the slope controller (2) on
the slope control linkage's retaining
plate (3).
A
Four securing holes are provided for
mounting on the sensor's retaining plate.
A
The digital slope controller must be
mounted in such a way that the marking
arrow on the housing points in the direction of travel.
A
The analogue slope controller must be mounted in such a way that the displays for
the operator visibly point backwards.
- Connect the left or right connection cable to the intended handset or vehicle socket.
A
Exhaustive operating instructions can be found in the documentation for the corre-
sponding levelling system.
1
2
3
