D 41 20

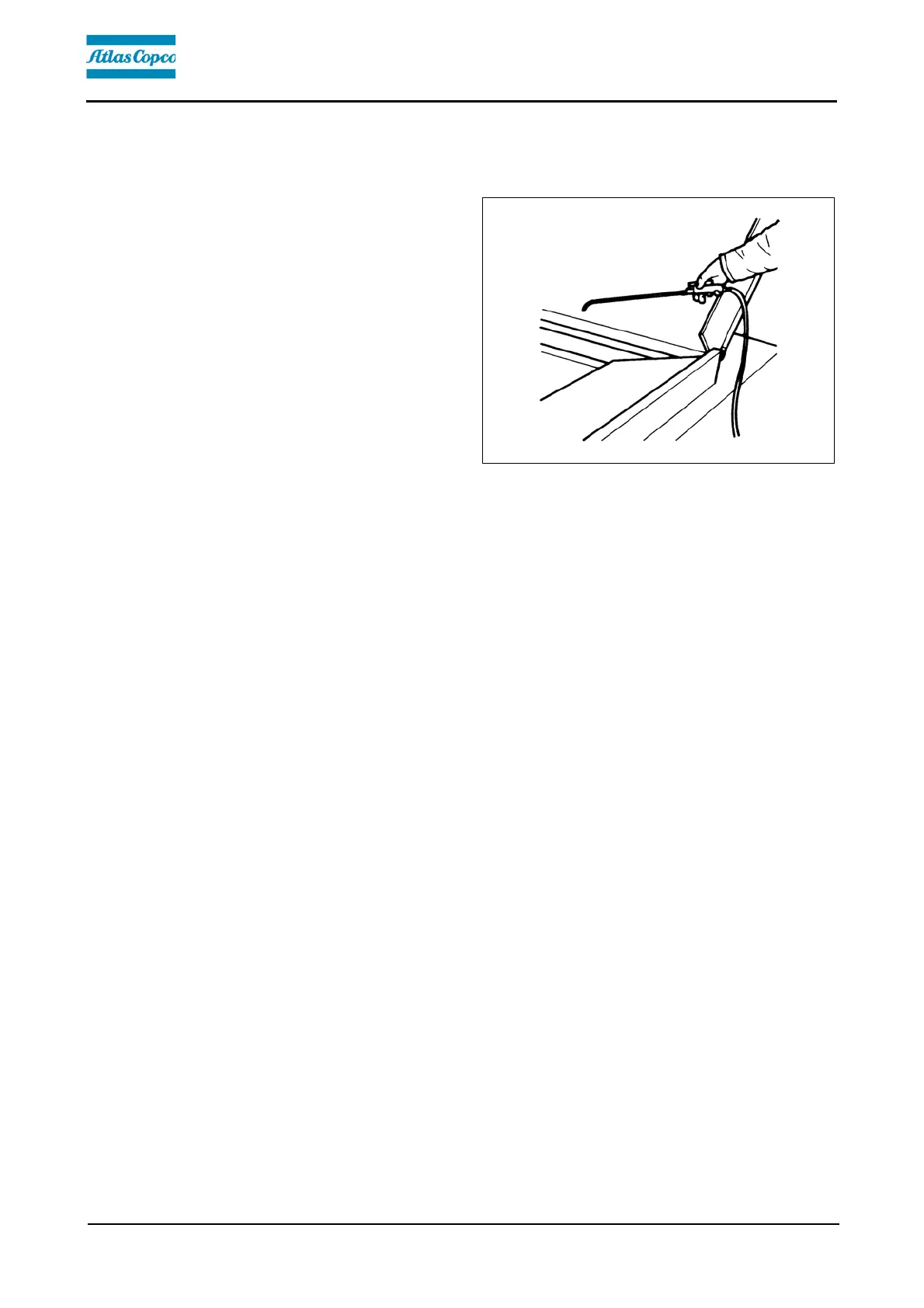

1.3 Preparations for paving

Separator fluid

Spray the parts coming into contact with

asphalt (hopper, screed, auger, push

roller) with a separator fluid.

Do not use diesel fuel as it dissolves the

bitumen (prohibited in Germany!).

Screed heater system

Switch on the screed heater approx. 15–30 minutes (depending on the ambient tem-

perature) before paving begins. Warming up prevents the material from sticking to the

screed plates.
