Separator fluid spraying system (o)
Used to spray the parts coming into con-
tact with asphalt with a separator emul-
sion.

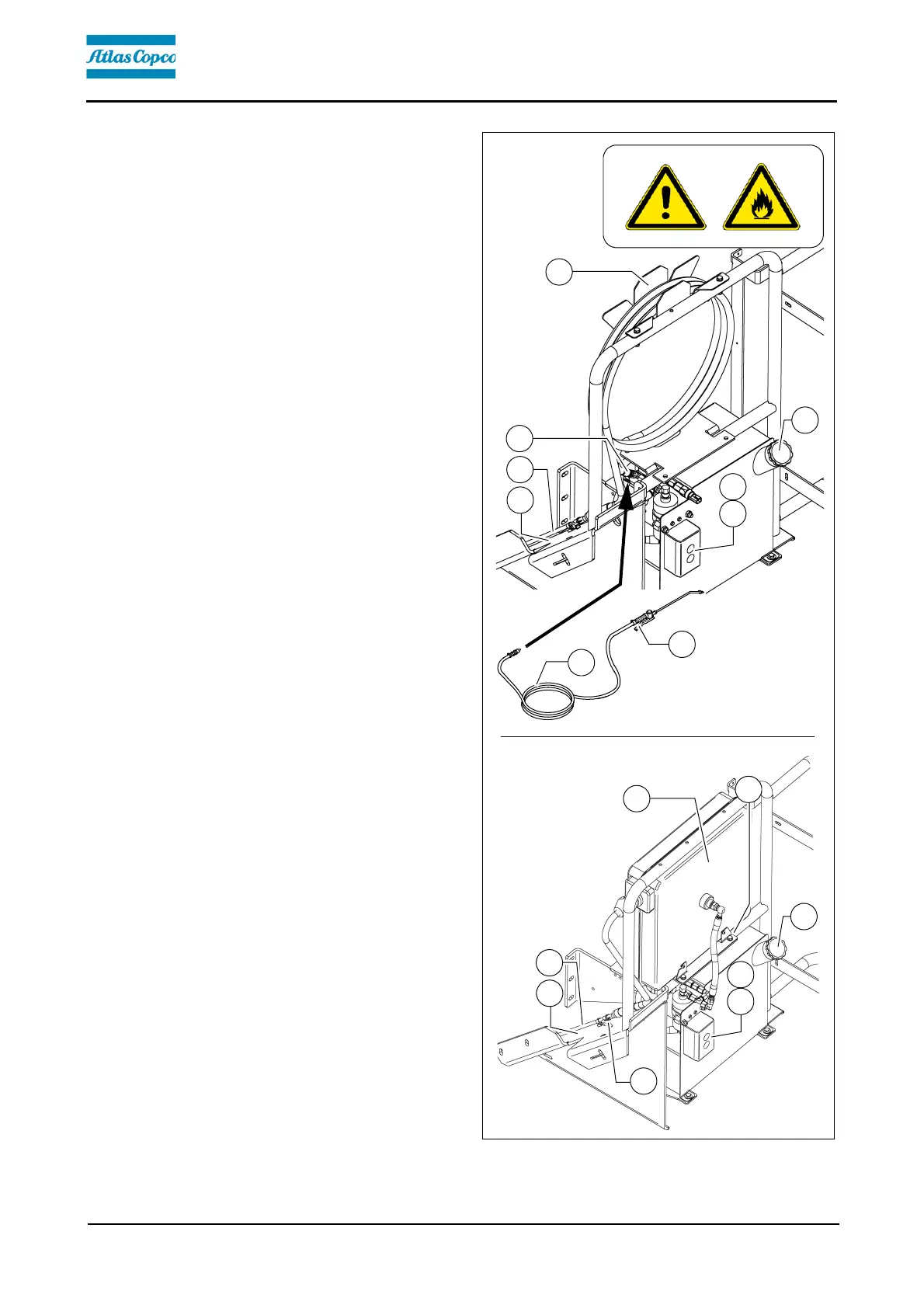

- Connect the spray hose (1) with quick-
action coupling (2).
m
Only switch on the spraying system
when the diesel engine is running; other-
wise, the battery will be discharged.
Switch off after use.
A
A permanently installed hose package
(3) for the spraying system is available
as an option.
- Pull the hose out of the device until a
click is audible. When released, the
hose automatically engages here. The
hose is automatically retracted into the
guide after pulling and discharging
again.
- Actuate button (4) to activate and de-
activate the pump.
- The indicator lamp (5) lights up when
the emulsion pump is running.
- Actuate the manual valve (6) to spray.
f
Do not spray into open flame or on hot
surface! Danger of explosion!
A
The spraying system is fed by a canister
(7) at the vehicle step.
f
Refill the canister only while the vehicle
is stationary!
- If the system is not in use, place the
spray lance (8) in the provided holder
(9).
- If the spray hose is not in use, it can be
placed in its bracket (10).
3
10
7
9
4
5
9
2
8
6
1
6
4
5
7
9
8
