3.1 Mounting extension parts
Mounting the material shaft and auger extension

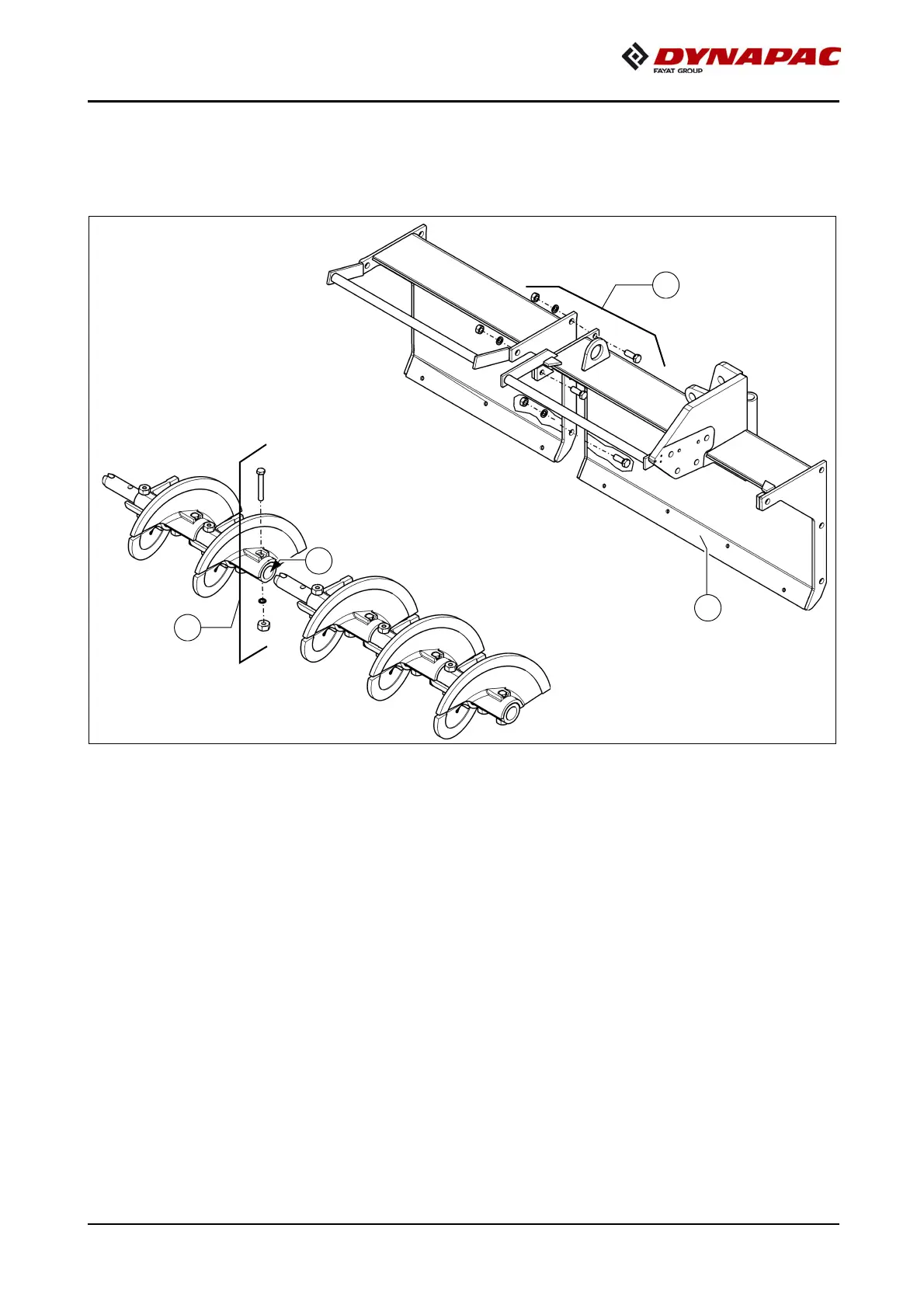

- Secure the additional material shaft (1) to the basic unit or the adjacent material
shaft with the relevant assembly parts (2) (bolts, washers, nuts).
- Dismantle the assembly parts (3) of the adjacent auger blade, remove plug (4).
- Insert the auger shaft extension into the auger shaft.
- Reinstall the previously removed assembly parts (3) and simultaneously tighten the
auger shaft bolts.
- Insert the plug (4) at the end of the auger.
A
Depending on the operating width, the outer auger bearing and/or auger end bearing
must be installed:
