Mounting the distributor box
A
The distributor box should be mounted
in such a way that simple wiring to the
controller and the sensors is possible.
m
The connections for the sensors should
always point down to prevent water from
entering the distributor box. Inlets which
are not required must be sealed with
dust caps.

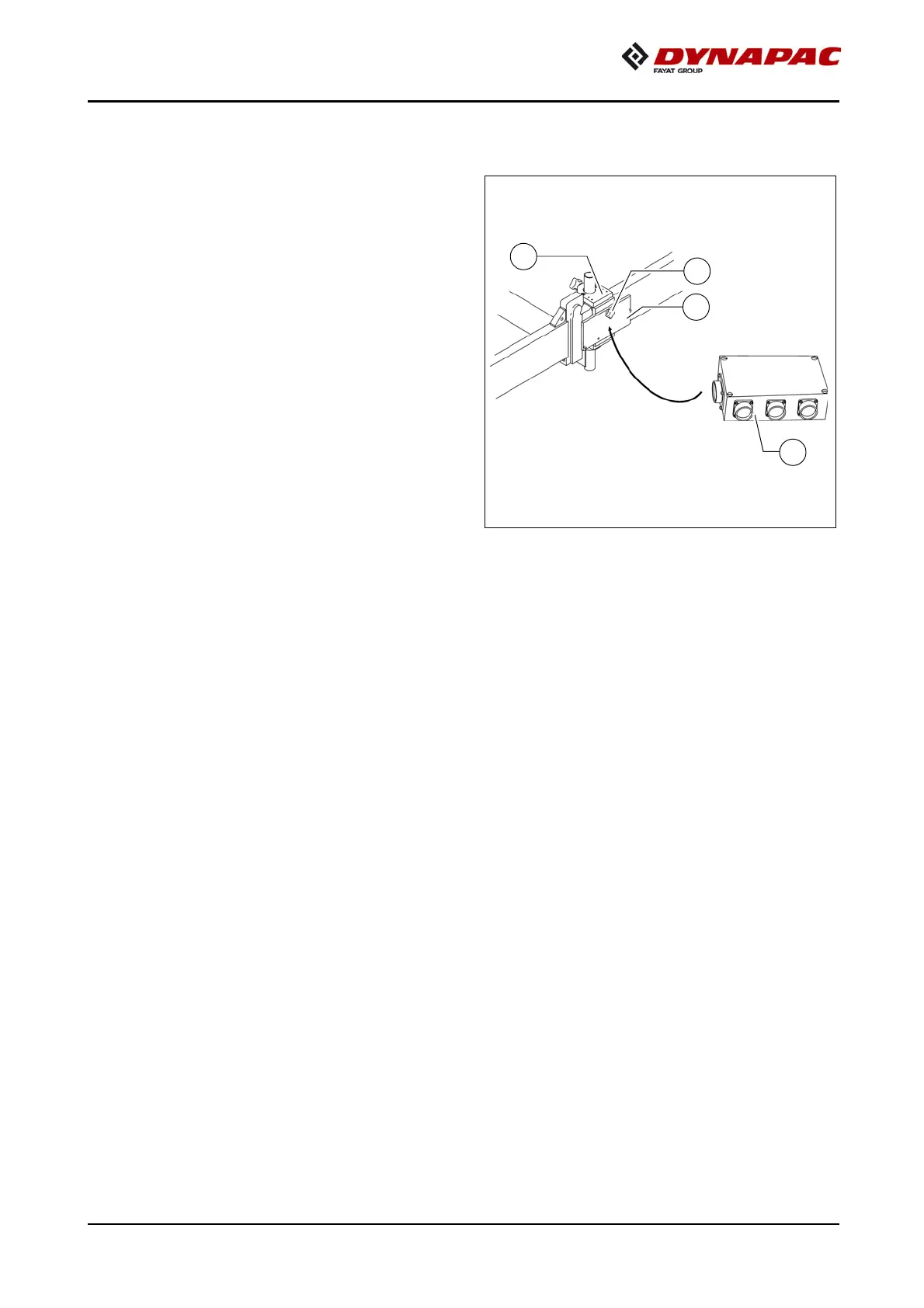

- Allen head bolts are used to initially
mount the distributor box (1) on the
mounting plate (2).
A
The input connector always points in the
direction of travel.
- Then mount the mounting plate on one of the two sliding brackets (4) on the centre
element using a star handle bolt (3).
m
Mounting the big ski on the right-hand side of the vehicle:
To meet the requirement that the input connector always points in the direction of
travel, the sliding bracket, on which the distributor box is to be mounted, must be
pushed onto the big ski from the inside to the outside here.
4
1
2
3
