3 Auger extension

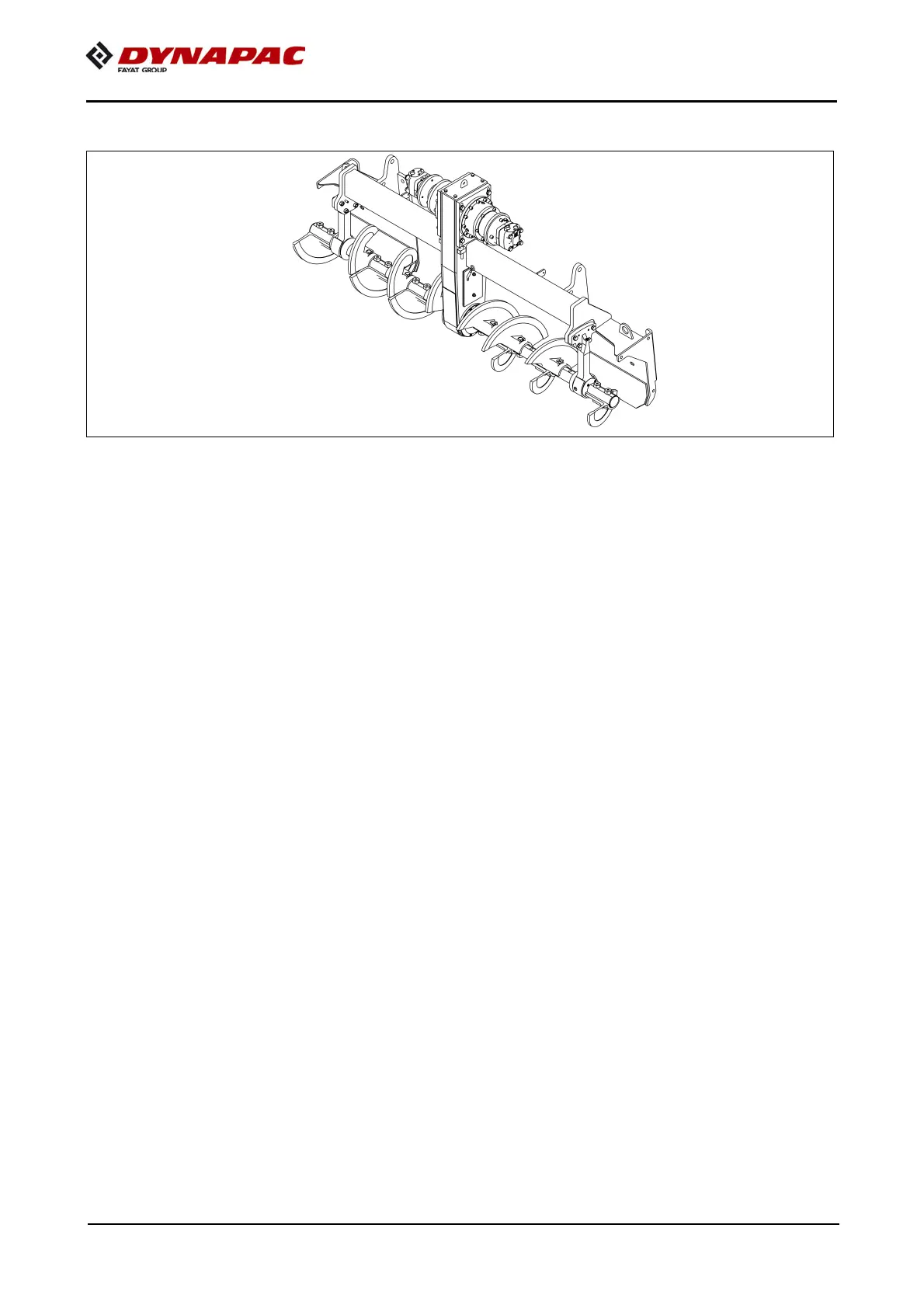

Depending on the type of screed, the most diversified working widths can be reached.
A
Auger and screed extension must match.
Refer to the appropriate chapter "Set-up and modification" in the Operating instruc-
tions for the screed:
– screed extension chart
To attain the desired working width, the respective screed extensions, side plates, au-
gers, tunnel plates or cut-off shoes must be mounted.
For working widths of more than 3.00 m, the auger should be fitted with extension
parts on both sides to improve material distribution and to reduce the wear.
f
The diesel engine must be switched off whenever work is performed on the auger.
Danger of injuries!
A
If the operating conditions on the construction site permit an auger extension to be
fitted, or render this necessary, always additionally fit the outer auger bearings.
For auger width extensions with an outer auger bearing on the basic unit, fit the short-
er auger blade to the bearing. Otherwise, destruction between the auger blade and
bearing may occur.
