Dynapac SD2500C User Manual

E 10 22

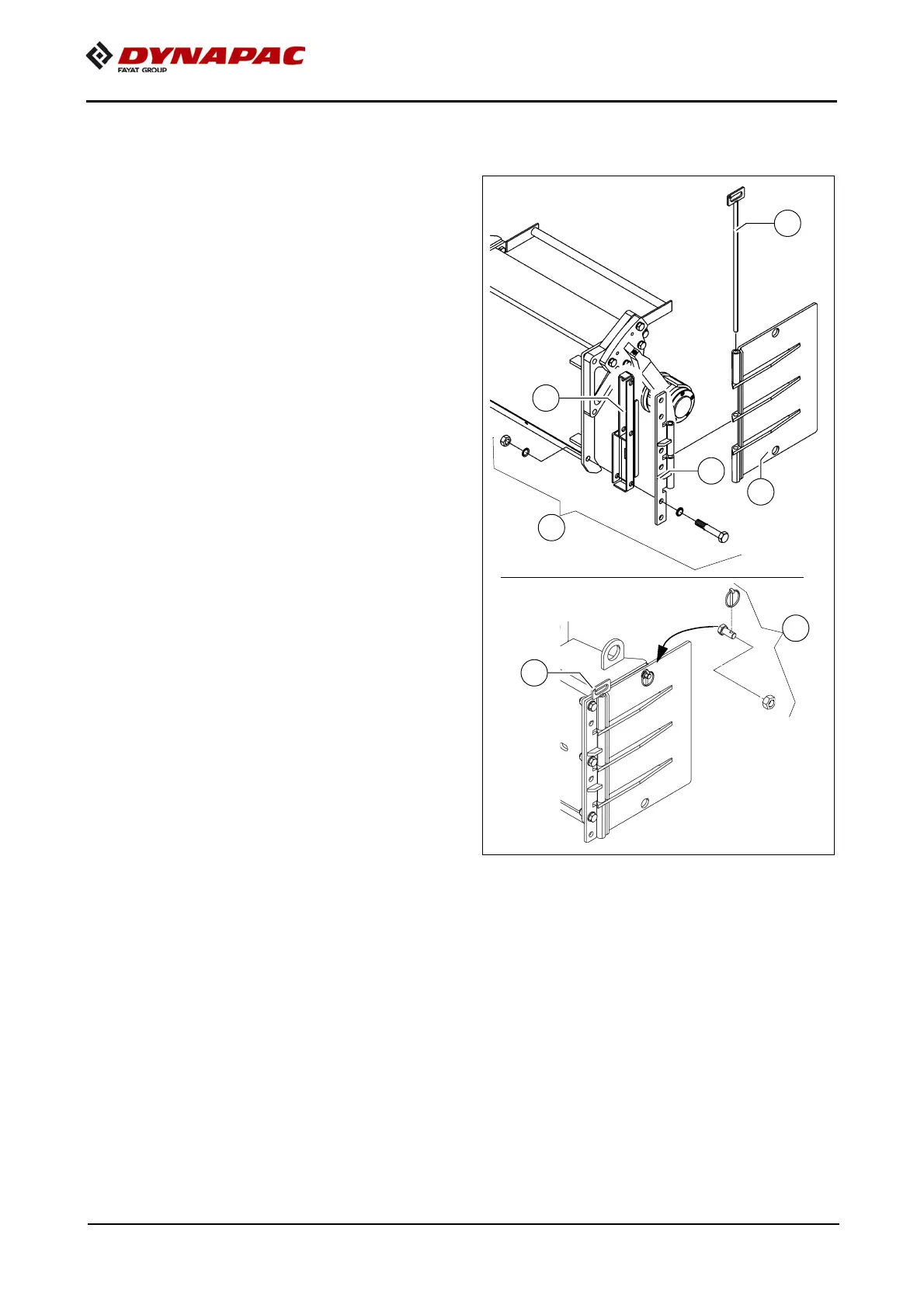

3.5 Material shaft, hinged
To close the gap between auger box and
side board of the screen, hinged
material shafts can be fitted to both sides
of the auger.
A
The hinged material shafts swivel up
due to the material pressure which is
exerted and swivel in due to screed
retraction.
- Mount the left/right material shafts on
the auger box with the relevant
assembly parts (1).
A
If a terminal bearing is mounted for the
existing auger width, the adapter plate
(2) also has to be fitted.
- Fit the plate (3) to the hinge (5) using
the hinge rod (4).
A
The hinged material shaft can be
secured with the assembly parts (6) in
swivelled in position when transporting
the machine in its basic width.
A
The assembly parts (6) can be kept at
the hole (7).
2
4
1
3
5
6
7
