E 10 39

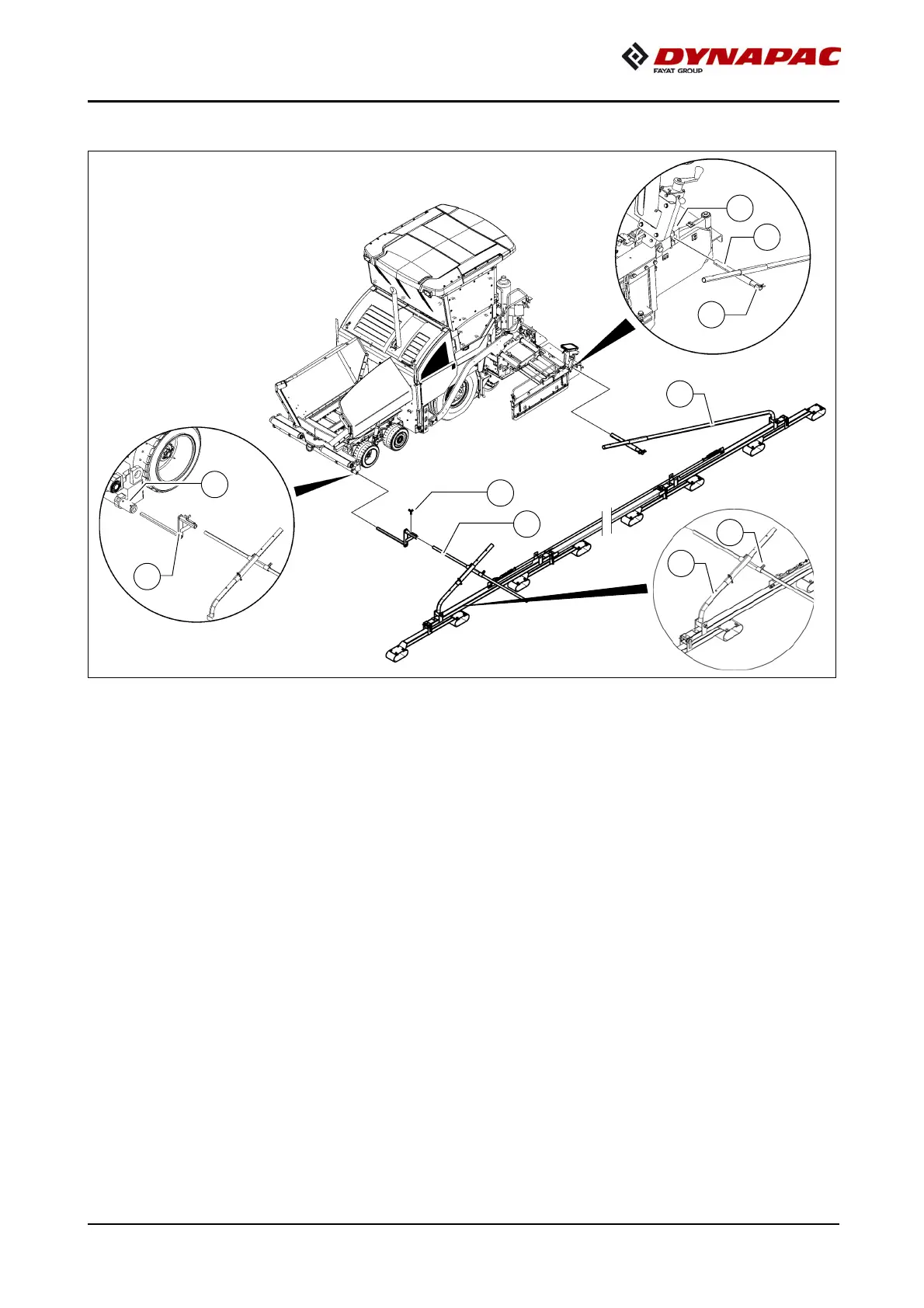

5.6 Levelling shoe 6m, 9m
The levelling shoe includes a shoe that moves at several joints and runs on the ref-
erence surface, together with a rotary sensor that scans a reference wire on the shoe.
The levelling shoe is ideal for compensating for long bumps in the ground.
It is used on roadworks sections without tight bends.
- Adjust the working width by extending the screed.
- Push the levelling piece (1) in the extension pipe (2). Tighten the clamping bolts at
the extension pipe.
- Push the extension (3) into the levelling piece (1). Secure properly with wing nuts
(4).
- Insert the holding tube (5) in the clamp bracket (6) on the side board. Tighten the
bolts of the clamp bracket correctly.
- Fix the front pull rod (7) in the holding tube with a spring cotter pin so that the shoe
lies freely on the ground at the front.
A
At the back, the shoe automatically lies on the ground on account of the freely moving
pull rod (8).
2
6
1
5
4
3
7
9
8
10
