2 Terminal error messages

The following error messages appear directly in the display when corresponding er-

rors occur.

Press (B) to confirm and call up the corresponding error list.

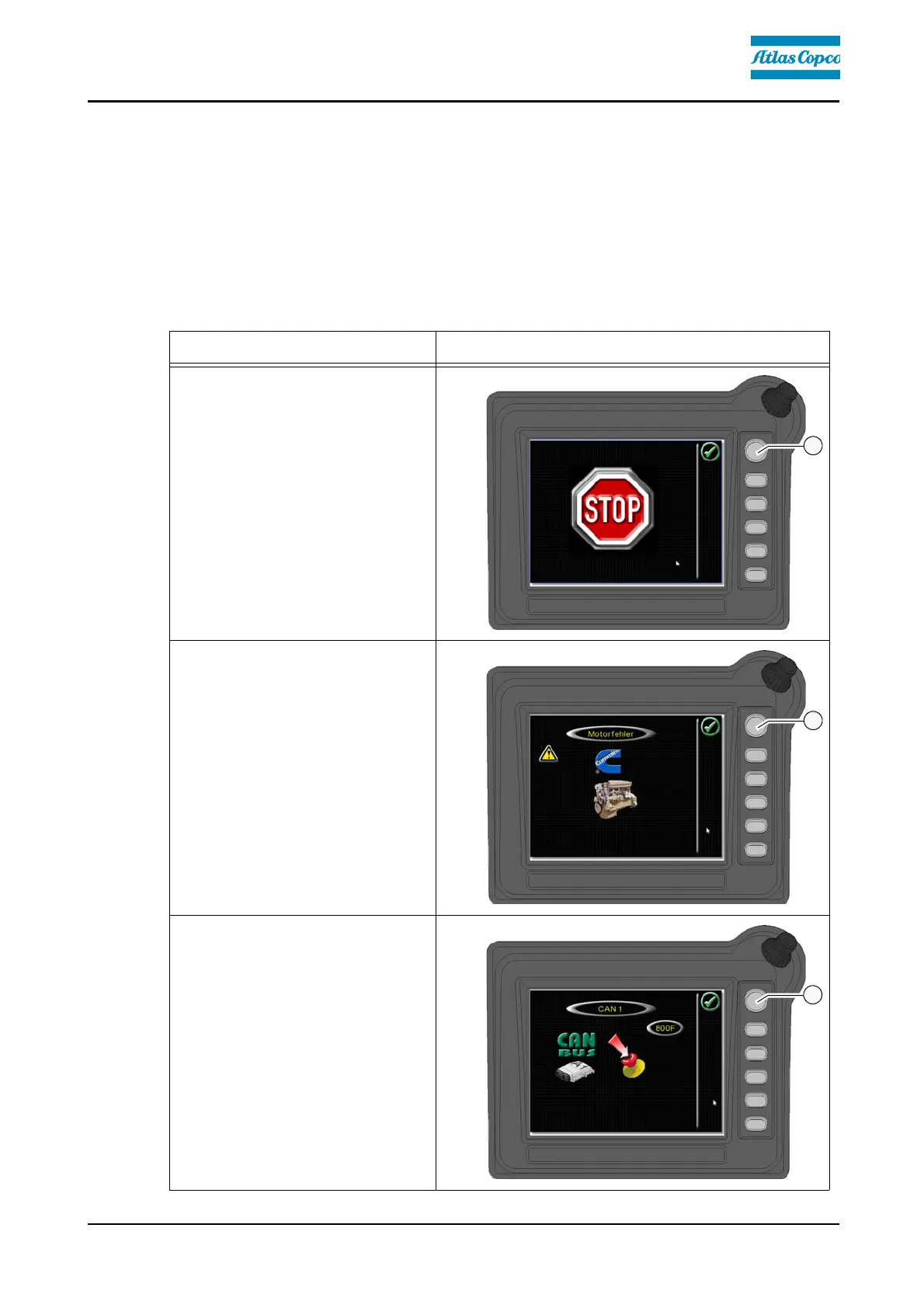

Error No. / meaning Display

Error message "Stop"

- Display for all error mes-

sages with machine stop.

Error message "Engine mal-

function"

- Display for all engine stop

error messages.

Error message "800F"

- Emergency stop button

actuated or communication

master display interrupted.
