External starting (starting aid)
A
The engine can be started with the help of an external power source if the batteries
are empty and the starter no longer turns.
Suitable power sources are:
- Other vehicles with a 24 V system
- Additional 24 V battery
- Start device that is suitable for external starting (24 V/90 A).
m
Standard chargers or quick chargers cannot be used for external starting.
To externally start the engine:
- Switch on the ignition (11), set the drive lever (13) to the centre position and the
travel drive preselector (15) to minimum.
m

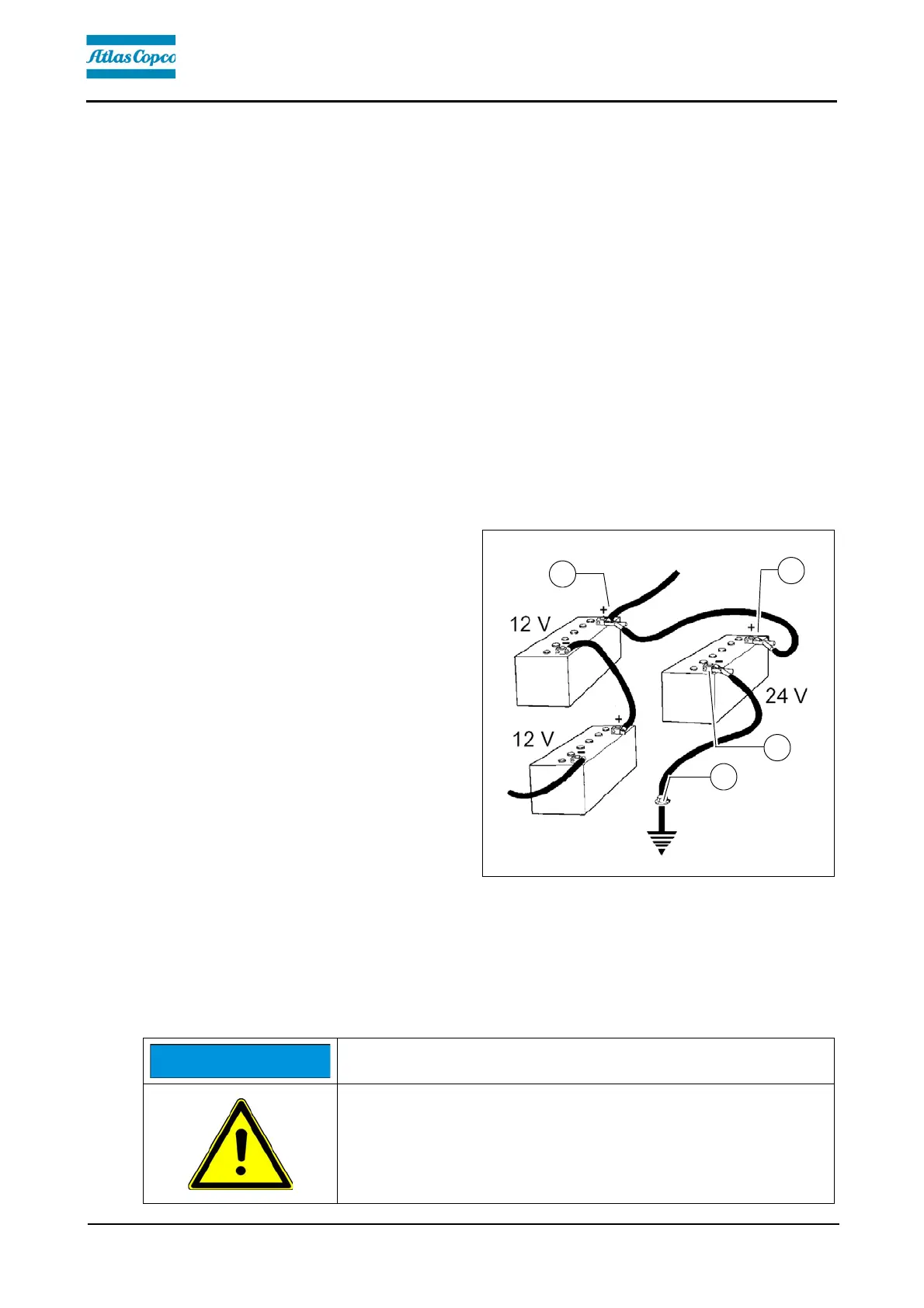

The starting aid cable must be connect-
ed to 24 V.
- First connect the positive terminal (1)
of the starting aid battery to the posi-
tive terminal (2) of the vehicle battery.
- Then connect the negative terminal
(3) of the starting aid battery to the
ground of the discharged vehicle, e.g.
to the engine block or to a bolt (4) on
the vehicle frame.
f
Do not connect the starting aid cable to
the negative terminal of the discharged
battery! Danger of explosion!
m
Lay the starting aid cable so that it can
be disconnected once the engine is running.
A
It is impossible to start the vehicle, if one of the emergency stop buttons (10) / (120)
is depressed.
(Error shown on the display)
Caution! Possible subsequent damage!
- No additional consumers (light, heater, etc.) may be
switched on when starting.
- Do not switch the consumers on until the engine has
reached a speed of >1000 revs.
