E 10 28
5.4 Setting up the sensor arm
Before starting paving, the sensor arm
must be set, with the grade control sys-
tem, to its reference (cable, kerb, etc.).
A
Sensing should be carried out in the
area of the auger.

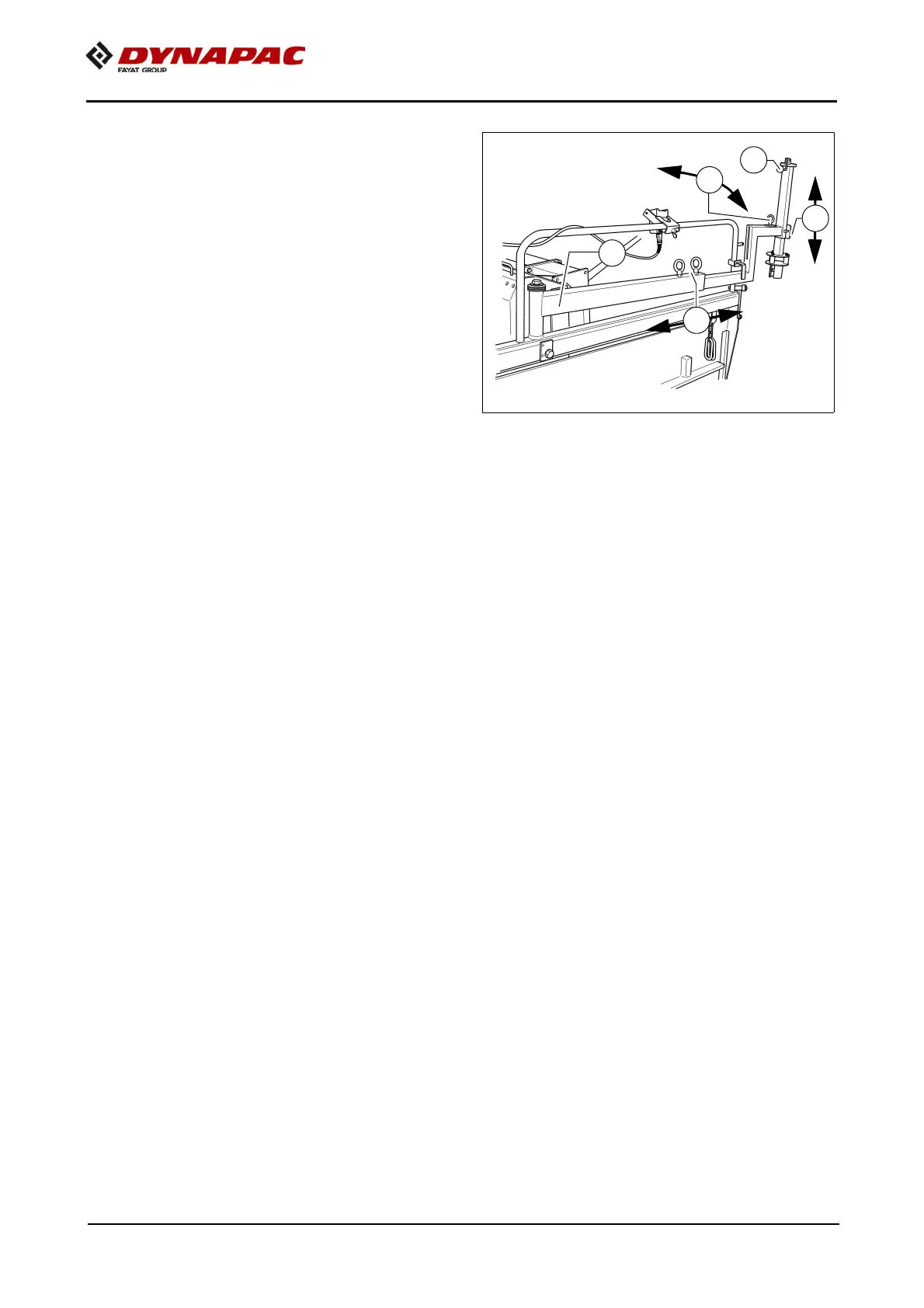

- Swivel the sensor arm (2) over the ref-
erence.
- Use the following options to adjust the
sensor arm precisely:
- After loosening the clamping bolts (3), the sensor arm length can be set up.
- The sensing height can be set by loosening the clamping bolts (4).
- Adjustment of the lateral sensing angle is possible at the lock (5).
- Height adjustment for analogue grade sensors is carried out by means of a crank
(6). To lock it, the crank is inserted into one of the available notches following the
adjustment work.
A
All assembly parts and clamping points must be tightened properly to ensure safe and
precise sensor arm operation!
- Connect the left or right grade control system connection cable to the intended
handset or vehicle socket.
A
If the vehicle is to be operated with automatic grade sensing on both sides, the above
described adjustment process must be repeated on the second side.
A
Exhaustive operating instructions can be found in the documentation for the corre-
sponding levelling system.
