Conveyor drive - drive chains (2)

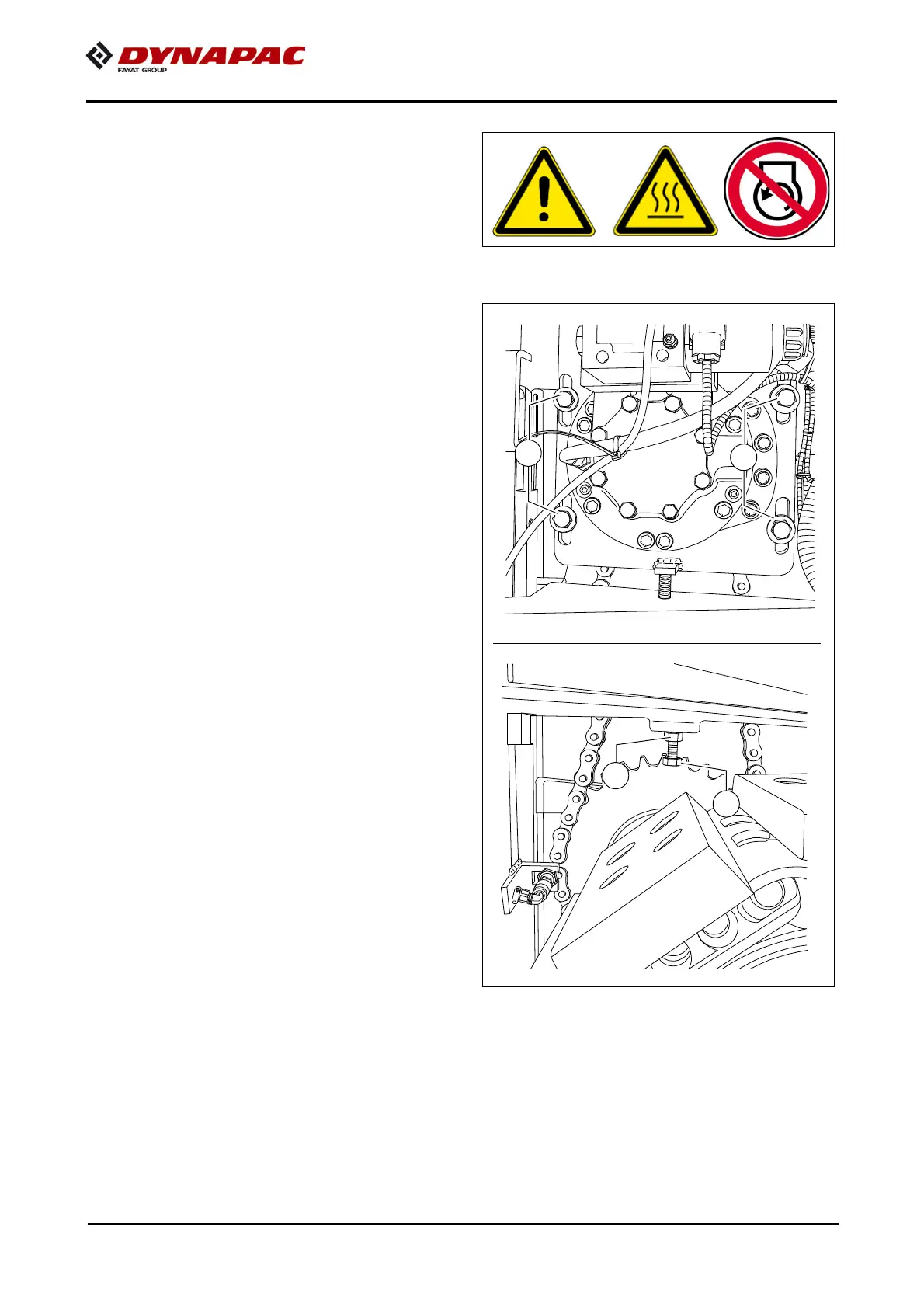

To check the chain tension:
- If the tension has been set properly,
the chain must be able to move freely
approx. 10 - 15 mm.
To re-tension the chains
- Unfasten mounting screws (A) and
lock nut (B) slightly.
- Use the tensioning screw (C) to set the
required chain tightness.
- Retighten mounting screws (A) and
lock nuts (B) correctly.
A
A
B
D
