E 10 9

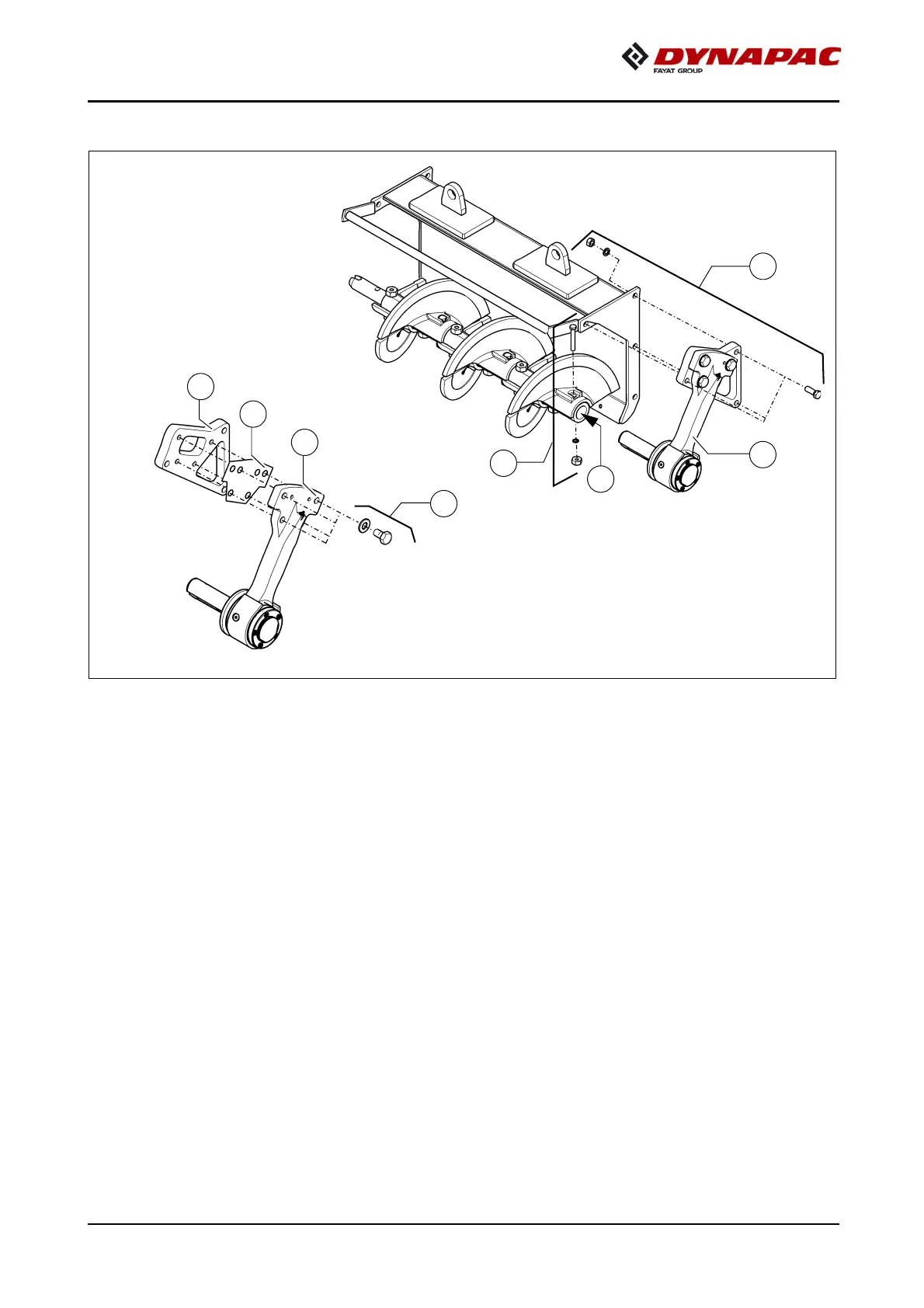

Mounting the auger end bearing
- The auger end bearing must first be pre-assembled:
- Mount the auger end bearing (1) together with the fitted plate (2) on the interme-
diate plate (4) with the relevant assembly parts (3) (bolt, washer).
- Dismantle the assembly parts (5) of the adjacent auger blade, remove plug (6).
- Insert the auger end bearing (7) into the auger extension.
- Secure the auger end bearing to the material shaft with the relevant assembly parts
(8) (bolts, washers, nuts).
- Reinstall the previously removed assembly parts (5) of the auger blade and simul-
taneously tighten the auger shaft and bearing shaft bolts.
- Insert the plug (6) at the end of the auger.
4
2
1
3
6
5
7
8
