2.4 Height adjustment for large working widths / with brace

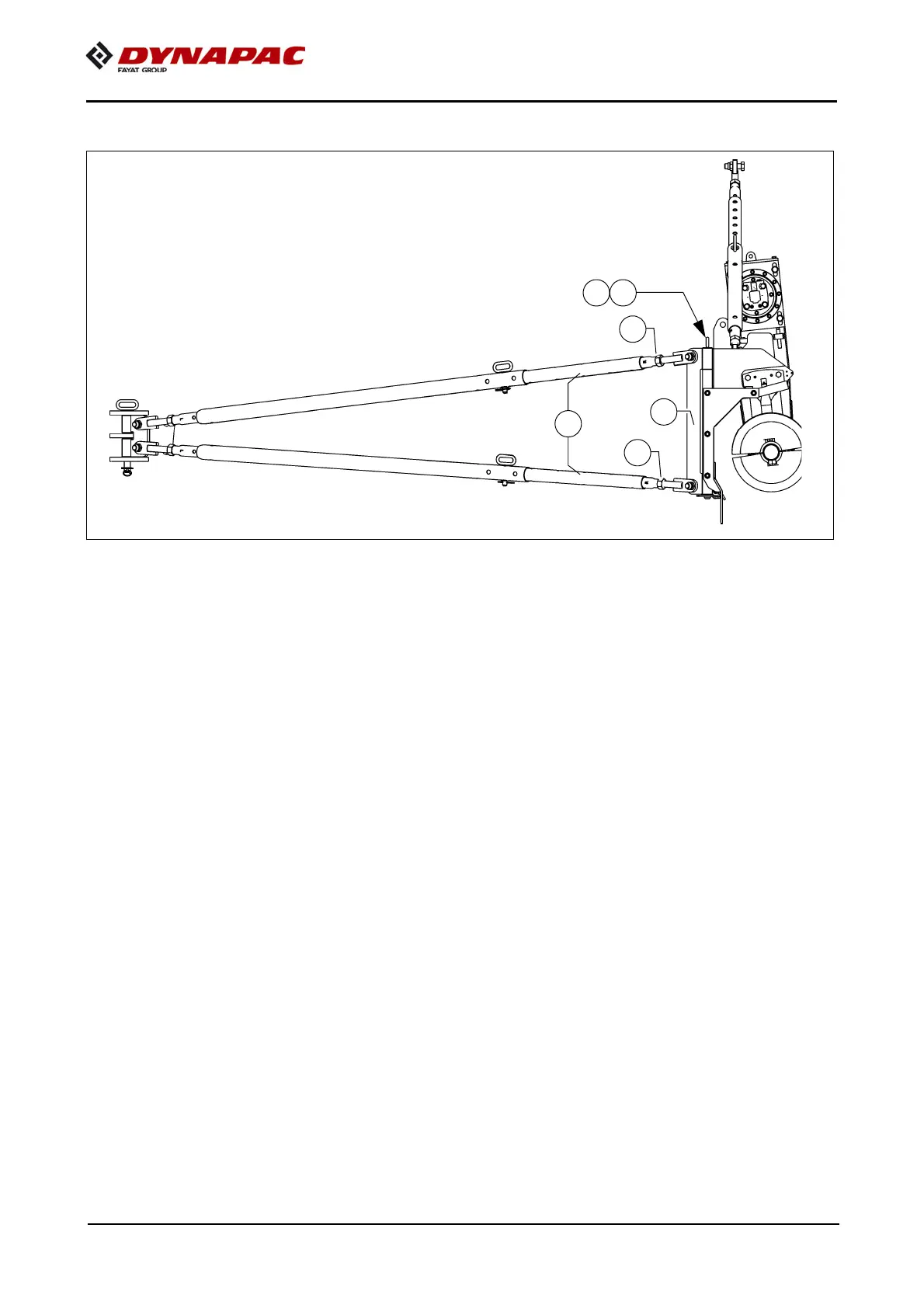

Auger height adjustment for large working widths can be carried out with a hinged
brace:
m
Only adjust the height of the auger with the slewing bracket retaining pins removed!
- Remove the slewing bracket (3) split pin (1) and retaining pin (2) on both sides of
the vehicle.
- Push the slewing brackets with braces from the attaching point on the material
shaft.
- Carry out height adjustment.
- Push the slewing brackets with braces onto the attaching point on the material
shaft.
- Install the split pin (1) and retaining pin (2) again.
A
If the retaining pins (2) cannot be inserted in the new position, the braces must be
extended or shortened by rotating the adjustment rods until a continuous bore ena-
bles the retaining pin (2) to be inserted.
- Loosen lock nuts (4).
A
The adjustment rods (5) are each equipped with a bore. A suitable drift can be used
to adjust the length of the adjustment rod here.
1 2
4
4
3
5
