Dynapac SD2500C - Operation with a feeder with slewing belt; Preparations for paving; Separator fluid

E 10 66
A
Depending on the specific use, the reflector plate (1) can be fitted in front of the buck-
et in the middle or to the side of the bucket on the left/right.
- Reflector plate in the middle: fixed with the corresponding clamping levers (2).
- Reflector plate on the side: dismantle reflector plate (1), mount additional retaining
rod (3) and support holder (4) to the required side.
- Fix retaining rod with the corresponding clamping levers (5).
- Mount the reflector plate to the retaining rod with the star handles (6).
- On reaching the required position, fix the pipe extension with the corresponding
clamping levers (7).
m
When the reflector plate is fitted to the side, this increases the basic width of
the vehicle. Note the danger area!
A
The magnetic foil included in the scope of supply of the vehicle must be put on the
reflector plate (1) when in operation.
Operation with a feeder with slewing belt
Preparations for paving

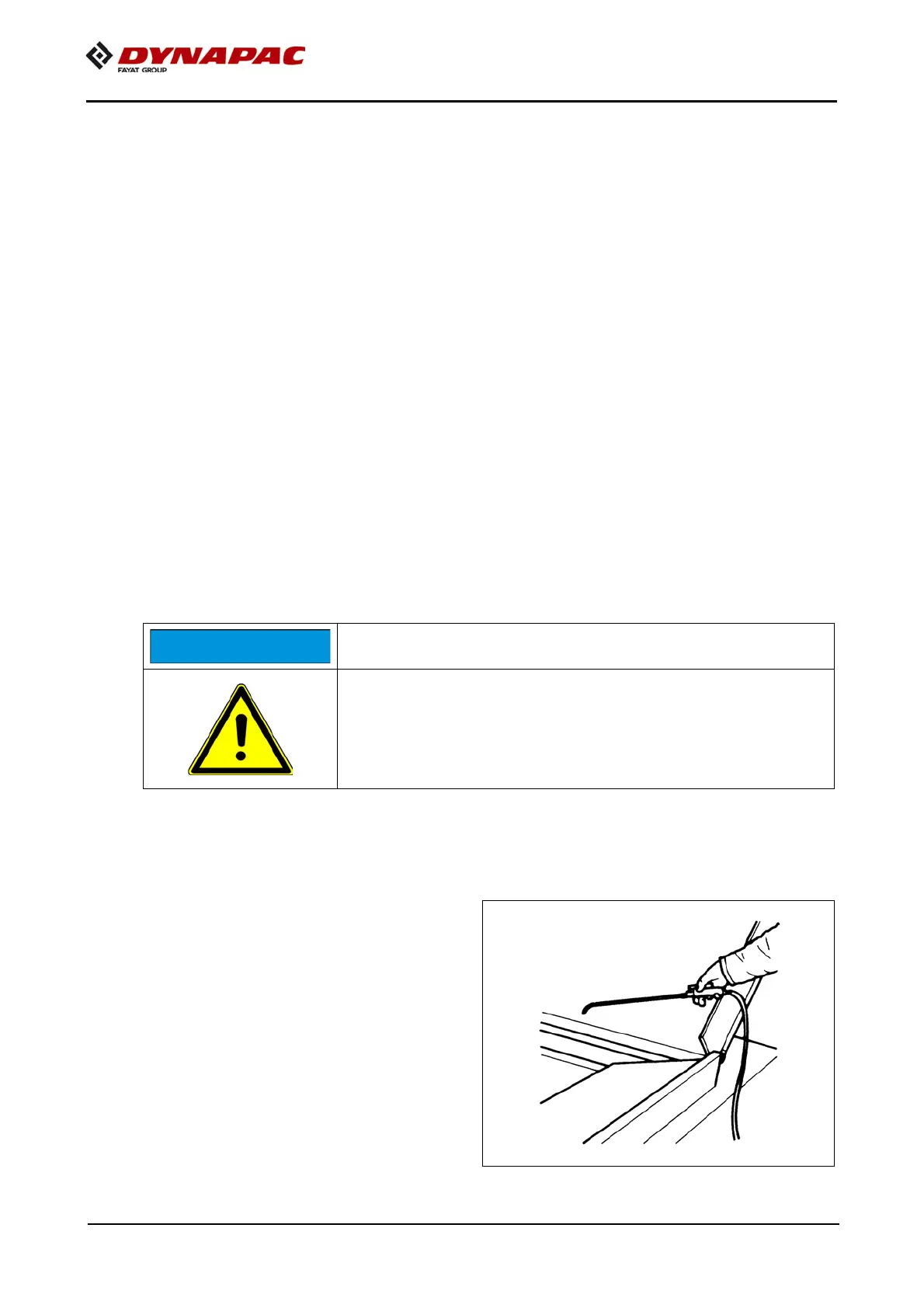

Separator fluid
Spray all surfaces coming into contact with
asphalt material with separator fluid.
m
Do not use diesel fuel as it dissolves
the bitumen!
Caution! Possible damage to parts!
There is a risk of collision when using a feeder with slewing
belt! The bucket must be prepared as follows:
- Swivel the side flaps (8/9) and the front flap (10) down
(loosen corresponding clamping levers).
NOTE
