Dynapac SD2500C - Description of assemblies and functions; Setting up the sensor arm

B 2

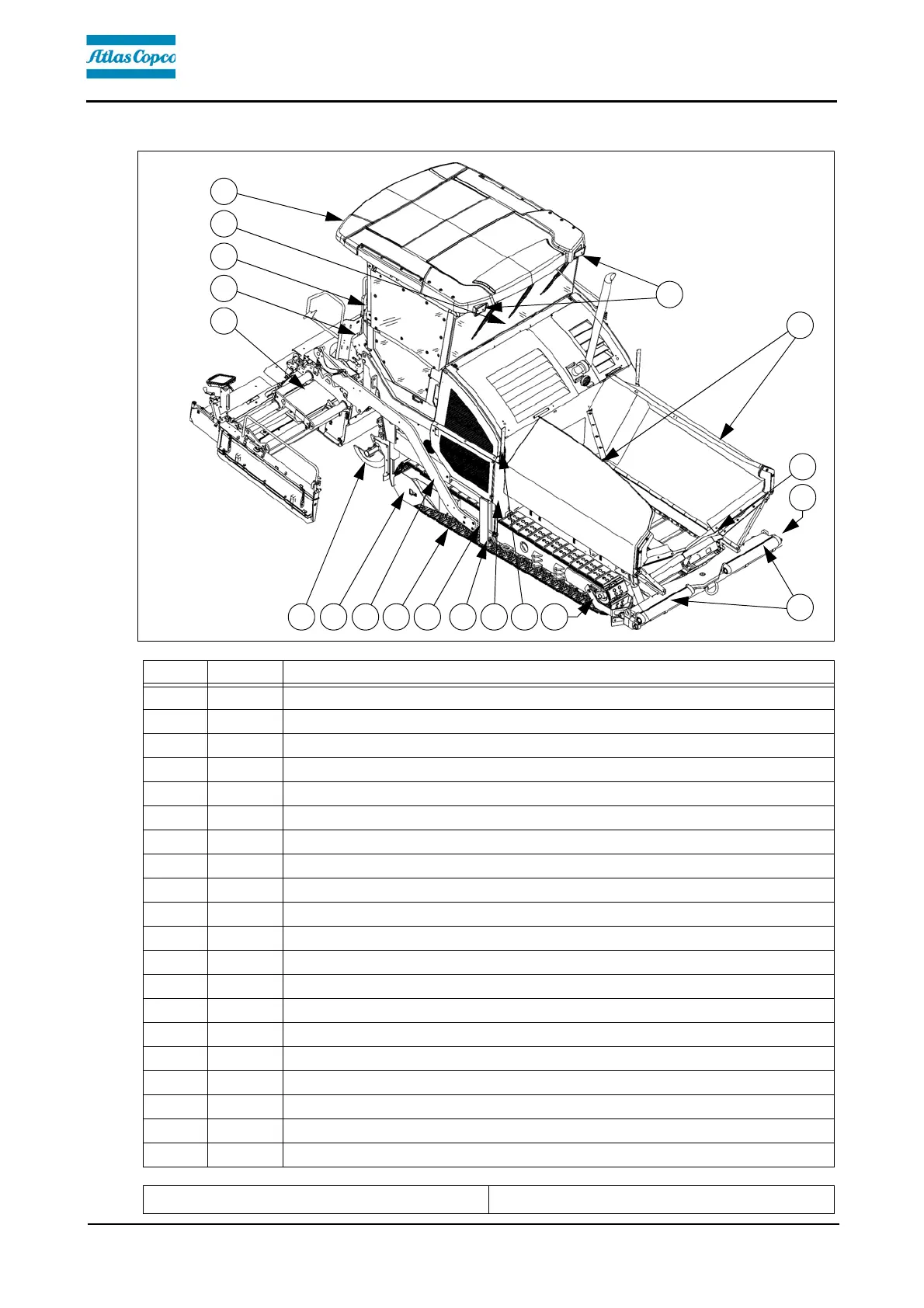

2 Description of assemblies and functions
Item Designation
1
t
Material compartment (hopper)
2
t
Push roller crossbar for truck docking
2
o
Push roller crossbar for truck docking, hydraulically extendable
3
t
Tube for sensor rod (direction indicator) and holder for levelling shoe
4
t
Caterpillar drive
5
t
Levelling cylinder for paving thickness
6
t
Traction roller
7
t
Crossbeam pull bar
8
t
Paving thickness indicator
9
t
Crossbeam
10
t
Travel drive of the caterpillar drive
11
t
Auger
12
t
Screed
13
t
Operator's platform (hydraulically movable)
14
t
Operating panel (can be moved to either side)
15
t
Protective roof
16
o
Working lights
17
t
Lane cleaner
18
o
Hydraulic front hopper flap
19
o
Asphalt fume control system
t = Standard equipment
o = Optional equipment
12
1
2
7 6 5 8910
13
14
15
18
19
411
16
17
3
