Mounting the sensor bracket
A
A sensing system with 3 sensors is pro-
vided over the entire length of the big ski.
One sensor each on the centre element,
and the front and rear end elements.
A
The centre sensor should be mounted
on the ski in precisely the location in
which it would be found during normal
operation (approx. the height of the au-
ger).
The two other sensors should be mount-
ed the same distance away from it.
A

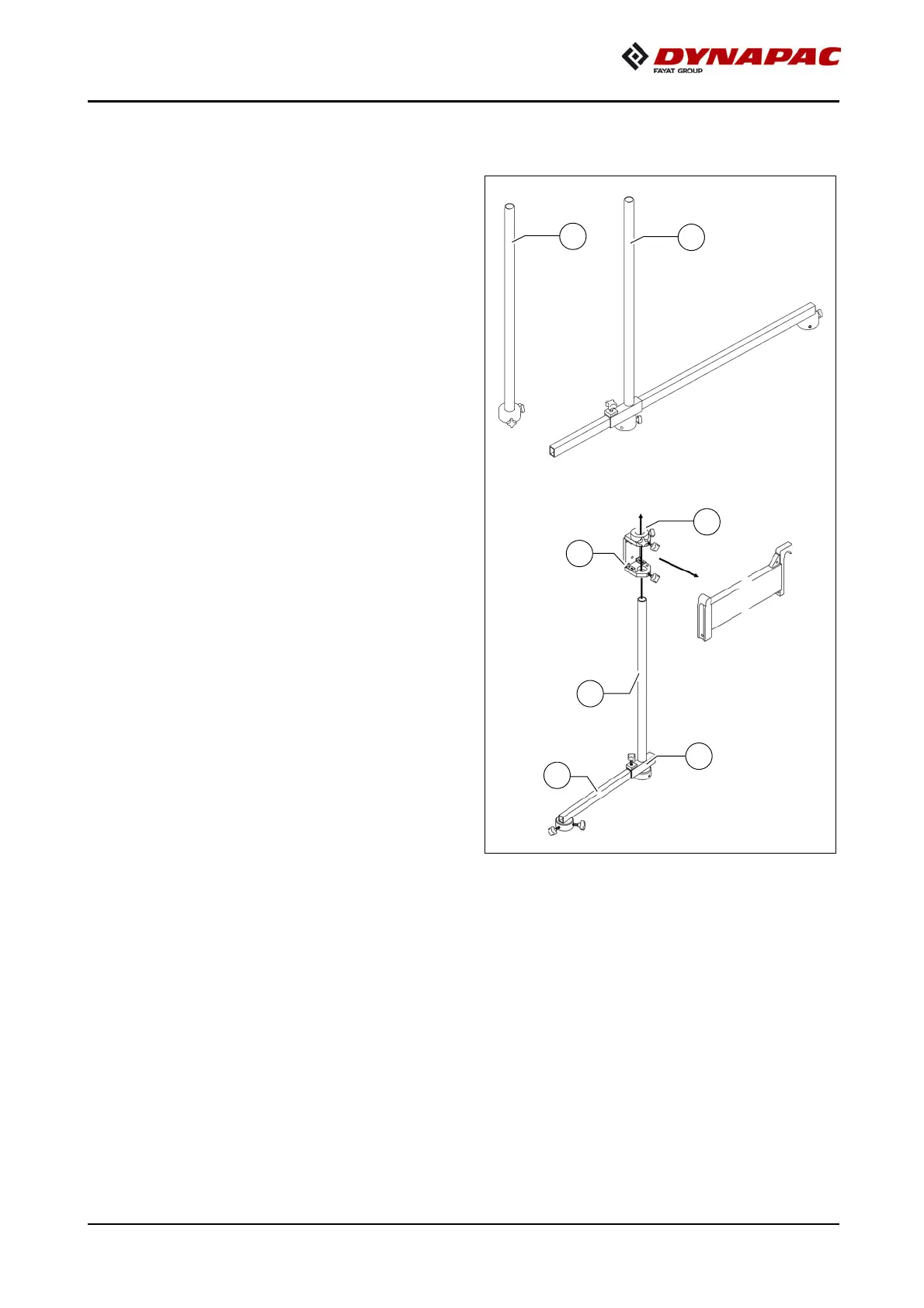

Extendable sensor brackets (1) are
mounted in the two outer positions; the
normal sensor bracket (2) is mounted in
the centre.
- Place the sliding bracket (3) over the
corresponding big ski element from
the inner side.
- Insert the sensor bracket (4) into the
sliding bracket (5) from below and se-
cure with the relevant star handle
bolts.
- Place the clamping ring (6) onto the
sensor bracket tube and secure with
the relevant star handle bolt.
- In the case of the extendable sensor
brackets, slide in the arm extension
(7) and secure in position with the rel-
evant star handle bolt.
5
4
6
6
7
2
1
