D 30 34
Lane clearer (o)

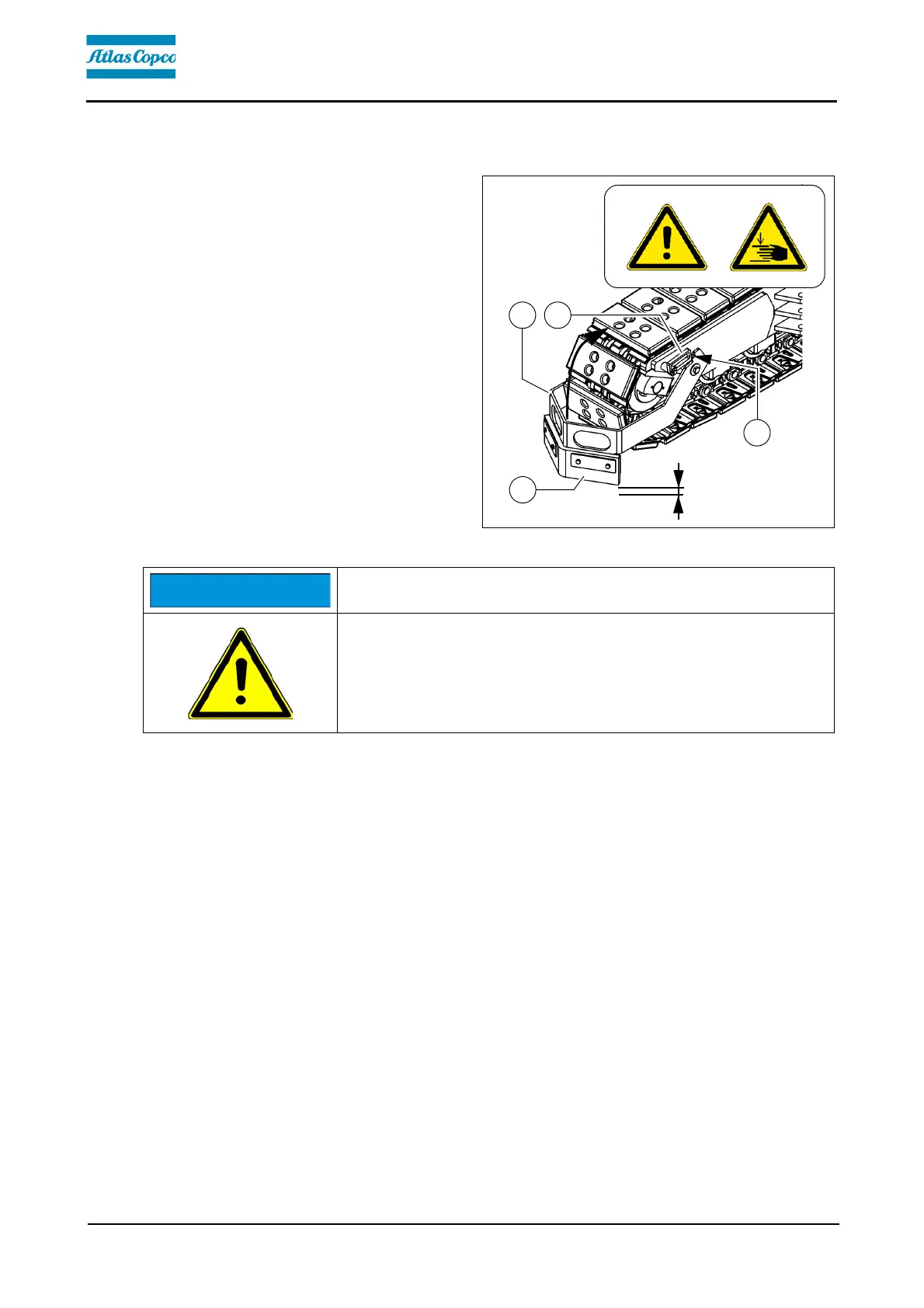

A swivelling lane clearer (1), which de-
flects small obstacles away to one side,
is located in front of both drive units.
A
The lane clearers should only be swiv-
elled down during paving.
Swivelling the lane clearers:
- Swivel the lane clearer (1) up and se-
cure in the uppermost position with a
shackle (2).
- To lower the lane clearer, it must be
lifted a little and the shackle (2) must
be swivelled back.
A
The blade's level above the ground is adjusted with a bolt (4).
Caution! Possible collision of parts
- The lane clearer must be adjusted in the lower setting
with a few mm between the ground and the blade (3).
- When driving up inclines, lock the lane clearer in the
upper position.
NOTE
