E 10 36

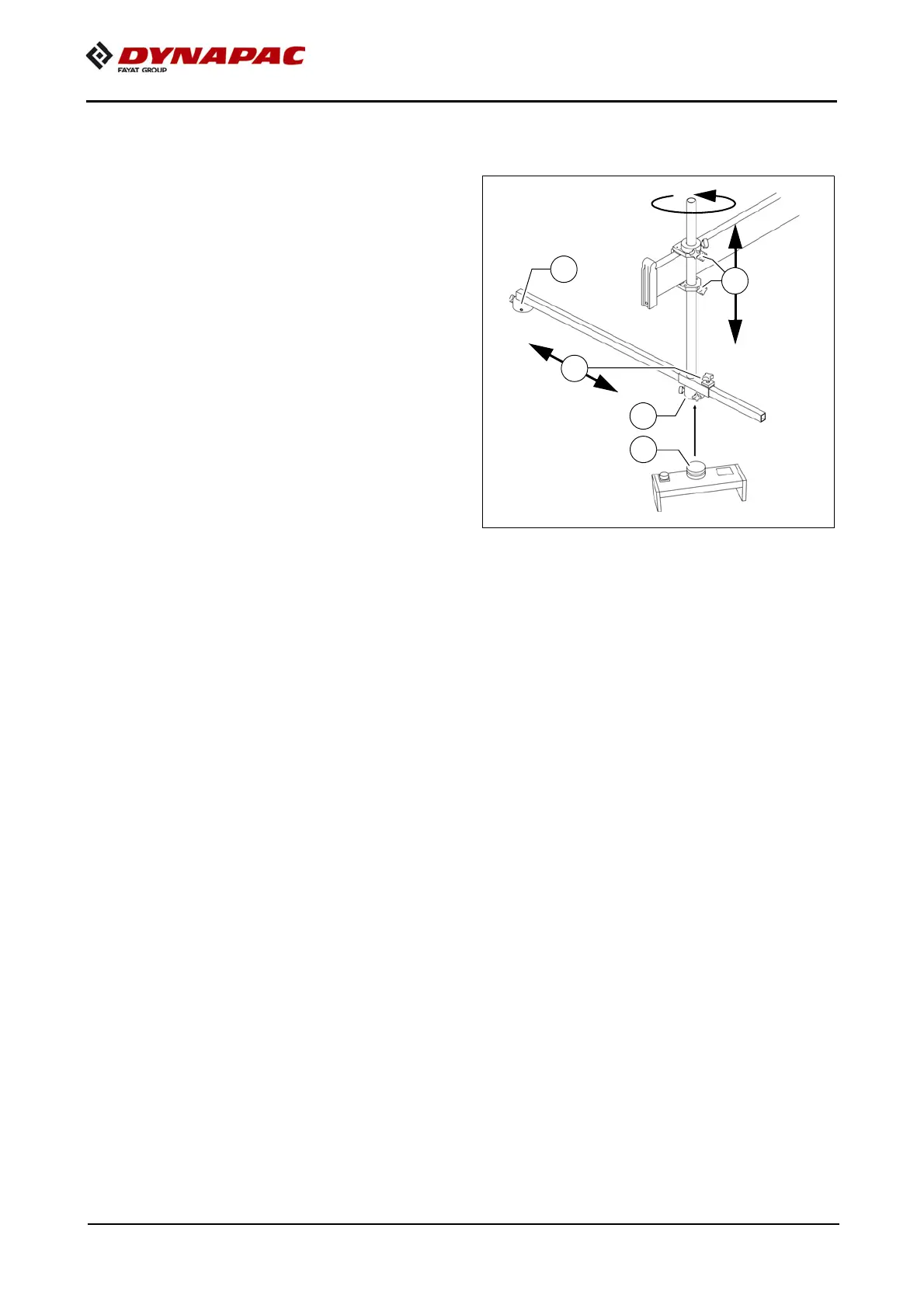

Mounting and aligning the sensors
- Insert the sensor mounting (1) into the
bracket (2).
- Align the sensor and secure with the
relevant star handle bolts.
- The sensing height can be adjusted
by loosening the star handle
bolts (3).
A
At the two outer sensor brackets, the
sensor can also be mounted on the swiv-
elling sensor extension arm (4).
This therefore enables the two outer
sensors to be swivelled during paving for
diverse requirements, e.g. cornering.
- By loosening the star handle bolts
(5), the length of the extension arm
can be adjusted.
- The sensor bracket with extension arm can be swivelled by loosening the star
handle bolts (3).
A
If a sensor extension arm is swivelled to the side, it must be ensured that the attached
sensor is subsequently aligned in the direction of travel.
A
All assembly parts must be mounted and tightened properly to ensure safe and pre-
cise operation of the big ski!
