E 10 40
- Align the shoe to be parallel to the paver across the whole length and not tilted to
the side.
- Fix with bolts (9) at the front.
- Set the spring cotter pin (10) at the back.

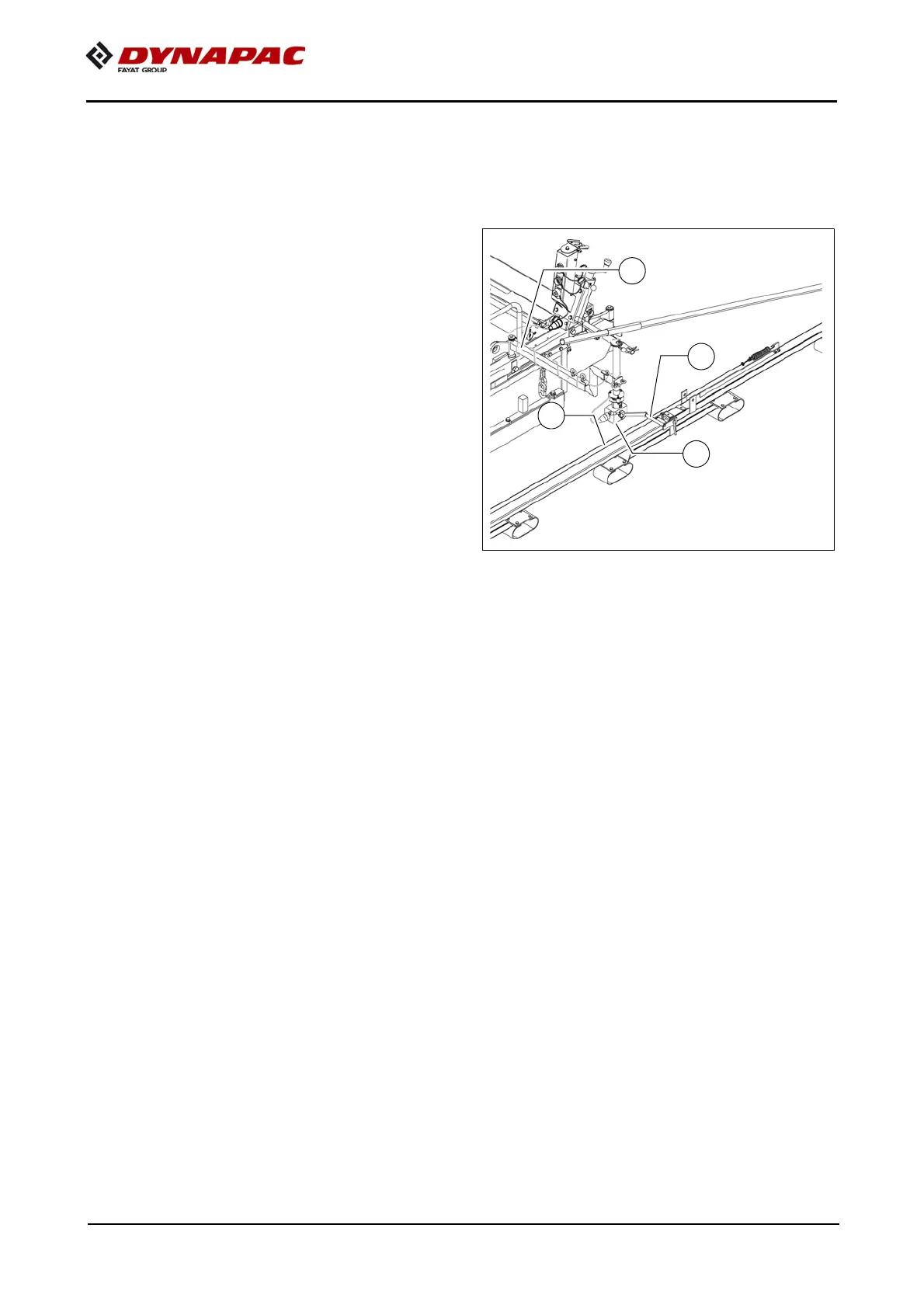

- Insert the sensor (11) in the height
sensing unit (12).
- Set up the height sensing unit so that
the sensing arm (13) lies on the refer-
ence wire (14) in the middle.
A
Tighten the reference wire with the rope
tensioner if too loose.
- Connect the corresponding cable lead
with the provided socket in the remote
control bracket and with the sensor.
m
Route the connection cable so that it
cannot be damaged during operation.
m
Use of the levelling shoe increases the basic width of the paver finisher!
