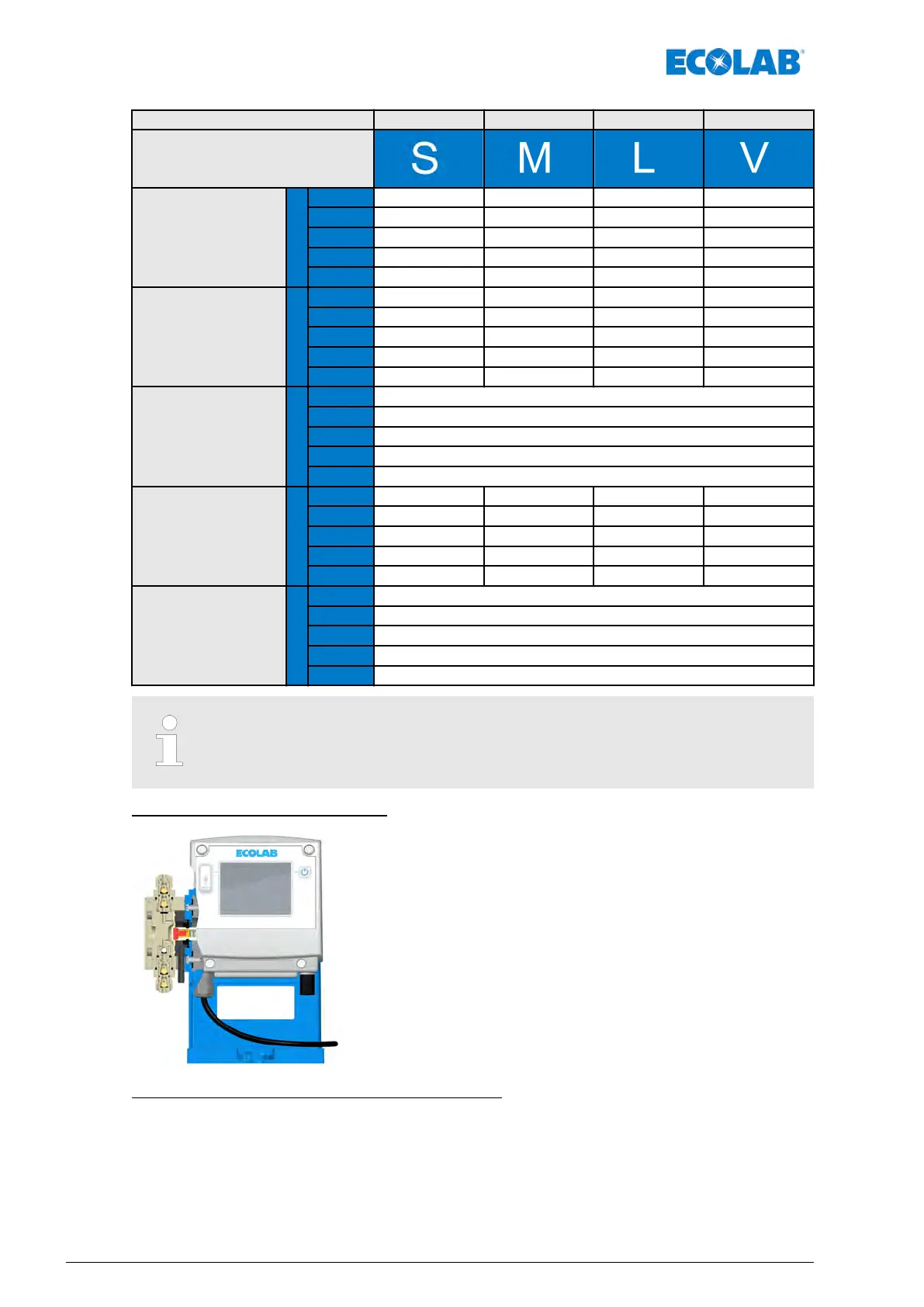

Ecolab EcoAdd Series User Manual

Metering mode standard medium low variable
Display
Metering output
100 %
(V)
Typ:
00510x 5 l/h 4.17 l/h 3.33 l/h 2.5 - 5 l/h
01110S 11.0 l/h 9.17 l/h 7.33 l/h 5.5 - 11,0 l/h
03003S 30 l/h 25 l/h 20 l/h 15 - 30 l/h
05010M 50 l/h 41.7 l/h 33.3 l/h 25 - 50 l/h
12003M 120 l/h 100 l/h 80 l/h 60 - 120 l/h
Max. stroke frequency
at 100%
(¦)
Typ:
00510x 155 / min 141 / min 111 / min 104 - 155 / min
01110S 176 / min 160 / min 126 / min 117 - 176 / min
03003S 155 / min 141 / min 111 / min 104 - 155 / min
05010M 159 / min 145 / min 114 / min 107 - 159 / min
12003M 148 / min 135 / min 106 / min 99 - 148 / min
Stroke volume
(V
h
)
Typ:
00510x 0.53 ml
01110S 1.1 ml
03003S 3.4 ml
05010M 5.8 ml
12003M 13.5 ml
Suction stroke
duration
(S
t
)
Typ:
00510x 190 ms 228 ms 342 ms 380 - 190 ms
01110S 170 ms 204 ms 306 ms 340 - 170 ms
03003S 190 ms 228 ms 342 ms 380 - 190 ms
05010M 185 ms 222 ms 333 ms 370 - 185 ms
12003M 200 ms 240 ms 360 ms 400 - 200 ms
Min. metering stroke
duration
(P
t
)
Typ:
00510x 197 ms
01110S 171 ms
03003S 197 ms
05010M 192 ms
12003M 205 ms
The stroke frequency varies depending on the mode and calibration.
Operating method of the pump:
A low-noise stepper motor moves a metering diaphragm using an
eccentric gear.
With a suction stroke, the return movement of the diaphragm generates
negative pressure and the metering medium is drawn into the pump head
via the suction valve.
With the pressure stroke, the diaphragm is moved forward, creating
positive pressure, and the medium is pressed through the pressure valve
into the metering line.
The delivery rate can be regulated by displaying it. Reducing the rate in
this case means a change in the metering stroke duration. The duration of
the suction stroke remains unchanged. By selecting a different dosage
rate, the suction stroke duration can also be modified for higher
viscosities or challenging suction conditions.
The pumps consist of three main assemblies:
n Housing with driver unit
n Pump head
n Control unit.
Function description
36417102276 Rev. 5-02.2020
