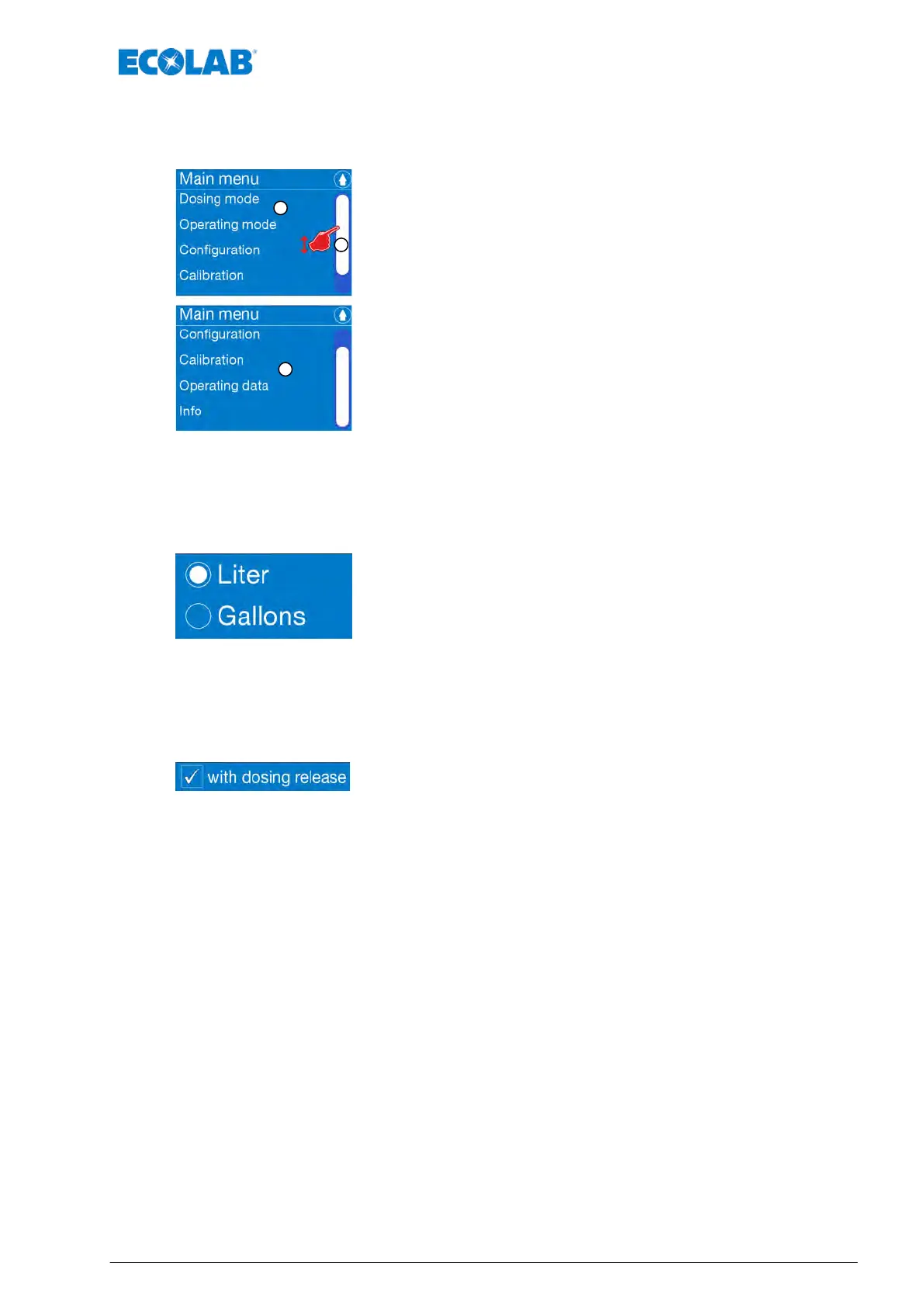

7.3.3 Scrollbars, radio buttons, selection fields, number and text input
Show menu options on subsequent pages with the scroll bar:
Fig. 18: Example: Scrollbars
The scrollbar (white bar, pos. 2) can be moved to call up menu entries that cannot be
displayed on a page.
Radio button:
Fig. 19: Example: Radio button
Various settings can be enabled or reset in radio buttons.
Y
ou can choose between the options “Litres” and “Gallons” in the figure shown above.
Selection field:
Fig. 20: Example: Selection field
Selection boxes can be used to make a specific selection with effects on the remaining
control of the pump.
Control / Software
67 417102276 Rev. 5-02.2020
