13.1.2 Change from stand mounting to wall mounting
T
o be able to adapt the pump to the local conditions, it is possible to use the pump
“upright” (stand mounting) or “suspended” (wall mounting).

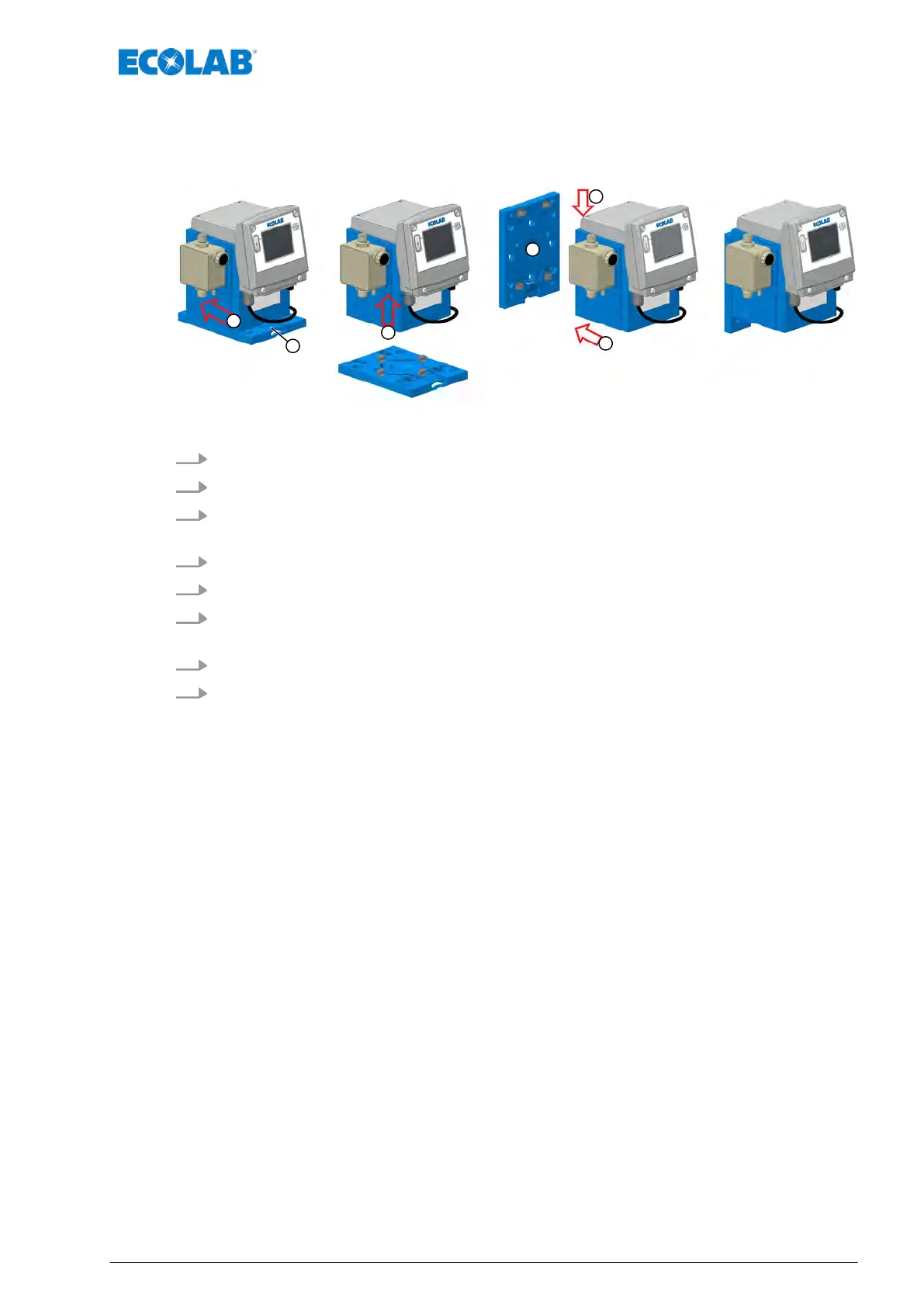

Fig. 105: Change from stand mounting (upright, e.g. floor, bracket or canister) to wall mounting (hanging).
1. Remove the connector lines as far as necessary (hydraulically and electrically).
2. Press the fixing bracket on the mounting plate down to release the lock on the pump.
3. Move the pump on the mounting plate back until the fastening elements from the
pump base engage into position.
4. Remove the pump from the mounting plate by lifting upwards.
5. Fit the mounting plate on the wall.
6. Place the pump on the mounting plate from above so that the fastening elements on
the mounting place engage in the recesses on the side of the pump.
7. Push the pump downwards onto the fastening elements until they audibly engage.
8. Attach the connecting lines (hydraulic and electric):
Ä
Chapter 6.3 ‘Hydraulic Installation’ on page 47
Ä
Chapter 6.4 ‘Electrical installation’ on page 56.
Conversion, upgrade, repair
177 417102276 Rev. 5-02.2020
