7.10.14.1 [Oval gear meter]
- setting.

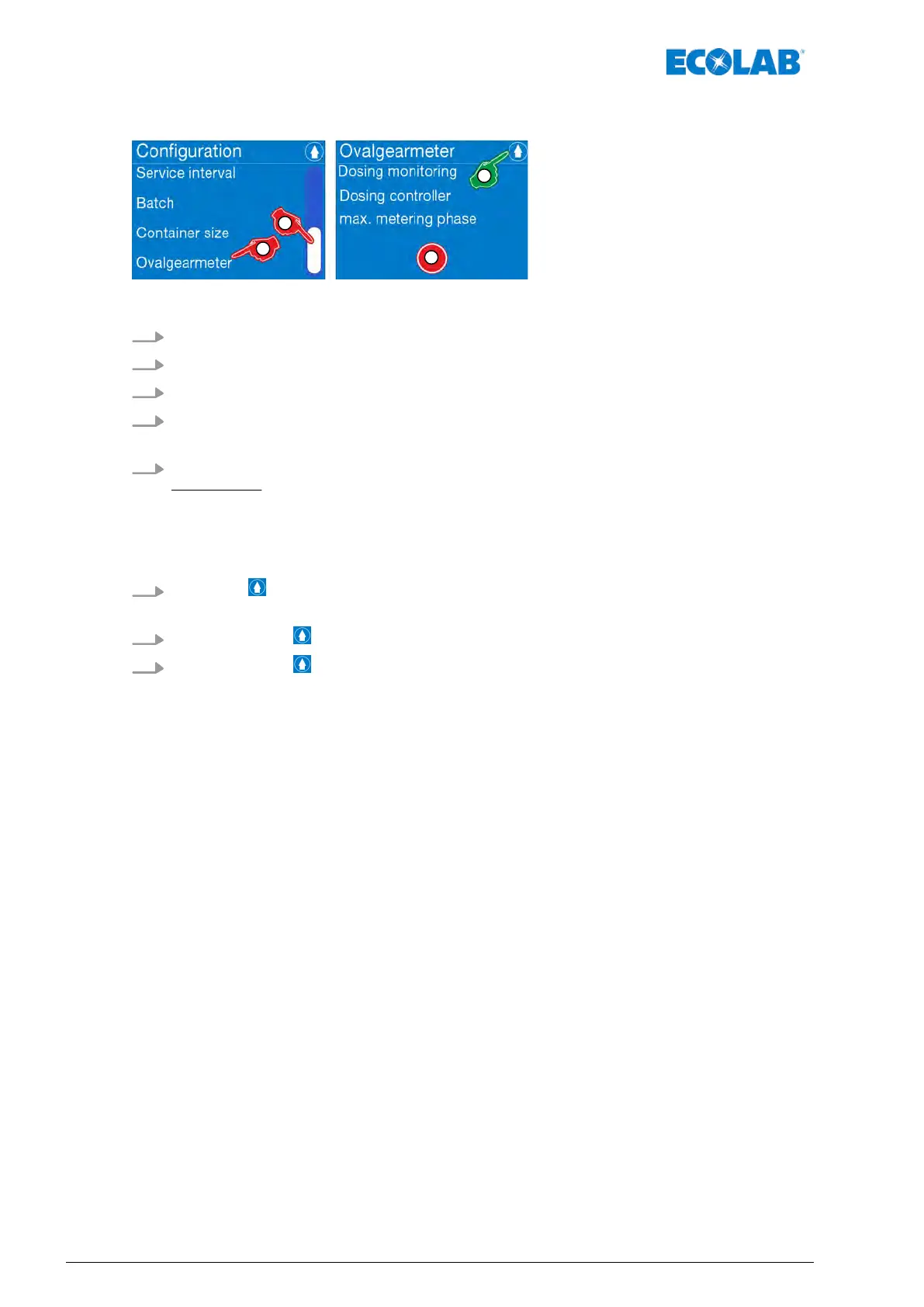

Fig. 70: ‘Configuration’ ‘Oval gear meter’
1.
[Call up the Main menu] :
Ä
Chapter 7.7 ‘Main menu’ on page 73
2.
[Select Configuration] :
Ä
Chapter 7.10 ‘Overview - Configuration’ on page 92
3. Use the scrollbar to scroll to the [menu item Oval gear meter] .
4. [Select Oval gear meter] .
ð
Screen change for the setting: [Oval gear meter]
5. [Select Oval gear meter] .
Selectable:
Ä
Chapter 7.10.14.1.1 ‘Metering monitoring’ on page 121
Ä
Chapter 7.10.14.1.2 ‘Metering controller’ on page 122
Ä
Chapter 7.10.14.1.3 ‘Maximum metering phase’ on page 123
ð
Screen change for the setting: [Oval gear meter]
6.
Press the
button.
ð
The setting is saved, and the screen switches back to the configuration overview
.
7.
By pressing the button, you can return to the [main menu].
8.
By pressing the button, you can return to the [operating display].
Control / Software
120417102276 Rev. 5-02.2020
