Ecolab EcoAdd Series - Input with Floating Contact; Input with Electronic Switch (NPN); Control] Control Input

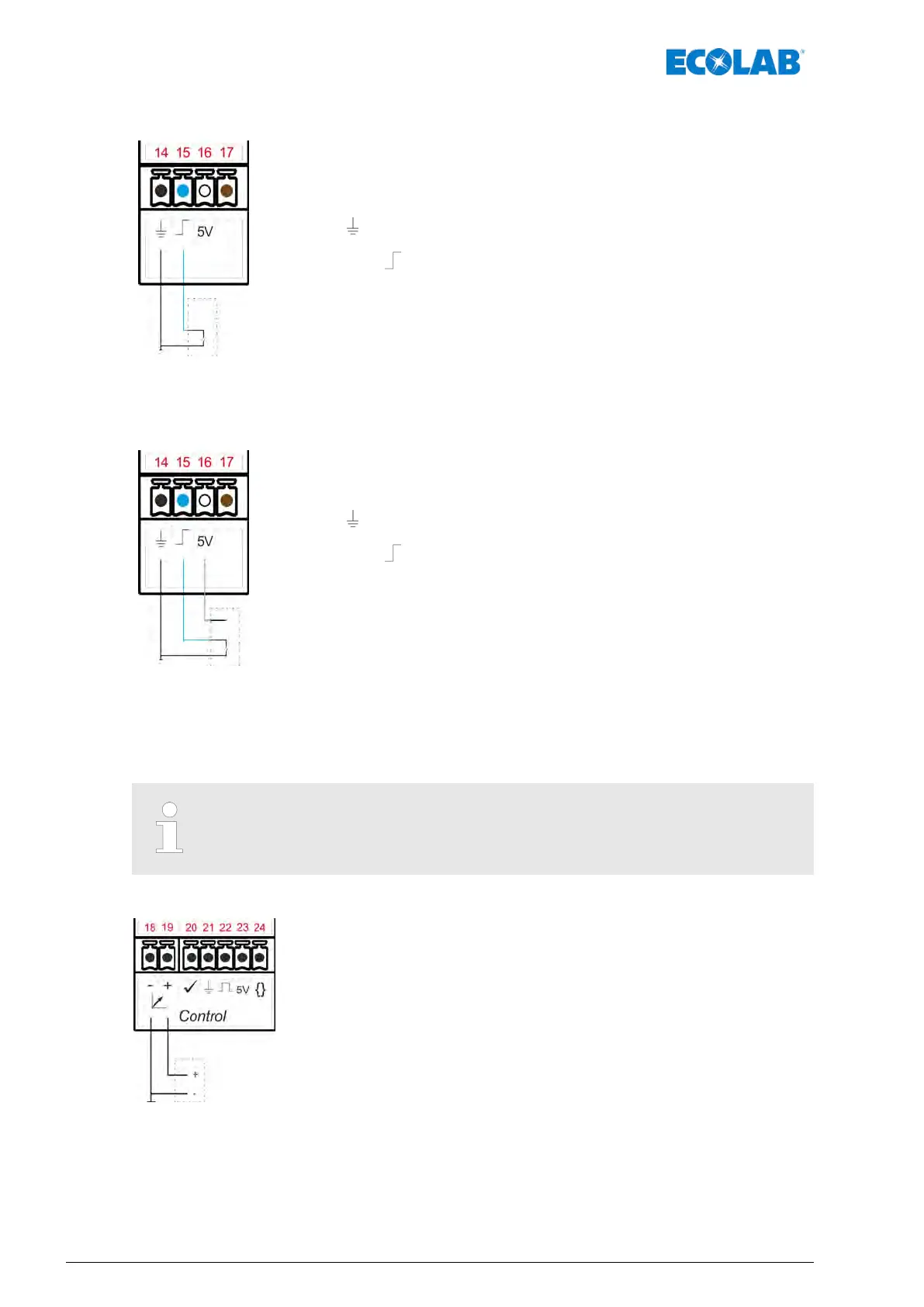

6.4.7.1 Input with floating contact
n 14 GND
Colour: Black
n 15 Diaphragm
Colour: Blue
6.4.7.2 Input with electronic switch (NPN)
n 14 GND
Colour: Black
n 15 Diaphragm
Colour: Blue
n 16 5 V
, DC
Colour: White
6.4.8 [Control] Control input
6.4.8.1
standard signal input [Operating mode] / [Current]
For the software-side configuration, see
Ä Chapter 7.9.4 ‘[Operating mode] [Current]’ on page 87
18 = Standard signal mA (-)
Colour:
19 = Standard signal mA (+)
Colour:
Mounting and installation
60417102276 Rev. 5-02.2020
